CABIN
B2050, B2350, B2650, B3150, WSM
10-M12
4. ELECTRICAL SYSTEM

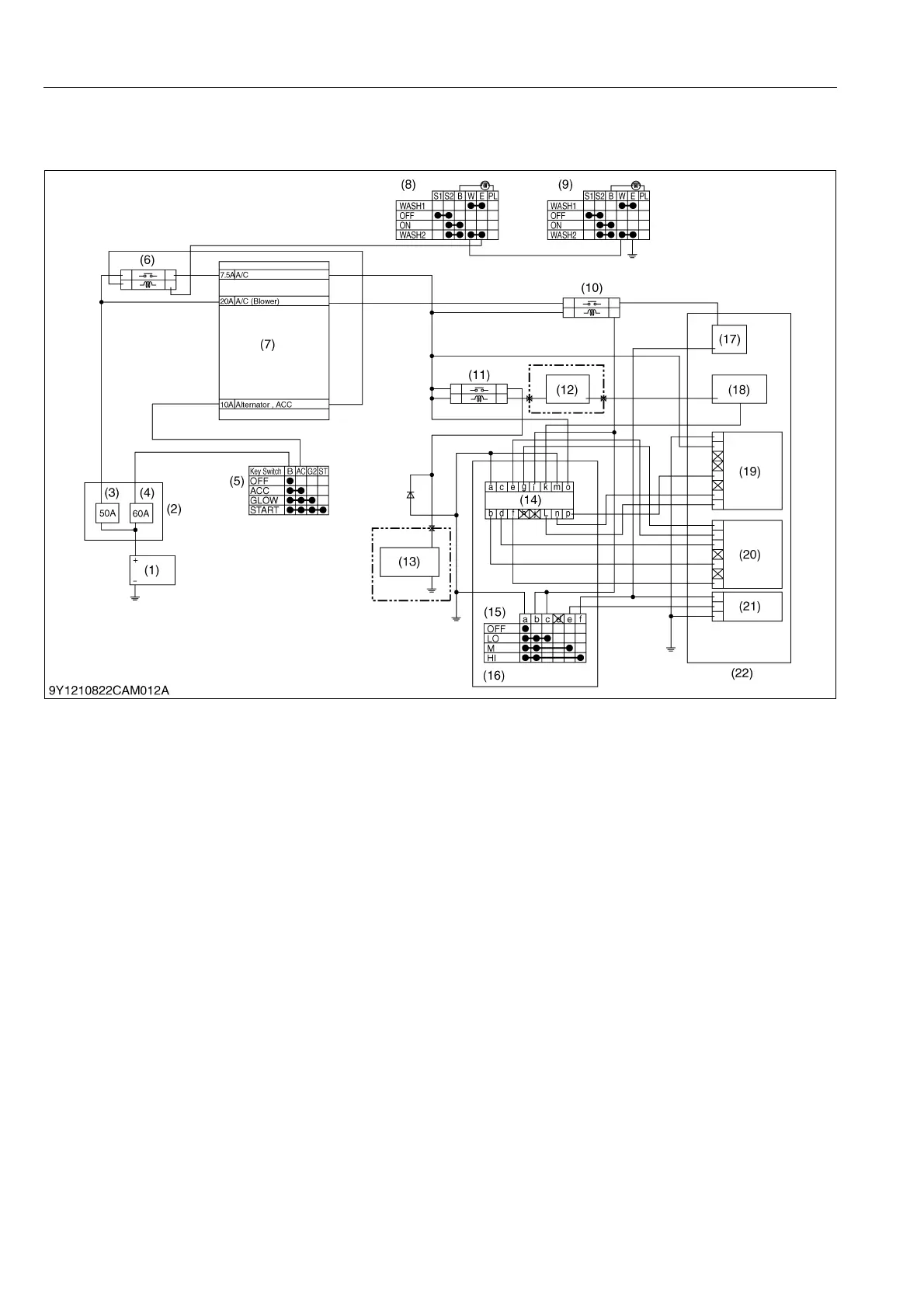

[1] ELECTRICAL CIRCUIT
9Y1210982CAM0017US0
(1) Battery
(2) Slow Blow Fuse
(3) For CABIN Line
(4) For Main Line
(5) Main Switch
(6) ACC Relay
(7) Fuse
(8) Front Wiper Switch
(9) Rear Wiper Switch
(10) Blower Relay
(11) Compressor Relay
(12) Pressure Switch
(13) Compressor
(14) A/C Control Amplifter
(15) Blower Switch
(16) A/C Control Panel
(17) Blower Motor
(18) Thermostat
(19) Mode Switch Servo Motor
(20) Thermostatic Servo Motor
(21) Blower Resistor
(22) A/C Unit
