CABIN
B2050, B2350, B2650, B3150, WSM
10-S29

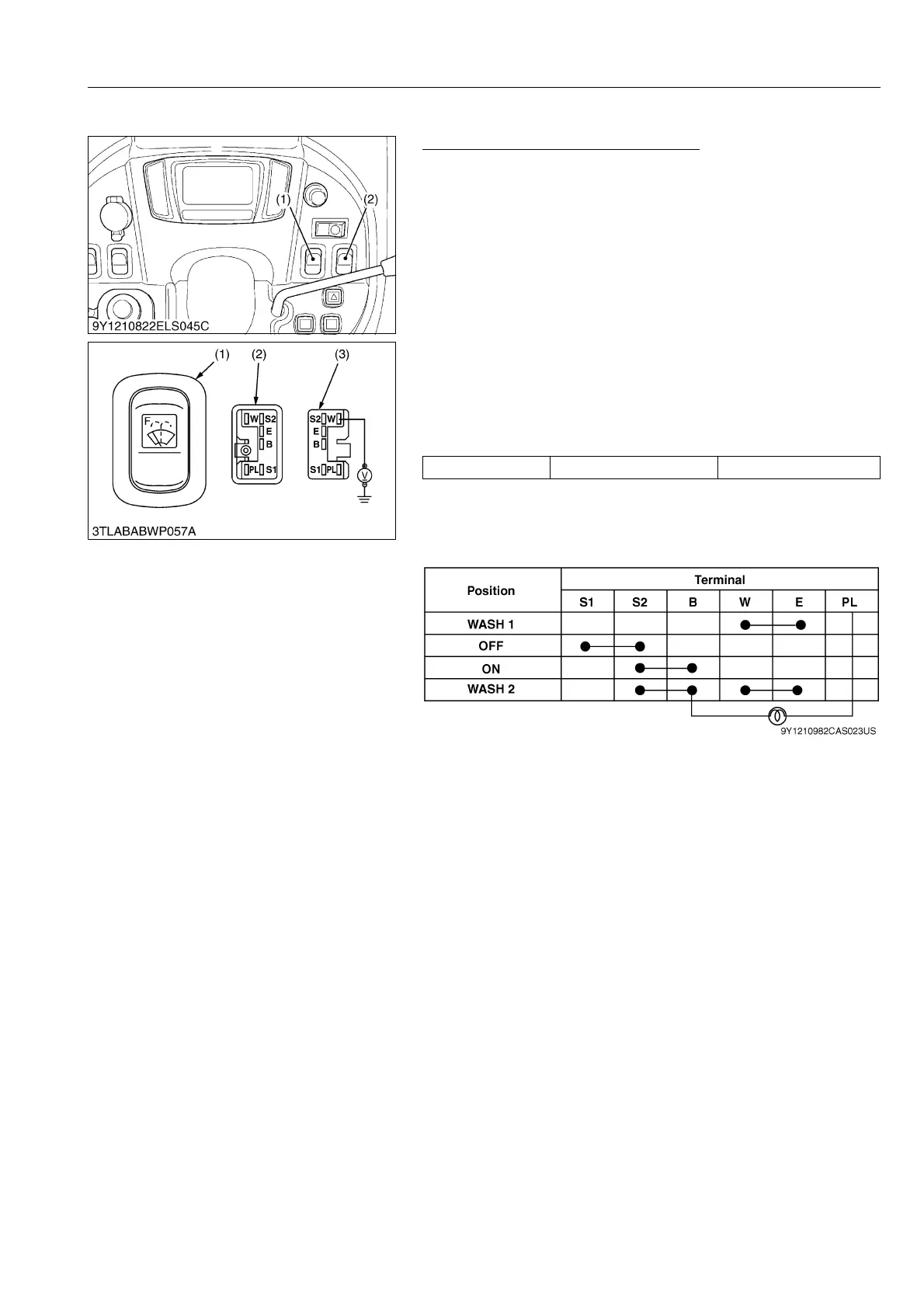

(9) Wiper Switch
Front and Rear Wiper (Option) Switch
1. Remove the panel under cover and meter panel.
2. Disconnect the front switch connector.
3. Perform the following checkings 1) and 2).
9Y1210982CAS0049US0
1) Connector Voltage
1. Turn the main switch "ON".
2. Measure the voltage with a voltmeter across the connector W
terminal and chassis.
3. If the voltage differs from the battery voltage, the wiring harness,
fuse or main switch is damaged.
2) Front and Rear Wiper Switch
1. Check the continuity through the switch with an ohmmeter.
2. If continuity specified below is not indicated, the switch is
damaged.
(Reference)
• WASH I : "OFF" side of the wiper switch remains pushed in.
• WASH II : "ON" side remains pushed in after the wiper switch
is switched "ON" and remains switched "ON".
• B : Earth terminal
• PL : To combination switch
9Y1210982CAS0050US0
(1) Front Wiper Switch (2) Rear Wiper Switch
Voltage W terminal – Chassis Approx. battery voltage
(1) Front and Rear Wiper Switch
(2) Wiper Switch Connector (Switch
Side)
(3) Wiper Switch Connector (Wiring
Harness Side)
To Next Page
