GENERAL
B2050, B2350, B2650, B3150, WSM
G-57
[2] WHEEL ADJUSTMENT
To avoid personal injury or death:
• When working on slopes or when working with trailer, set the wheel tread as wide as practical for
maximum stability.
• Support tractor securely on stands before removing a wheel.
• Do not work under any hydraulically supported devices. They can settle, suddenly leak down, or be
accidentally lowered. If necessary to work under tractor or any machine elements for servicing or
adjustment, securely support them with stands or suitable blocking beforehand.
• Never operate tractor with a loose rim, wheel, or axle.
9Y1210982GEG0085US0
(1) Front Wheels
Front Wheels
Front tread width can not be adjusted.
• Do not turn front discs to obtain wider tread. In setting up
the front wheels, make sure that the inflation valve stem of
the tires face outward.
• When re-fitting or adjusting a wheel, tighten the bolts to the
following torques then recheck after driving the tractor
200 m (200 yards) and 10 times of shuttle movement by 5 m
(5 yards), and thereafter according to service interval. (See
"MAINTENANCE" section.)
To avoid personal injury or death:
• Before jacking up the tractor, park it on a firm and level
ground and chock the rear wheels.
• Fix the front axle to keep it from swinging.
• Select jacks that withstand the machine weight and set
them up as shown below.
9Y1210982GEG0086US0

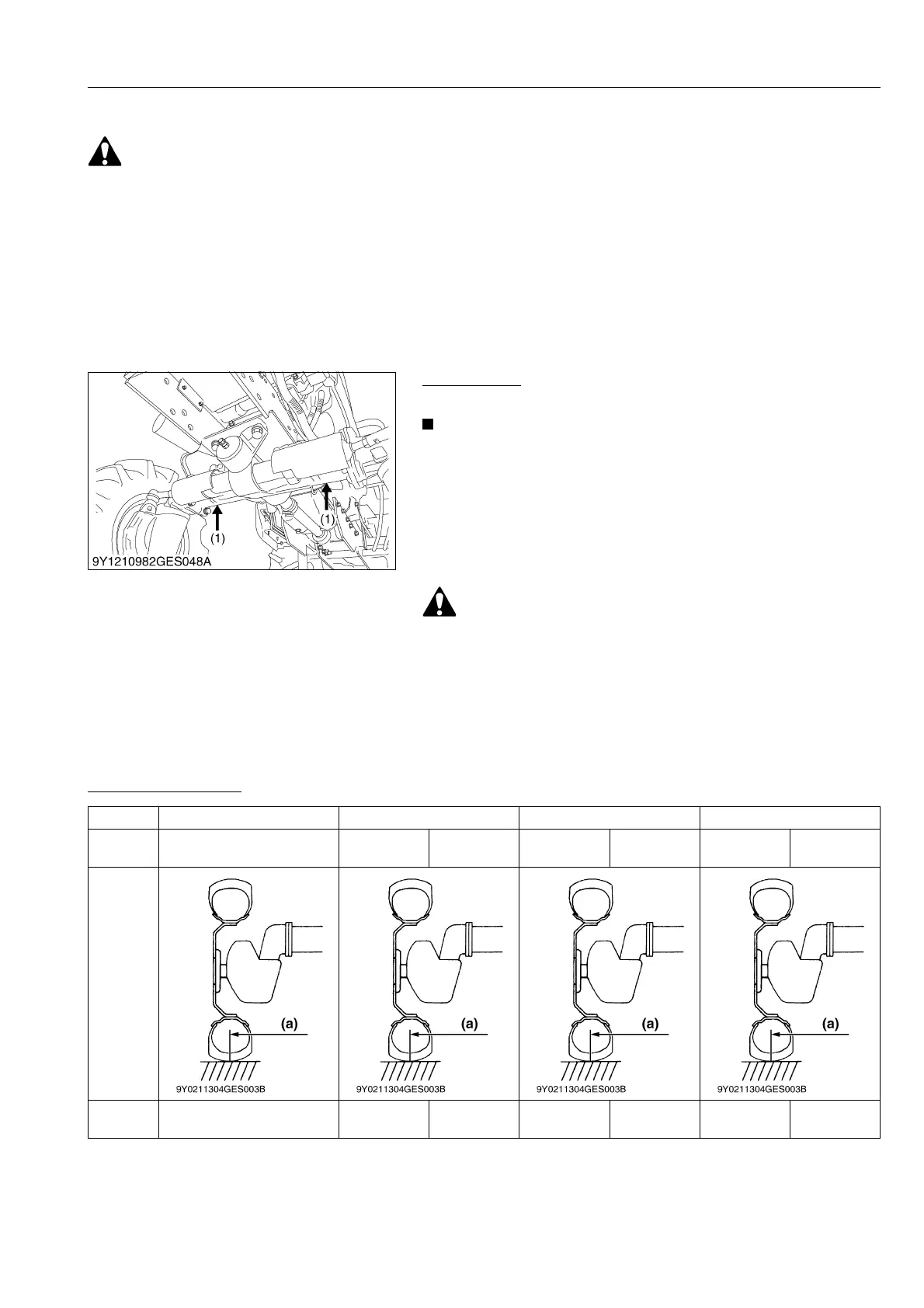

Front Wheels Treads
9Y1210982GEG0087US0
(1) Jack Point
Model B2050, B2350, B2650 B2050, B2350, B2650 B2050, B2350, B2650 B3150
Tires 6-12B Farm 6.00-12 Farm 6-12 Farm
24 x 8.50-12
Turf
22 x 8.50-12
Turf
180/85D12
Farm
24 x 8.50-12
Turf
Tread 832 mm (32.8 in.)
830 mm
(32.7 in.)
832 mm
(32.8 in.)
871 mm
(34.3 in.)
873 mm
(34.4 in.)
936 mm
(36.8 in.)
971 mm
(38.2 in.)
