ELECTRICAL SYSTEM
B2050, B2350, B2650, B3150, WSM
9-M17

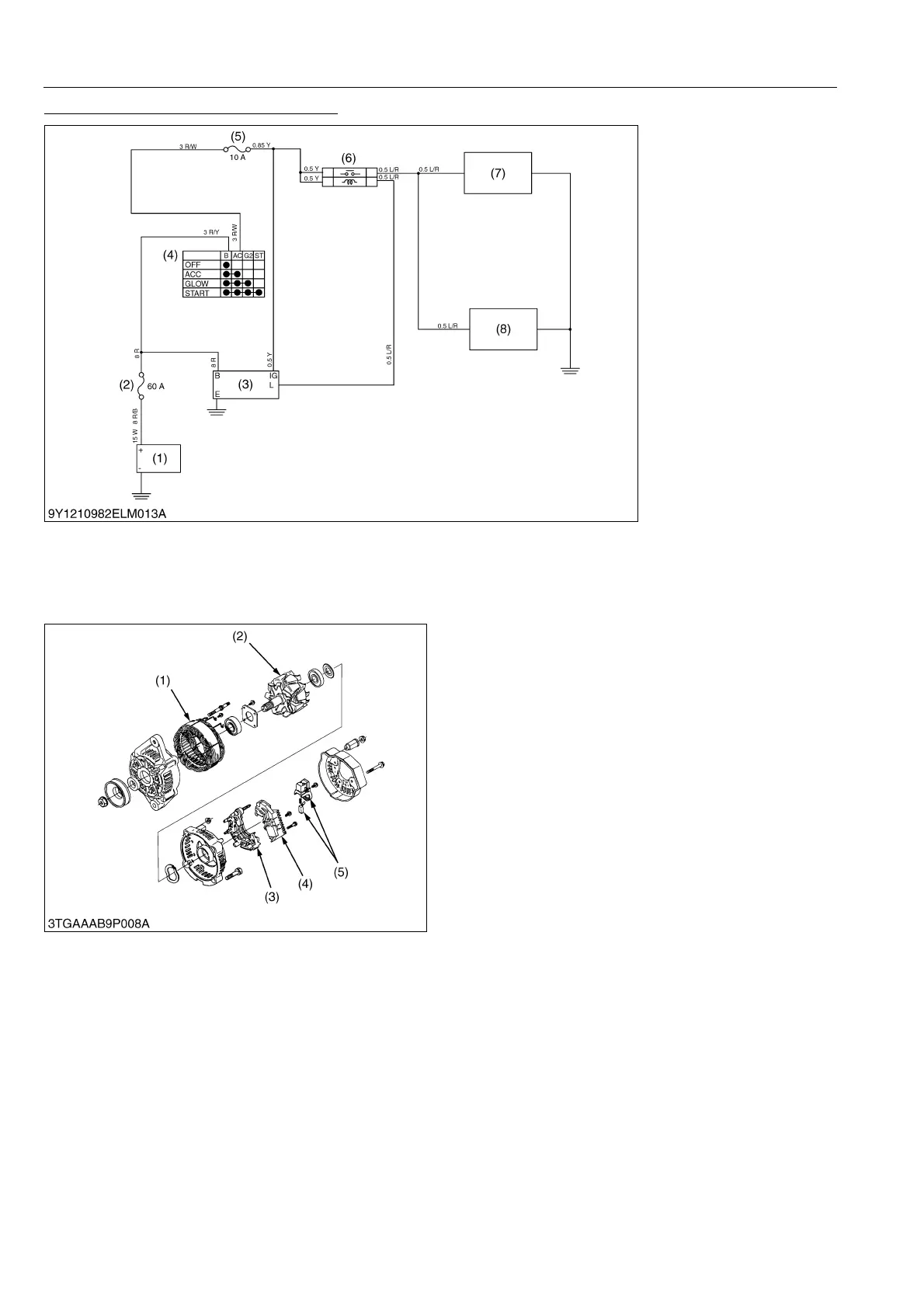

Charging System Circuit (CABIN Model)
The charging system supplies electric power for various electrical devices and also charges the battery while the
engine operates.
9Y1210982ELM0023US0
[1] ALTERNATOR
A compact alternator with an IC regulator is used,
having the following characteristics:
• Approximately 26 % lighter and 17 % smaller than a
standard alternator.
• Cooling performance and safety have been
improved by combining the cooling fan with the rotor
and incorporating the fan / rotor unit inside the
alternator.
• IC regulator is fitted inside the alternator.
• The rectifier, IC regulator and similar components
are easy to remove, making it easier to service the
alternator.
9Y1210982ELM0024US0
(1) Battery
(2) Slow Blow Fuse (Main)
(3) Alternator
(4) Key Switch
(5) Fuse (Alternator / ACC
Relay)
(6) Relay (Charge)
(7) Instrument Panel
(8) OPC Controller
(1) Stator
(2) Rotor
(3) Rectifier
(4) IC Regulator
(5) Brush Holder
To Next Page
