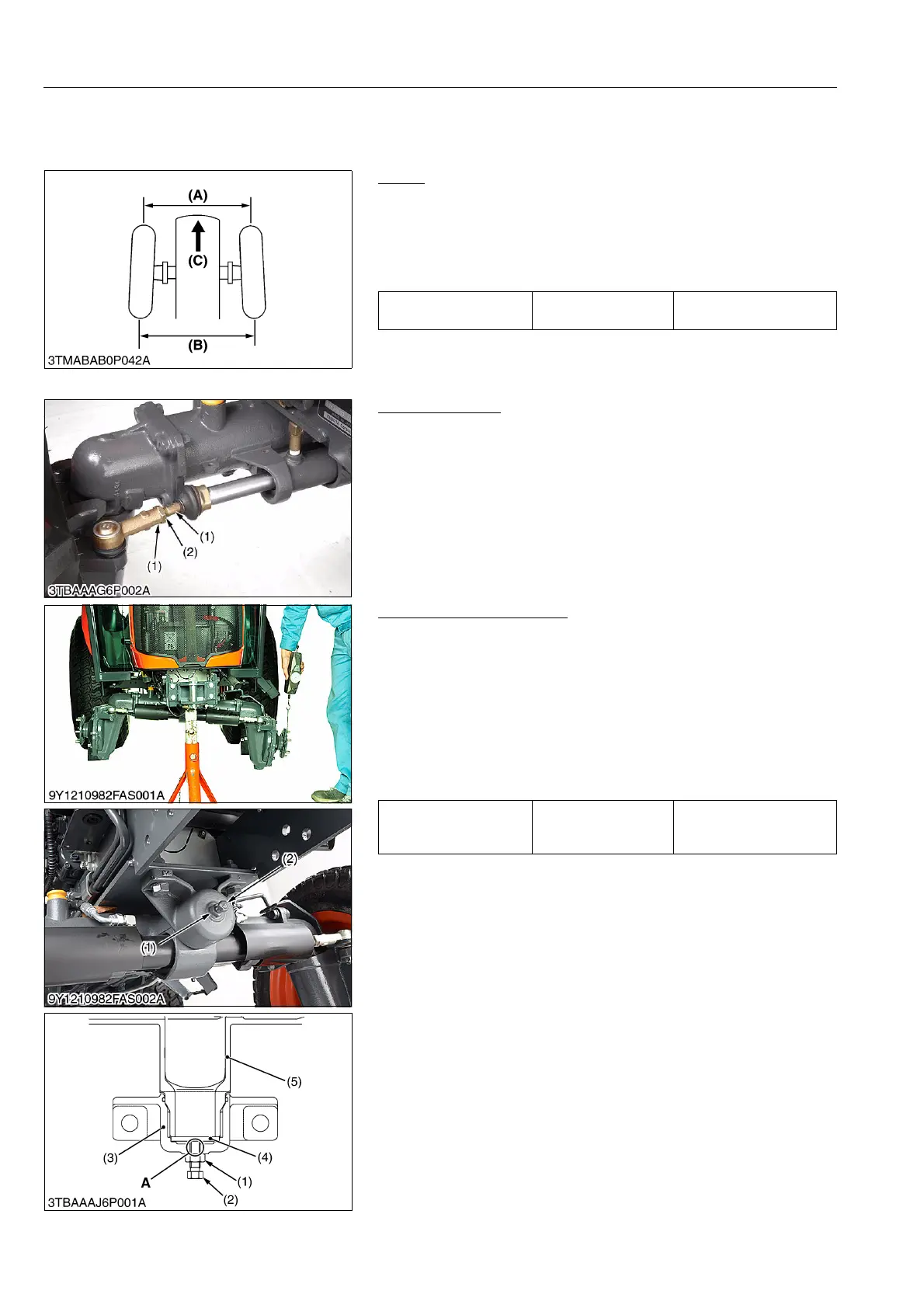

FRONT AXLE
B2050, B2350, B2650, B3150, WSM
6-S4
4. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING AND ADJUSTING
Toe-in
1. Inflate the tires to the specified pressure.
2. Turn the front wheels straight ahead.
3. Measure the toe-in ((B) - (A)).
4. If the measurement is not within the factory specifications,
adjust the tie-rod length.
9Y1210982FAS0004US0
Toe-in Adjusting
1. Loosen the lock nut (2).
2. Turn the tie-rod end (1) to adjust the rod length until the proper
toe-in measurement is obtained.
3. Retighten the lock nut (2).
9Y1210982FAS0005US0
Front Axle Rocking Force
1. Jack up the front side of tractor.
2. Set a spring balance to the front axle flange.
3. Measure the front axle rocking force.
4. If the measurement is not within the factory specifications,
adjust with the adjusting screw (2). After applying liquid gasket
(Three Bond 1206D or equivalent) to the thread portion of the
adjusting screw (2) to prevent front axle oil from leaking out of
the front axle holder (3).
5. Tighten the lock nut (1) firmly.
9Y1210982FAS0006US0
Toe-in (B) - (A) Factory specification
0 to 10 mm
0 to 0.39 in.
(A) Wheel to Wheel Distance at front
(B) Wheel to Wheel Distance at rear
(C) Front
(1) Tie-rod End (2) Lock Nut
Front axle rocking force Factory specification
50.0 to 100.0 N
5.1 to 10.2 kgf
12.8 to 22.4 lbf
(1) Lock Nut
(2) Adjusting Screw
(3) Holder
(4) Thrust Collar
(5) Front Axle Case
A: Thread Portion
