TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-M40
(Continued)
9Y1210982TRM0039US0
[2] REAR PTO SECTION
When the PTO shift lever is set to "Rear PTO"
position (R), the PTO shifter (6) slides to "Rear PTO"
position (R).
The PTO shifter (6) meshes to the spline of the PTO
clutch shaft (8).
The power is transmitted from the first shift shaft (1)
to the PTO clutch shaft (8) as follows.
First shift shaft (1)  One-way clutch cam (2) 
One-way clutch spline boss (3)  shifter (PTO ON/OFF)
(4)  PTO brake spline boss (5)  PTO shifter (6) 
PTO clutch shaft (8).
9Y1210982TRM0040US0

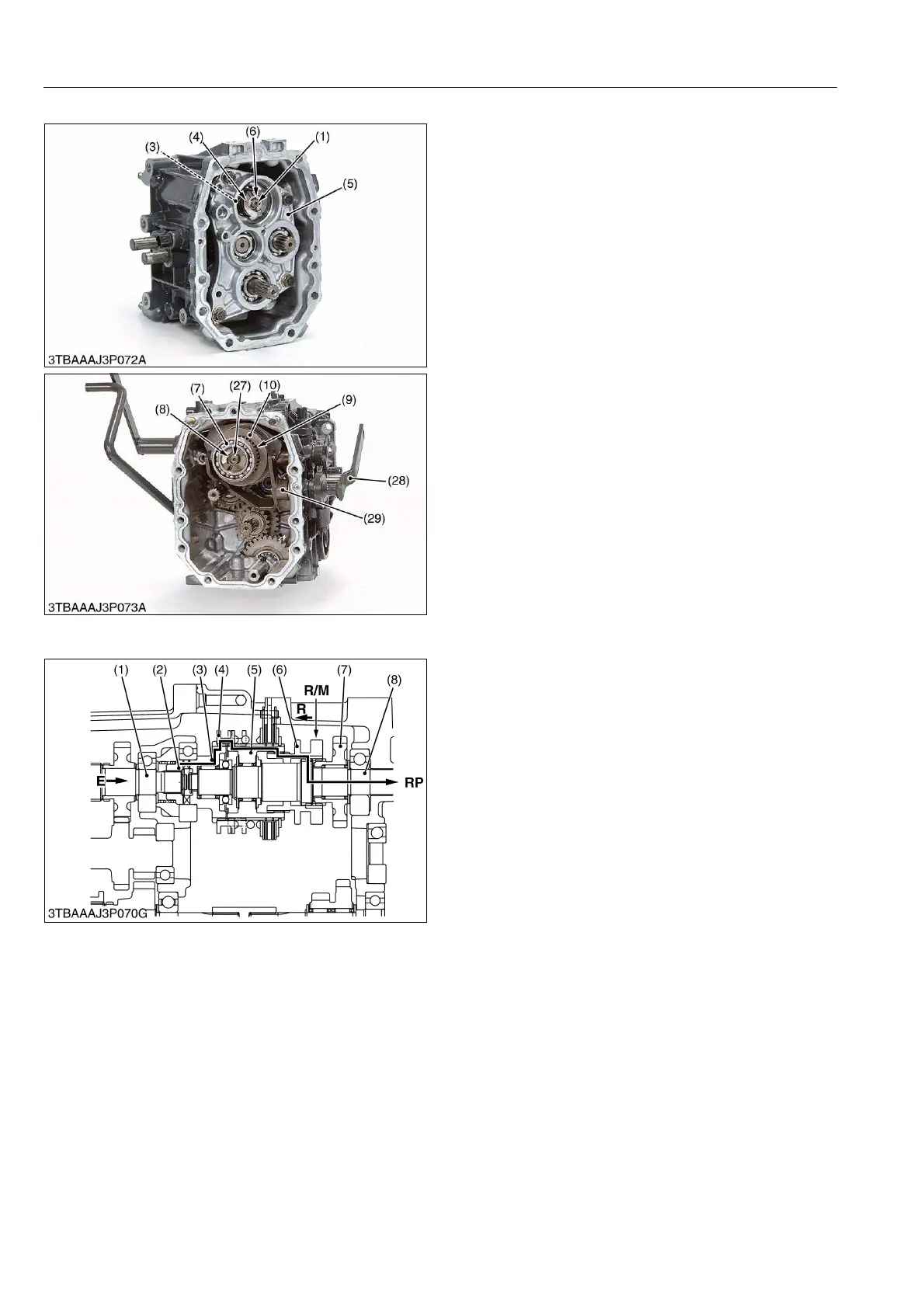

(1) First Shift Shaft
(3) Overrunning Clutch Spring
(4) One-way Clutch Cam
(5) Bearing Holder
(6) Cir-clip
(7) Ball Bearing
(8) Cir-clip
(9) One-way Clutch Spline Boss
(10) Shifter (PTO ON/OFF)
(27) PTO Clutch Shaft
(28) PTO ON/OFF Shift Lever
(29) PTO ON/OFF Shift Folk
(1) First Shift Shaft
(2) One-way Clutch Cam
(3) One-way Clutch Spline Boss
(4) Shifter (PTO ON/OFF)
(5) PTO Brake Spline Boss
(6) PTO Shifter
(7) 26T Mid Gear
(8) PTO Clutch Shaft
E: Power from Engine
R: REAR PTO Position
R/M: REAR PTO / MID PTO
Position
RP: Power to Rear PTO Shaft
