CLUTCH
B2050, B2350, B2650, B3150, WSM
2-S5

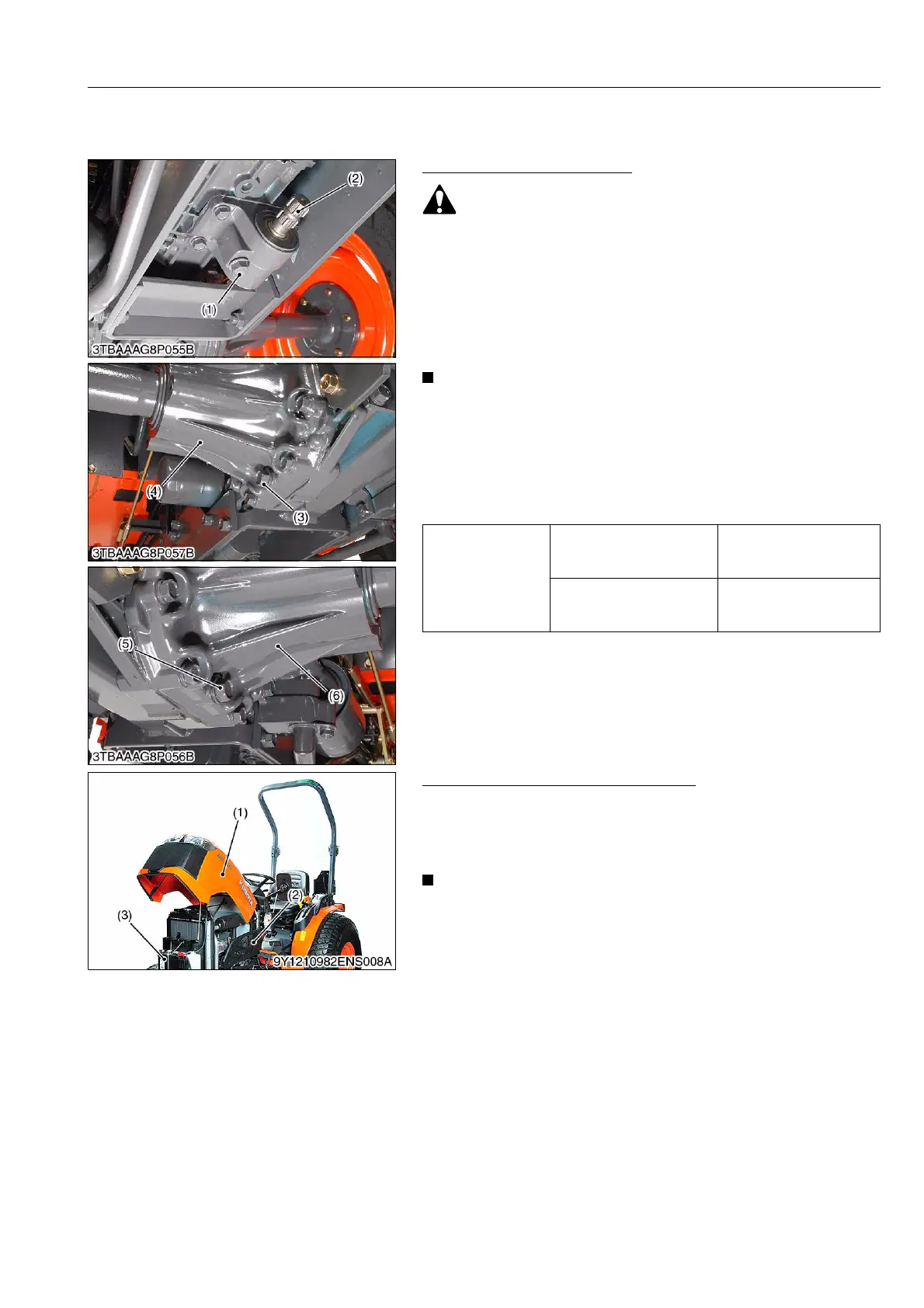

[2] DISASSEMBLING AND ASSEMBLING
(1) Separating Engine From Clutch housing
Draining Transmission Fluid
• Stop the engine before checking and changing the
transmission fluid.
1. Place the oil pan under the tractor.
2. Remove the drain plugs (1), (3), (5) at the mid-PTO shaft and at
the bottom of the rear axle cases (4), (6).
3. Drain the transmission fluid.
4. After draining the transmission fluid, reinstall the drain plugs (1),
(3), (5).
• Use only KUBOTA UDT oil. Use of other oils may damage
the transmission or hydraulic system.
Refer to G-8.
• Never work the tractor immediately after changing the
transmission oil. Keep the engine at medium speed for a
few minutes to prevents damage to the transmission.
• Do not mix different brands oil together.
9Y1210982ENS0024US0
Bonnet, Side Cover and Battery Cord
1. Open the bonnet (1).
2. Disconnect the battery negative cord.
3. Disconnect the head light connectors and remove the bonnet
(1) side covers (2).
• When disconnecting the battery cords, disconnect the
grounding cord first. When connecting, positive cord first.
9Y1210982CLS0006US0
Transmission fluid
capacity
B2050, B2350, B2650
Manual transmission
16.5 L
4.4 U.S.gals
3.6 Imp.gals
B2350HST
B2650HST
B3150HST
17 L
4.5 U.S.gals
3.7 Imp.gals
(1) Drain Plug
(2) Mid-PTO Shaft
(3) Drain Plug
(4) Rear Axle Case (L.H.)
(5) Drain Plug
(6) Rear Axle Case (R.H.)
(1) Bonnet
(2) Side Cover
(3) Battery
To Next Page
