BRAKES
B2050, B2350, B2650, B3150, WSM
5-S7

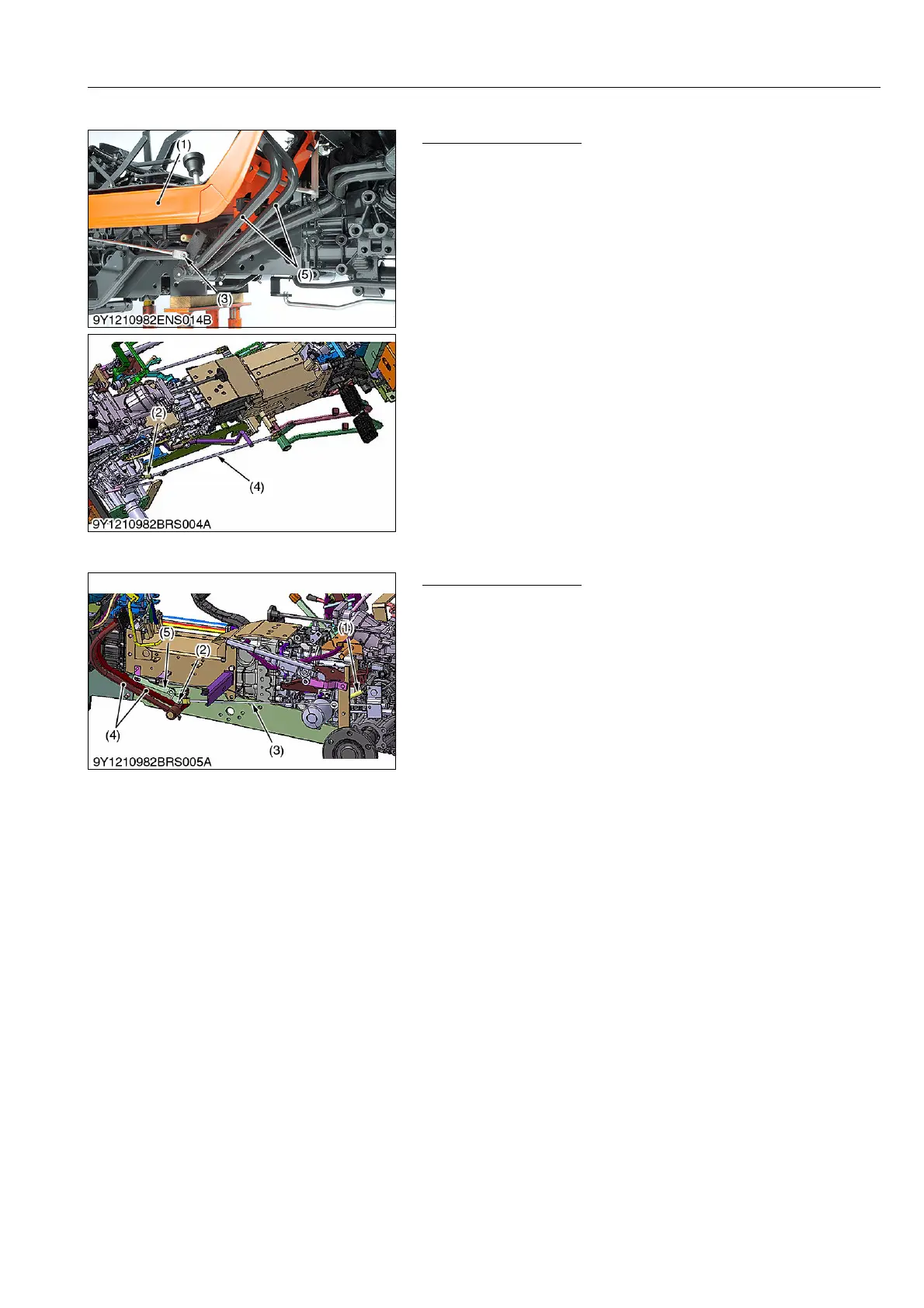

(2) Brake Pedal (ROPS Manual Transmission Model)
Brake Pedal and Step
1. Remove the right side step (1).
2. Remove the return spring (2).
3. Remove the pin (3) and disconnect brake rod (4) from brake
pedal (5).
4. Remove the brake pedal (5).
(When reassembling)
• Apply grease to the brake pedal shaft.
• Be sure to adjust the brake pedal free travel and parking brake
lever travel.
9Y1210982BRS0022US0
(3) Brake Pedal (ROPS HST Model)
Brake Pedal and Step
1. Remove the left side step.
2. Remove the return spring (1).
3. Remove the pin (2) and disconnect brake rod (3) from brake
pedal (4).
4. Disconnect lever (5) from brake pedal (4).
5. Remove the brake pedal (4).
(When reassembling)
• Apply grease to the brake pedal shaft.
• Be sure to adjust the brake pedal free travel and parking brake
lever travel.
9Y1210982BRS0023US0
(1) Step
(2) Return Spring
(3) Pin
(4) Brake Rod
(5) Brake Pedal
(1) Return Spring
(2) Pin
(3) Brake Rod
(4) Brake Pedal
(5) Lever
