ELECTRICAL SYSTEM
B2050, B2350, B2650, B3150, WSM
9-M12

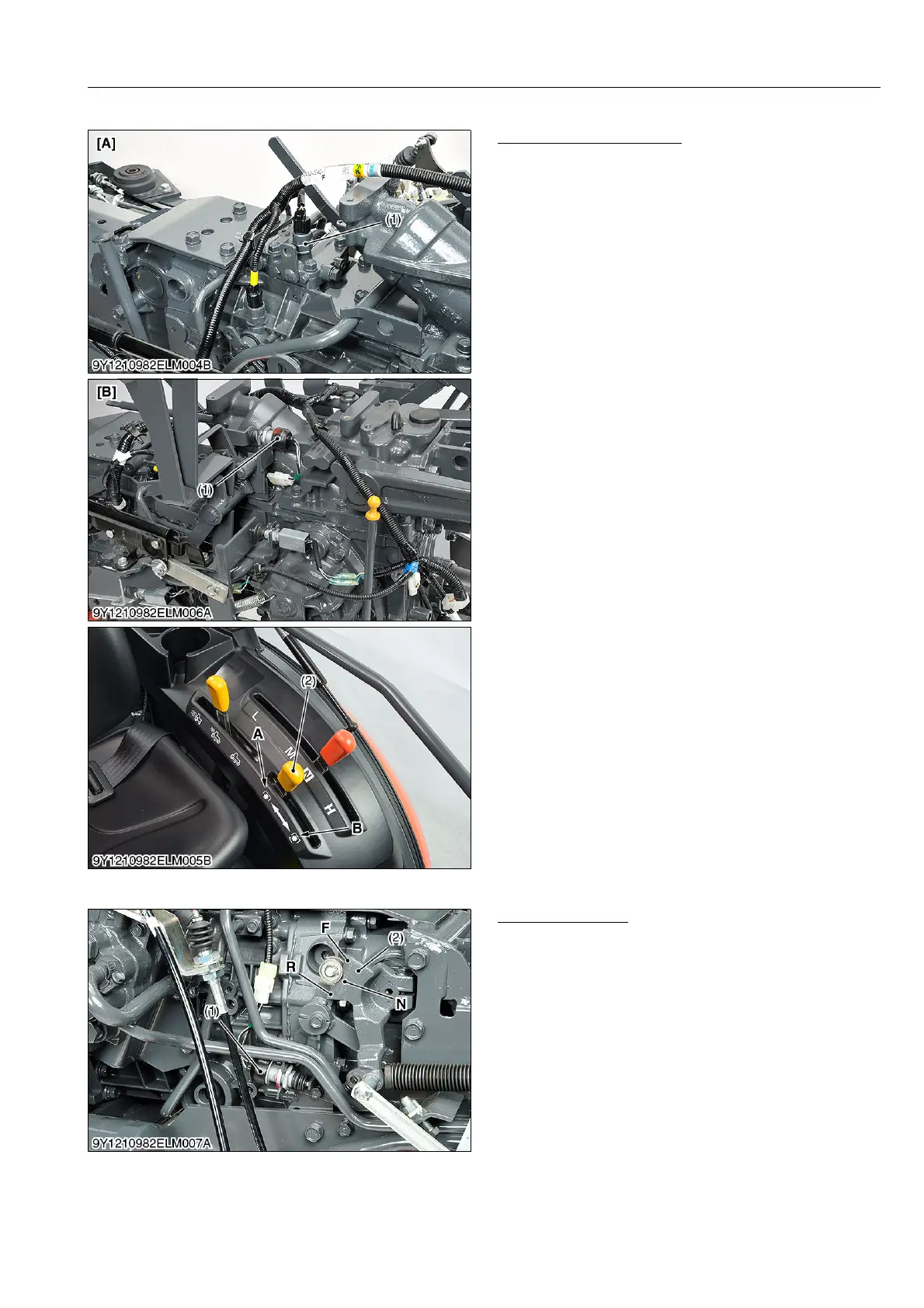

(2) PTO Clutch Lever Switch
PTO Clutch Lever Switch
This switch is a push type.
This switch detects the PTO clutch engagement.
When the PTO clutch lever is set to
"DISENGAGED" position, this switch is turned to "ON".
When the PTO clutch lever is set to "ENGAGED"
position, this switch is turned to "OFF".
9Y1210982ELM0014US0
(3) HST Pedal Switch (HST Model)
HST Pedal Switch
This switch located at the neutral switch stay.
This switch is a push type.
This switch detects the position of the HST pedal.
When HST pedal is at "NEUTRAL" position, this
switch is turned to "ON".
When HST pedal is at "FORWARD" or "REVERSE"
position, this switch is turned to "OFF".
9Y1210982ELM0015US0
(1) PTO Clutch Lever Switch
(2) PTO Clutch Lever
A: "DISENGAGED" Position
B: "ENGAGED" Position
[A] HST Model
[B] Manual Transmission
Model
(1) HST Pedal Switch
(2) Neutral Holder
F: FORWARD
N: NEUTRAL
R: REVERSE
To Next Page
