TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-S48
4WD Shaft Arm

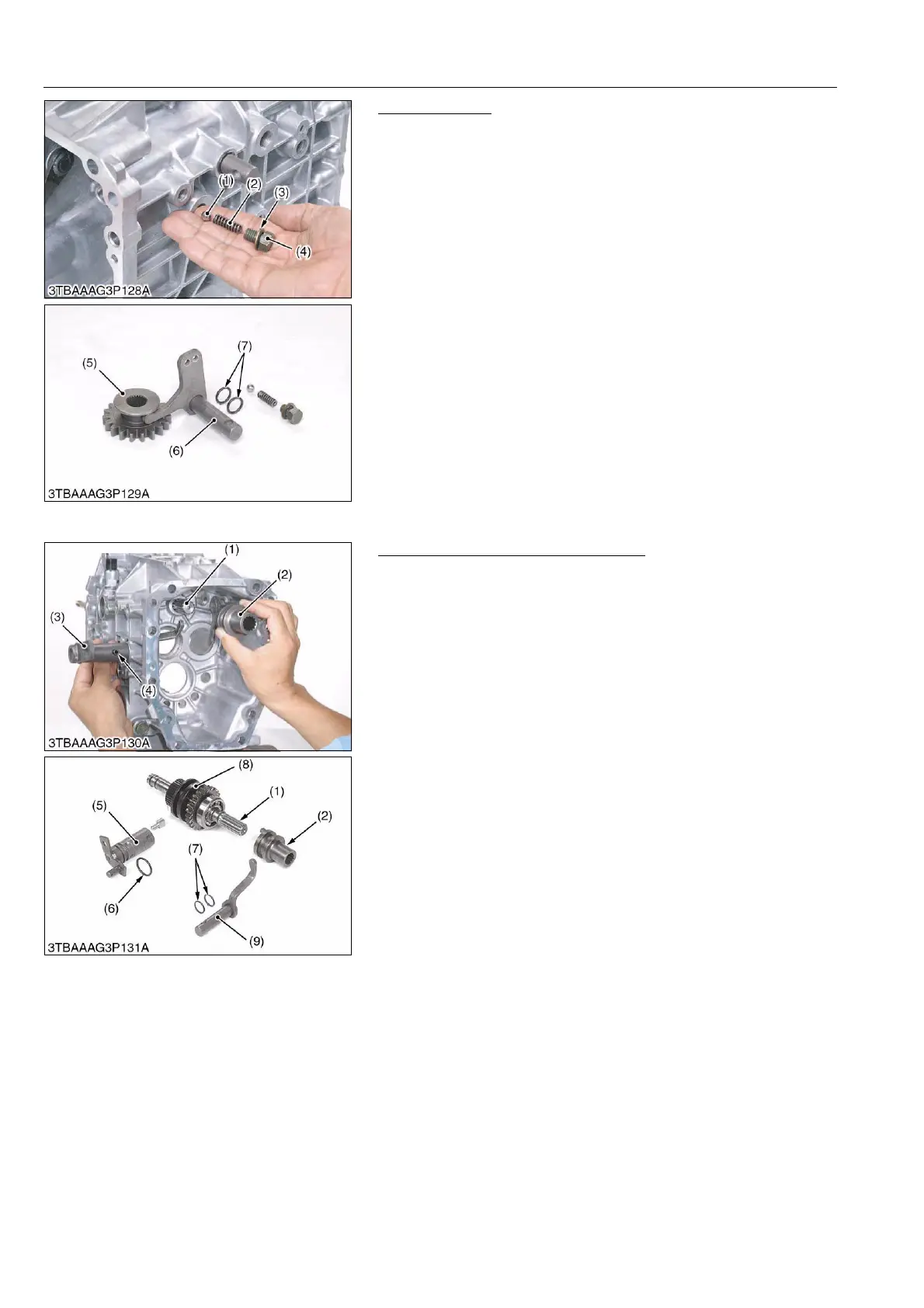

1. Remove the bolt (4) and the washer with rubber (3).
(When reassembling)
• Install the 4WD gear (5) to the 4WD shaft.
• Install the 4WD shaft arm (6) to the 4WD gear (5).
• Install the O-rings to the 4WD shaft arm (6).
9Y1210982TRS0077US0
(9) Independent PTO Clutch Shifter
Rear PTO Shifter and Rear PTO Arm
1. Remove the rear PTO shifter (2) from the PTO clutch shaft (1).
2. Remove the spring pin (4) from the rear PTO arm (9).
3. Remove the PTO clutch shaft (1) and the PTO shifter as an
assembly.
(When reassembling)
• Install the rear PTO arm (9) to the transmission case.
• After installing the PTO shifter (8) to the PTO clutch shaft (1),
install the rear PTO arm (9) to the rear PTO shifter (2).
• Install the O-rings (7) to the rear PTO arm (9).
• Install the PTO lever (3) to the rear PTO arm (9).
• Install the spring pin (4) to the rear PTO arm (9).
9Y1210982TRS0078US0
(1) Ball
(2) Spring
(3) Washer with Rubber
(4) Bolt
(5) 4WD Gear
(6) 4WD Shaft Arm
(7) O-ring
(1) PTO Clutch Shaft
(2) Rear PTO Shifter
(3) PTO Lever
(4) Spring Pin
(5) PTO Shift Arm
(6) O-ring
(7) O-ring
(8) PTO Shifter
(9) Rear PTO Arm
