GENERAL
B2050, B2350, B2650, B3150, WSM
G-18
Checking Movable Parts
1. If any of the movable parts, such as levers and pedals, is not
smoothly moved because of rust or anything sticky, do not
attempt to force it into motion.
In the above case, remove the rust or sticky thing, and apply oil
lor grease on the relevant spot.
Otherwise, the machine may get damaged.
9Y1210982GEG0021US0
[2] CHECK POINTS OF EVERY 50 HOURS
Checking Engine Start System [ROPS Manual Transmission
Type]
To avoid personal injury or death:
• Do not allow anyone near the tractor while testing.
• If the tractor does not pass the test do not operate the
tractor.
• Detach an implement before testing.
Preparation before testing.
1. Sit on operator's seat.
2. Set the parking brake and stop the engine.
3. Shift the range gear shift lever to "NEUTRAL" position.
4. Shift the shuttle shift lever in "NEUTRAL" position.
5. Shift the PTO ON-OFF lever to "OFF" position.
6. Fully depress the clutch pedal.
Test : Switch for the shuttle shift lever.
1. Shift the shuttle shift lever to the forward position.
2. Fully depress the clutch pedal and turn the key to "START"
position.
3. The engine must not crank.
4. Reverse position of the shuttle shift lever checks similarly.
Test : Switch for the PTO ON-OFF lever.
1. Shift the PTO ON-OFF lever to "ON" position.
2. Shift the shuttle shift lever to the "NEUTRAL" position.
3. Fully depress the clutch pedal and turn the key to "START"
position.
4. The engine must not crank.
Test : Switches for the operator's seat and the PTO ON-OFF
lever.
1. Sit on the operator's seat.
2. Start the engine.
3. Fully depress the clutch pedal.
4. Shift the PTO ON-OFF lever to "ON" position.
5. Release the clutch pedal and parking brake.
6. Stand up. (Do not get off the machine.)
7. The engine must shut off after approximately 1 second.
9Y1210982GEG0022US0

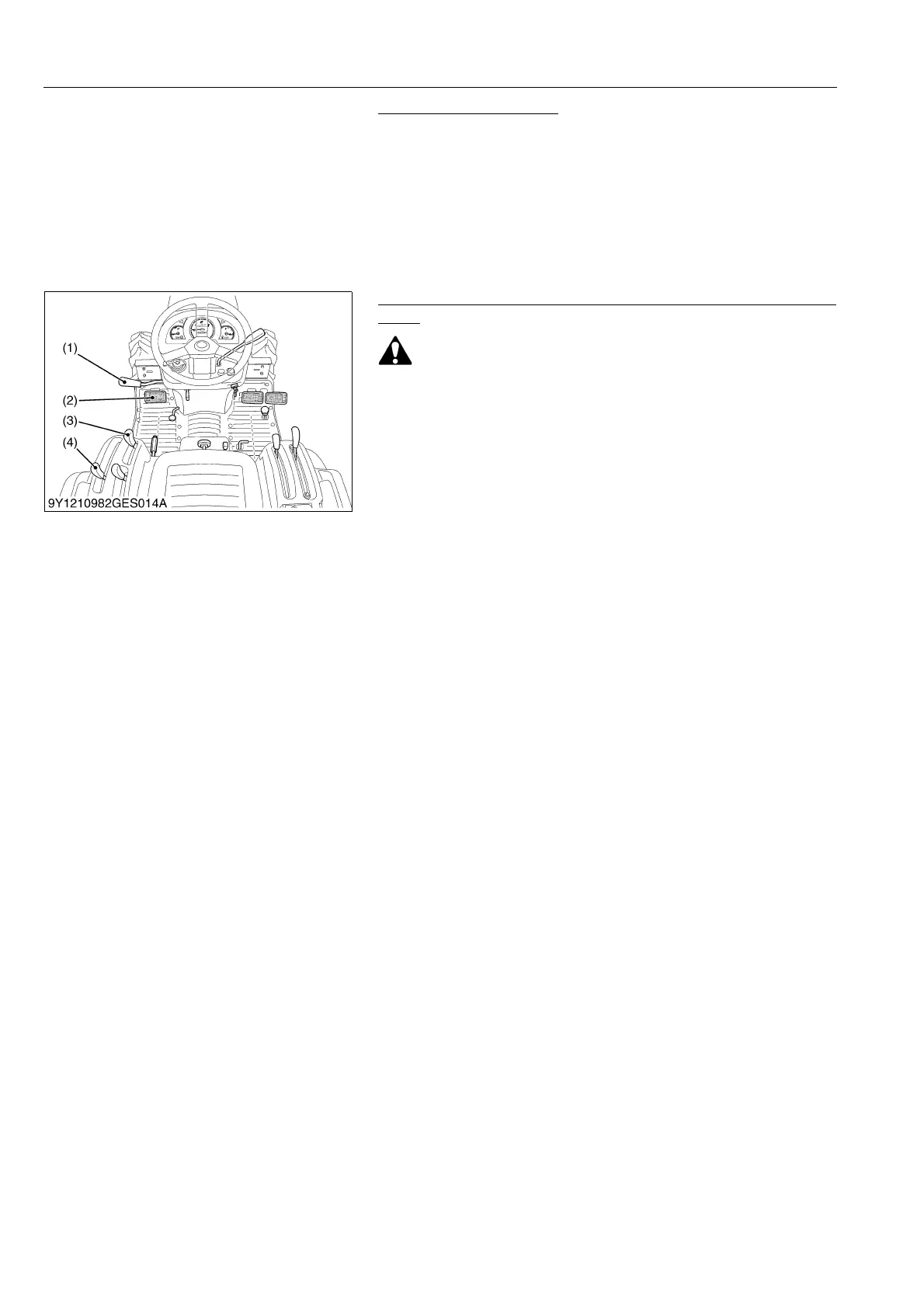

(1) Shuttle Shift Lever
(2) Clutch Pedal
(3) PTO ON-OFF Lever
(4) Range Gear Shift Lever
To Next Page
