HYDRAULIC SYSTEM
B2050, B2350, B2650, B3150, WSM
8-S19

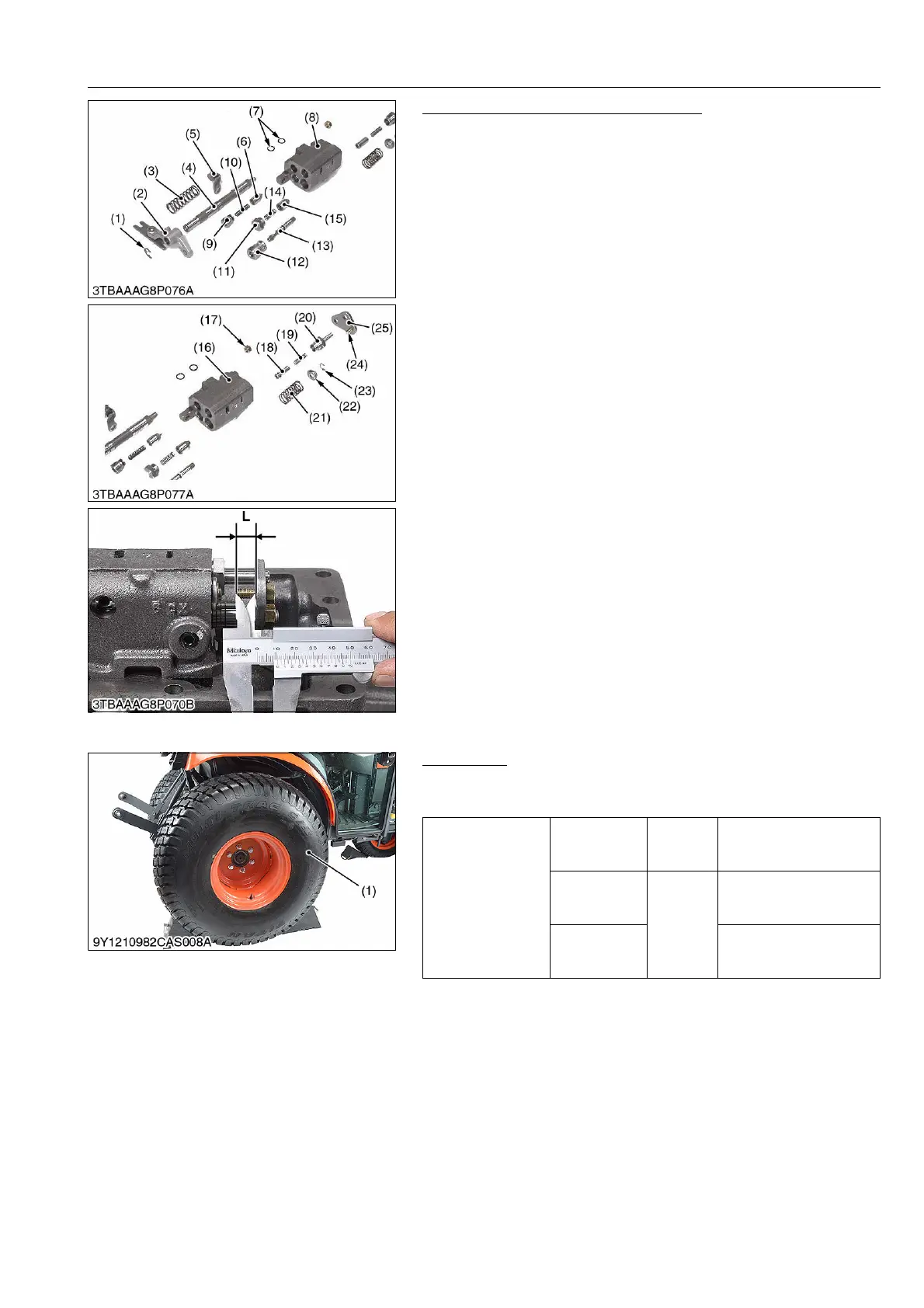

Disassembling Position Control Valve
1. After removing the control valve, disassemble the component
parts as shown in the picture.
(When reassembling)
• Readjust the length "L" of the adjusting bolt.
(Reference)
• Length "L" : approximately 10.70 mm (0.4213 in.)
9Y1210982HYS0027US0
(6) Front Loader Control Valve Assembly (If Equipped)
Rear Wheel
1. Place the disassembling stand under the transmission case.
2. Remove the rear wheel (1).
9Y1210982RAS0008US0
(1) External Cir-clip
(2) Lever
(3) Spring
(4) Spool
(5) Spring Holder
(6) Poppet
(7) O-ring
(8) Control Valve Body
(9) Plug
(10) Spring
(11) Unload Plug
(12) Plug
(13) Poppet
(14) Spring
(15) Unload Poppet
(16) Control Valve Body
(17) Nut
(18) Poppet
(19) Spring
(20) Plug
(21) Spring
(22) Spring Holder
(23) External Cir-clip
(24) Adjusting Bolt
(25) Connecting Plate
L: Length of adjusting bolt
Tightening torque
Rear wheel
mounting nut
and screw
B2050
B2350
B2650
108 to 126 N·m
11.1 to 12.8 kgf·m
79.7 to 92.9 lbf·ft
Rear wheel
mounting nut
B3150
167 to 191 N·m
17 to 19.5 kgf·m
123 to 141 lbf·ft
Rear wheel
mounting
screw
196 to 225 N·m
20 to 23 kgf·m
145 to 166 lbf·ft
(1) Rear Wheel
