TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-M41

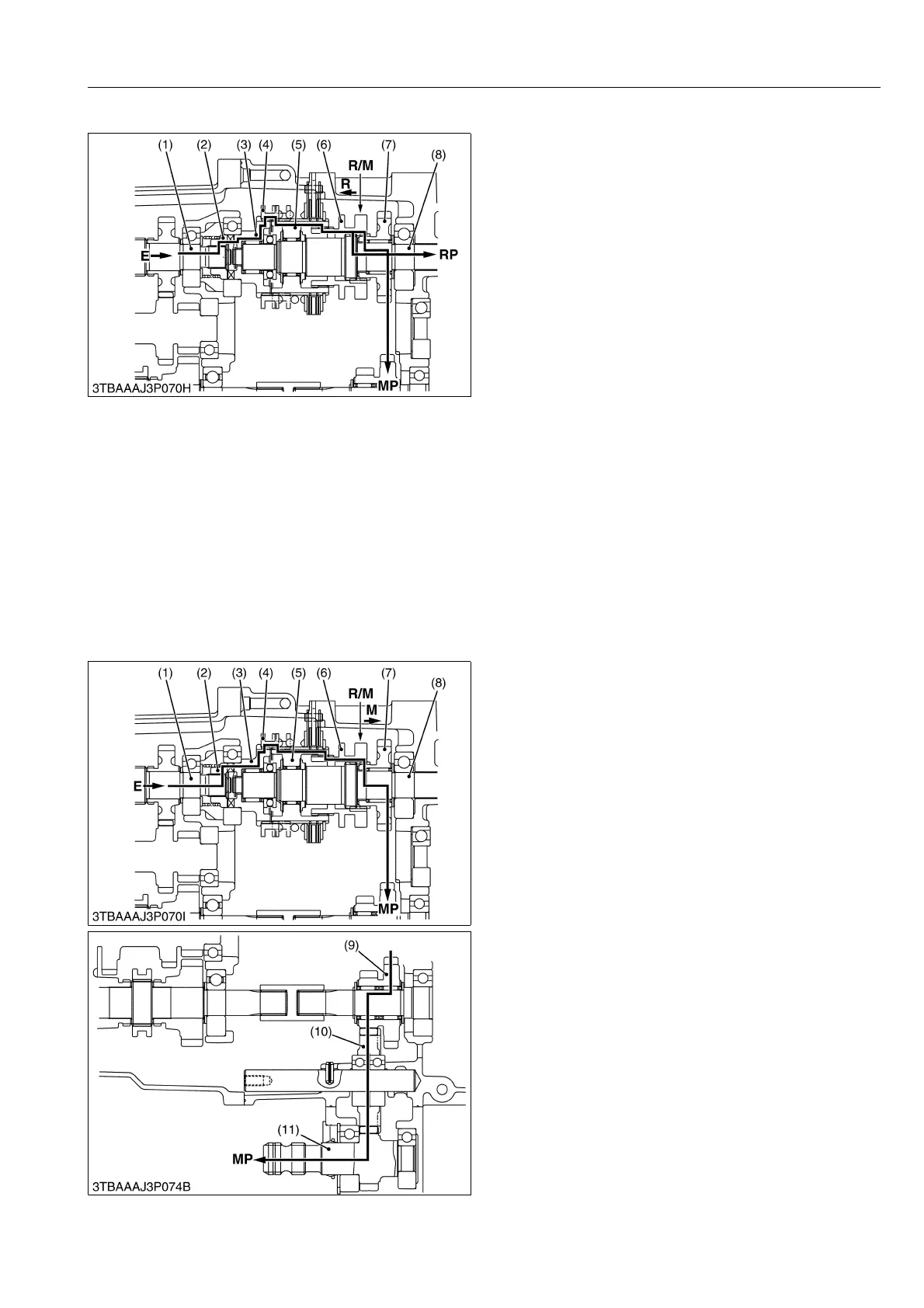

[3] REAR PTO / MID-PTO SECTION
When the PTO shift lever is set to "Rear
PTO/Mid-PTO" position, the PTO shifter (6) slides to
"Rear PTO/Mid-PTO" position (R/M).
The PTO shifter (6) meshes to both the spline of the
PTO clutch shaft (8) and the spline of the 26T mid-PTO
gear (7).
The power is transmitted from the first shift shaft (1)
to both the rear PTO and the mid-PTO as follows.
To Rear PTO
First shift shaft (1) One-way clutch cam (2)
One-way clutch spline boss (3) shifter (PTO ON/OFF)
(4) PTO brake spline boss (5) PTO shifter (6)
PTO clutch shaft (8) to rear PTO (R).
To Mid PTO
First shift shaft (1) One-way clutch cam (2)
One-way clutch spline boss (3) shifter (PTO ON/OFF)
(4) PTO brake spline boss (5) PTO shifter (6)
26T mid-gear (7) 25T gear to mid-PTO (MP).
9Y1210982TRM0041US0
[4] MID-PTO SECTION
When the PTO shift lever is set to "Mid-PTO"
position, the PTO shifter (6) slides to "Mid-PTO"
position (M).
The PTO shifter meshes to the spline of the 26T
mid-gear (7).
The power is transmitted from the first shift shaft (1)
to the mid-PTO as shown in the figure.
9Y1210982TRM0042US0
(1) First Shift Shaft
(2) One-way Clutch Cam
(3) One-way Clutch Spline Boss
(4) Shifter (PTO ON/OFF)
(5) PTO Brake Spline Boss
(6) PTO Shifter
(7) 26T Mid Gear
(8) PTO Clutch Shaft
R: REAR PTO Position
R/M: REAR PTO / MID PTO
Position
E: Power from Engine
RP: Power to Rear PTO Shaft
MP: Power to Mid-PTO
(1) First Shift Shaft
(2) One-way Clutch Cam
(3) One-way Clutch Spline Boss
(4) Shifter (PTO ON/OFF)
(5) PTO Brake Spline Boss
(6) PTO Shifter
(7) 26T Mid Gear
(8) PTO Clutch Shaft
(9) 17T-26T Mid PTO Gear
(10) 30T Gear
(11) Mid Gear Shaft
R/M: REAR PTO / MID PTO
Position
M: MID-PTO Position
E: Power from Engine
MP: Power to Mid-PTO
Implement
