TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-S44

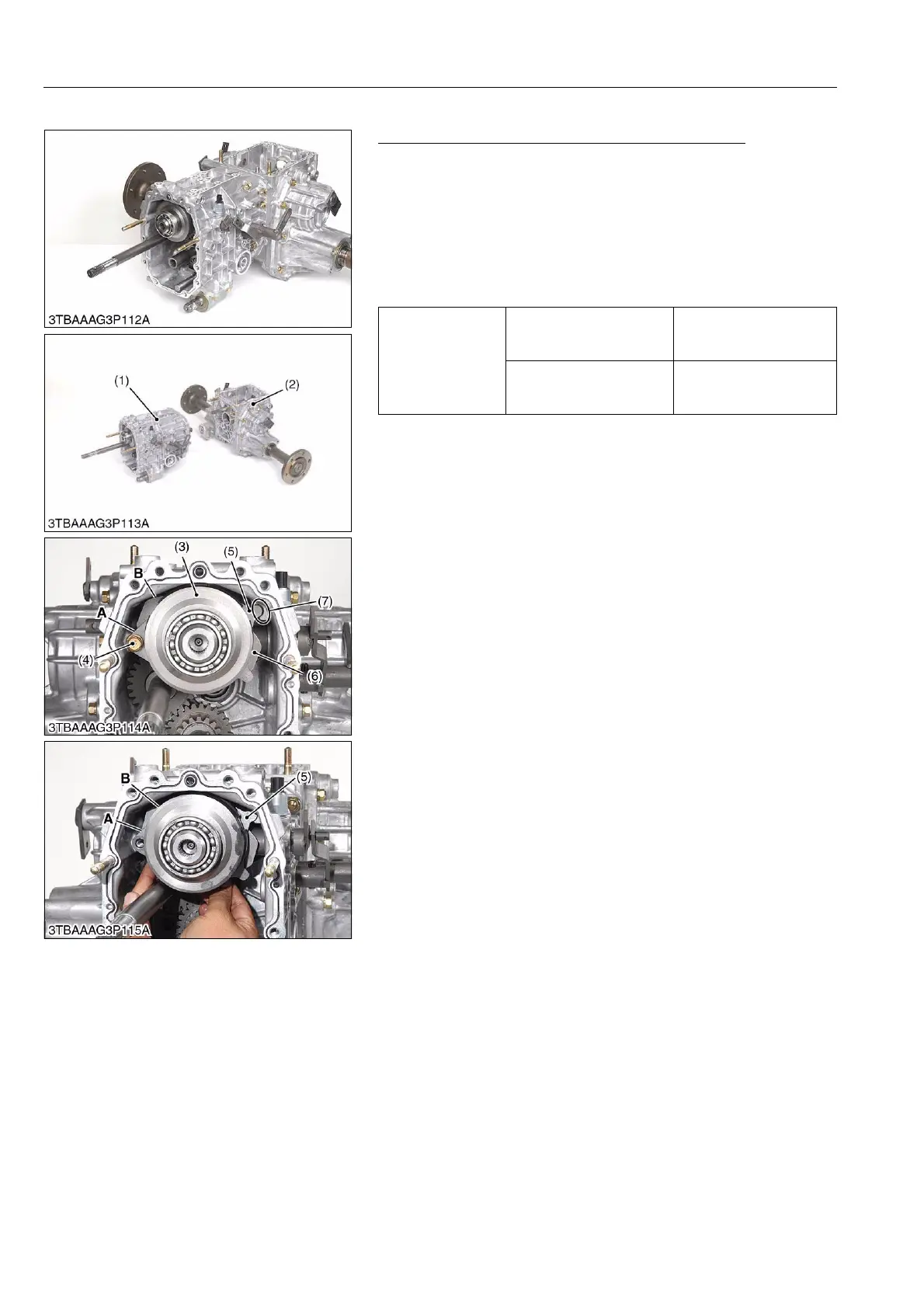

(5) PTO Clutch Case (HST Model)
Separating Differential case and PTO Clutch Case
1. Remove the transmission case mounting bolts.
2. Separate the transmission case (1) from the differential case
(2).
3. Remove the PTO brake plate 4 mounting bolt (4).
(When reassembling)
• Install the PTO brake plate 4 (5) to the transmission case
groove (7) securely as shown in the picture.
• Place the PTO brake plate 2 (6) between A and B.
9Y1210982TRS0071US0
Tightening torque
Transmission case
mounting bolt (M10) and
nut
39.3 to 44.1 N·m
4.0 to 4.5 kgf·m
29.0 to 32.5 lbf·ft
Hydraulic cylinder
mounting bolt (M10) and
nut
39.3 to 44.1 N·m
4.0 to 4.5 kgf·m
29.0 to 32.5 lbf·ft
(1) Transmission Case
(2) Differential Case
(3) PTO Clutch Case
(4) PTO Brake Plate 4 Mounting Bolt
(5) PTO Brake Plate 4
(6) PTO Brake Plate 2
(7) Transmission Case Groove
A: Position
B: Position
