TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-M16

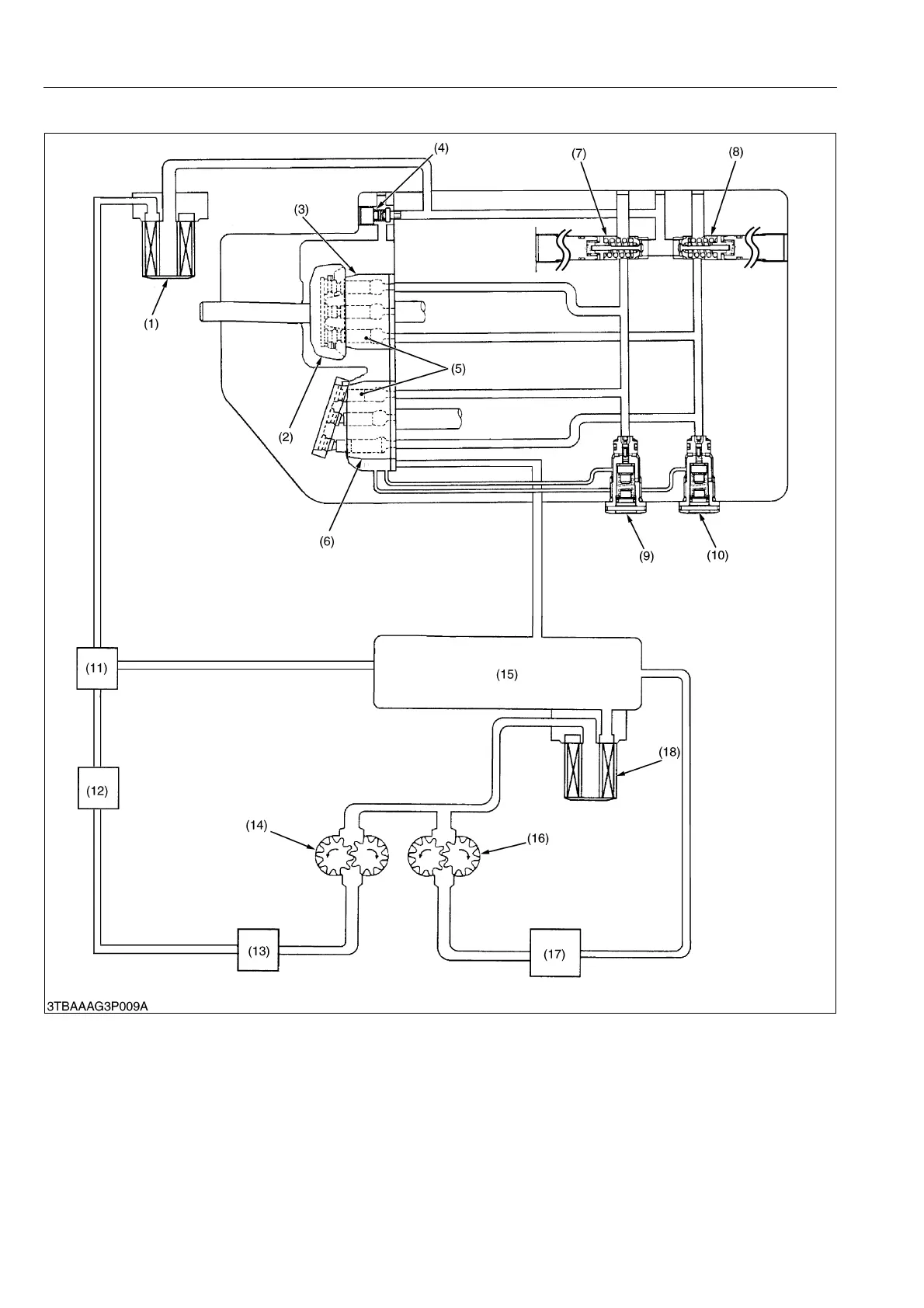

[3] OIL FLOW AND VALVES
(To be continued)
(1) Oil Filter Cartridge (for HST)
(2) Swashplate
(3) Cylinder Block (for Pump)
(4) Charge Relief Valve
(5) Piston
(6) Cylinder Block (for Motor)
(7) Check and High Pressure
Relief Valve (for Forward)
(8) Check and High Pressure
Relief Valve (for Reverse)
(9) Neutral Valve (for Forward)
(10) Neutral Valve (for Reverse)
(11) Independent PTO Control
Valve
(12) Oil Cooler
(13) Power Steering
(14) Hydraulic Pump
(for Power Steering,
Independent PTO, HST)
(15) Oil Tank
(16) Hydraulic Pump
(for 3-points Hitch)
(17) Hydraulic Control Valve
(for 3-points Hitch)
(18) Oil Filter Cartridge
To Next Page
