HYDRAULIC SYSTEM
B2050, B2350, B2650, B3150, WSM
8-M21
6. HYDRAULIC OUTLET
[1] MANUAL TRANSMISSION MODEL
(1) Front Hydraulic Outlet

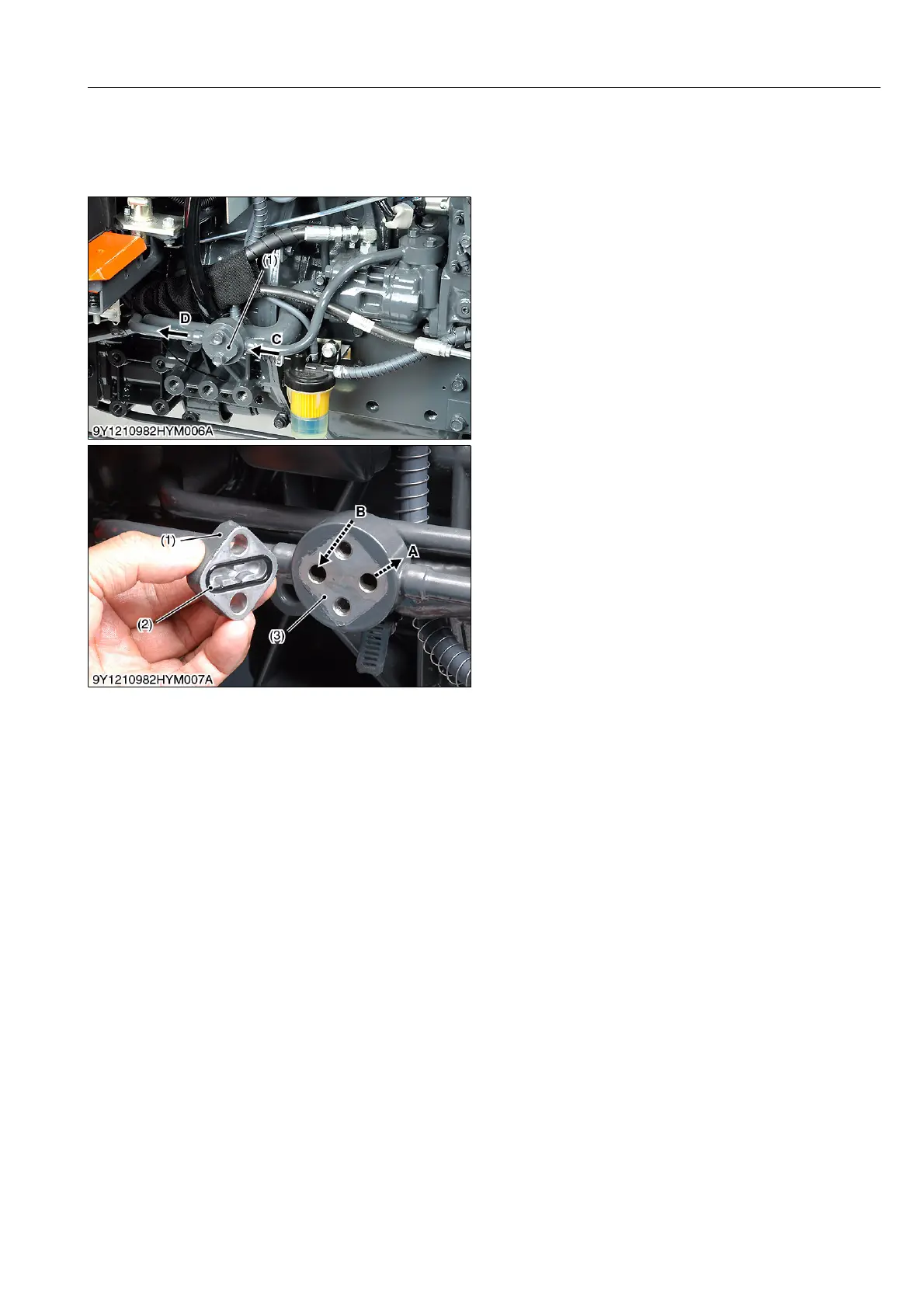

The hydraulic block type outlet is located at the right
hand side of the engine.
This hydraulic block type outlet is provided to take
power out from the tractor to operate the hydraulic
cylinders on the implement, such as front end loader,
front blade and so on.
9Y1210982HYM0026US0
(1) Hydraulic Block Cover
(2) O-Ring
(3) Delivery Pipe
A: To Implement
B: From Implement
C: From Hydraulic Pump
D: To Control Valve
To Next Page
