TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-M28

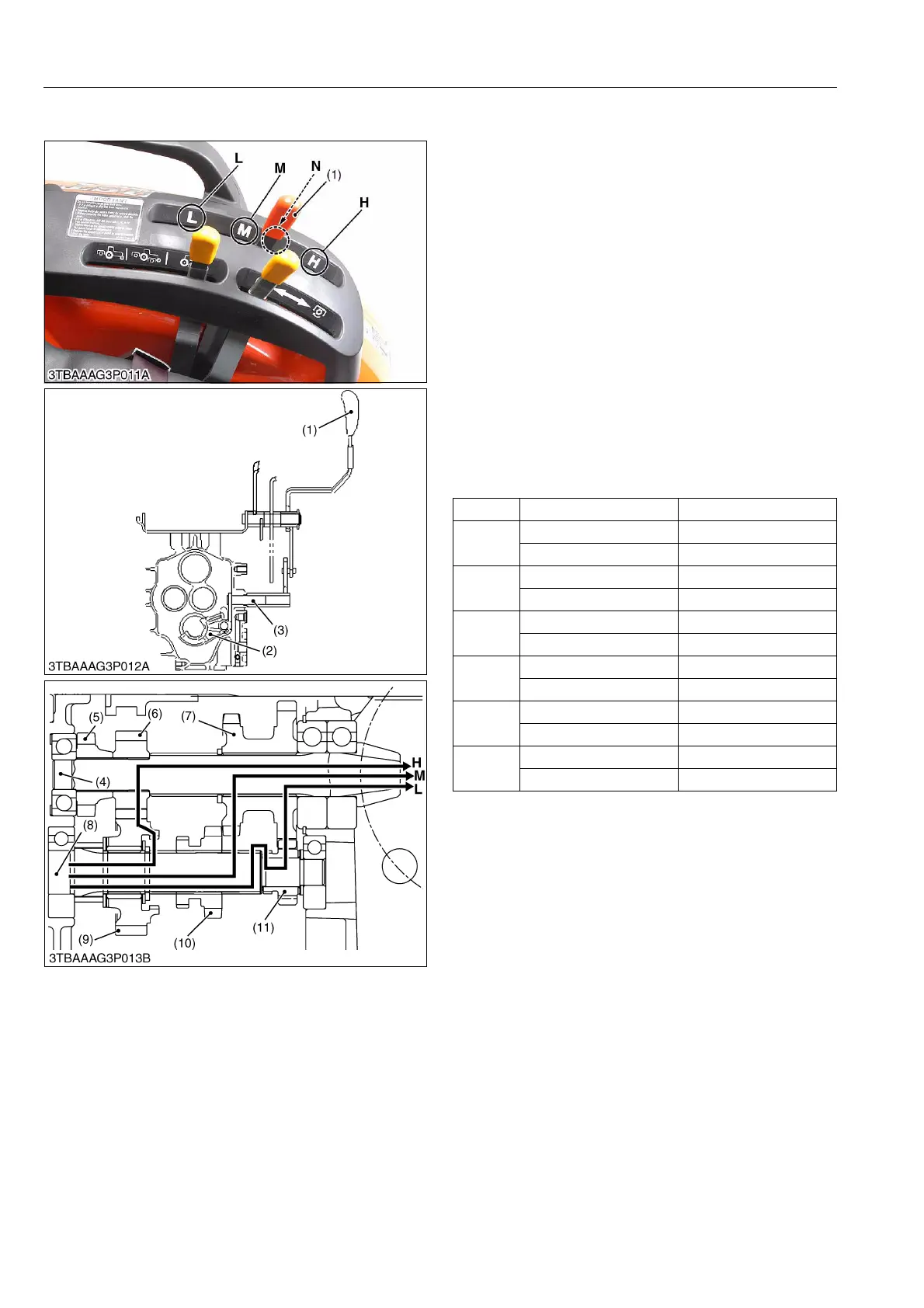

6. RANGE GEAR SHIFT SECTION
Range gear shift lever (1) is located at left side
fender.
Range gear shift lever (1) can select three speed
range, low speed, mid speed and high speed.
Range gear shift lever (1) and shifter gear (10) are
linked with range shift arm (3) and range shift fork (2)
etc..
Three range gear shifts are selected by shifting the
shifter gear (10) on the sub shaft (8) to gear (6) and gear
(7) on bevel pinion shaft (4).
 Low Speed Position
Sub shaft (8)  shifter gear (10)  gear (11)  gear
(7)  bevel pinion shaft (4).
 Middle Speed Position
Sub shaft (8)  shifter gear (10)  gear (7)  bevel
pinion shaft (4).
 High Speed Position
Sub shaft (8)  shifter gear (10)  gear (9)  gear
(6)  bevel pinion shaft (4).
9Y1210982TRM0028US0
Item Number of gear teeth Model
(5)
13 B2050, B2350, B2650
14 B3150
(6)
12 Manual Transmission
18 HST
(7)
25 - 31 Manual Transmission
24 - 29 HST
(9)
31 Manual Transmission
36 HST
(10)
18 Manual Transmission
19 HST
(11)
12 Manual Transmission
14 HST
(1) Range Gear Shift Lever
(2) Range Shift Fork
(3) Range Shift Arm
(4) Bevel Pinion Shaft
(5) Gear (for Front Wheel Drive)
(6) Gear
(7) Gear
(8) Sub Shaft
(9) Gear
(10) Shifter Gear
(11) Gear
L: "LOW" Range
M: "MID" Range
N: "Neutral" Position
H: "HIGH" Range
