TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-M29
7. FRONT WHEEL DRIVE SECTION

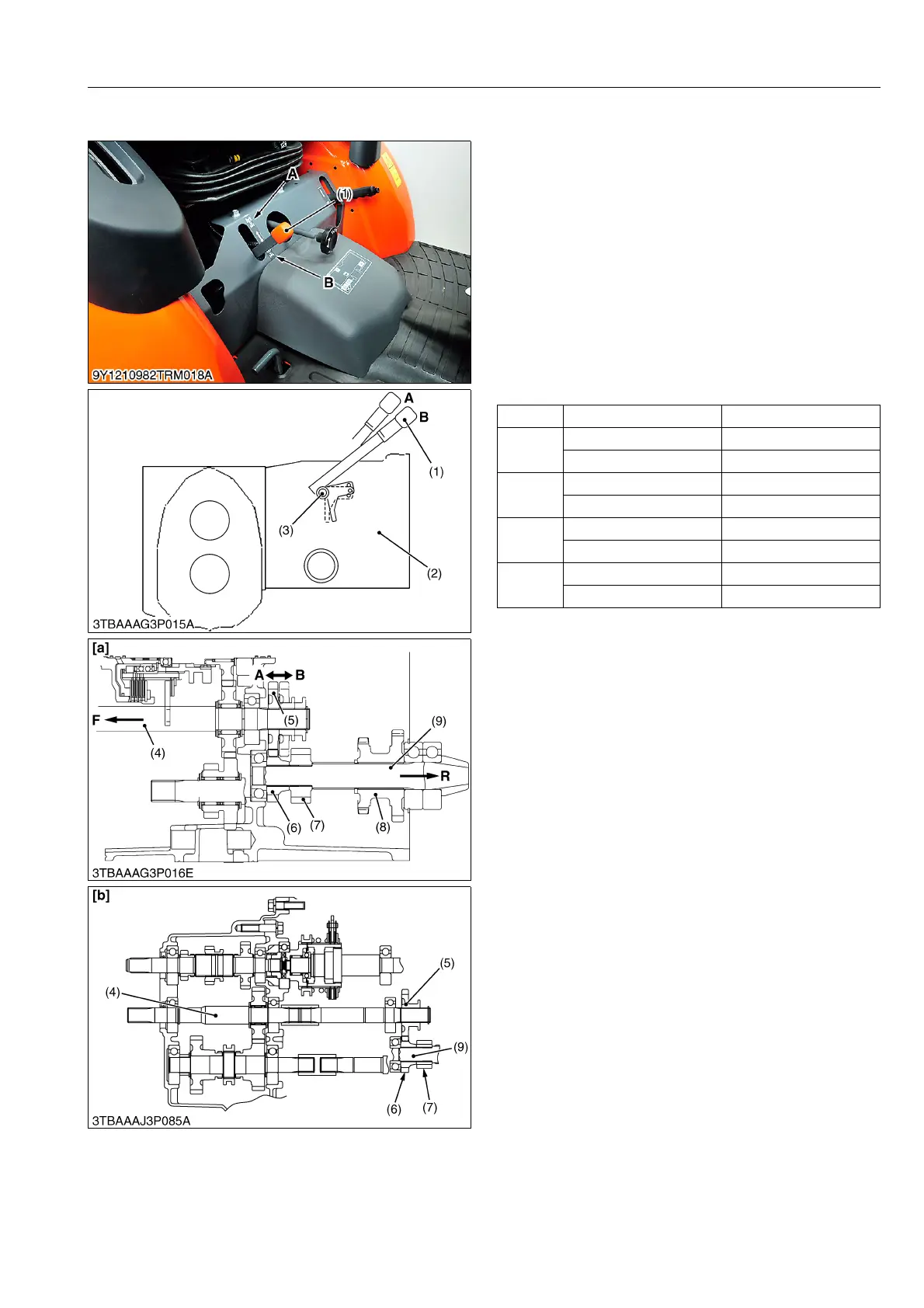

Front wheel drive lever (1) is located at the front floor
cover.
Front wheel drive lever (1) and shifter (3) are linked.
shifter gear (5) is located on the front wheel drive shaft
(4).
2-wheel drive or 4-wheel drive is selected by
changing the position of shifter gear (5) reverse or
forward.
When the font wheel drive lever (1) is set to "4
Wheel Drive Position", shifter gear (5) slides forward,
meshes the gear (6) on the 6T bevel pinion shaft (9).
In this state, power from the 6T bevel pinion shaft (9)
is transmitted through shifter gear (5) to the front wheel
drive shaft (4) and the front wheels.
9Y1210982TRM0029US0
Item Number of gear teeth Model
(5)
19 B2050, B2350, B2650
20 B3150
(6)
13 B2050, B2350, B2650
14 B3150
(7)
12 Manual Transmission
18 HST
(8)
25 - 31 Manual Transmission
24 - 29 HST
(1) Front Wheel Drive Lever
(2) Transmission Case
(3) Shifter
(4) Front Wheel Drive Shaft
(5) Shifter Gear
(6) Gear
(7) Gear
(8) Gear
(9) 6T Bevel Pinion Shaft
A: 4 Wheel Drive Position
B: 2 Wheel Drive Position
F: Power to Front Wheels
R: Power to Rear Wheels
[a] HST Model
[b] Manual Transmission
Model (without Mid-PTO)
