ENGINE
B2050, B2350, B2650, B3150, WSM
1-S31
[3] DISASSEMBLING AND ASSEMBLING
(1) External Components
Fan, Water Hose, Fan Belt, Alternator, Muffler, Air Cleaner, Air
Cleaner Bracket, Inlet Hose and etc.

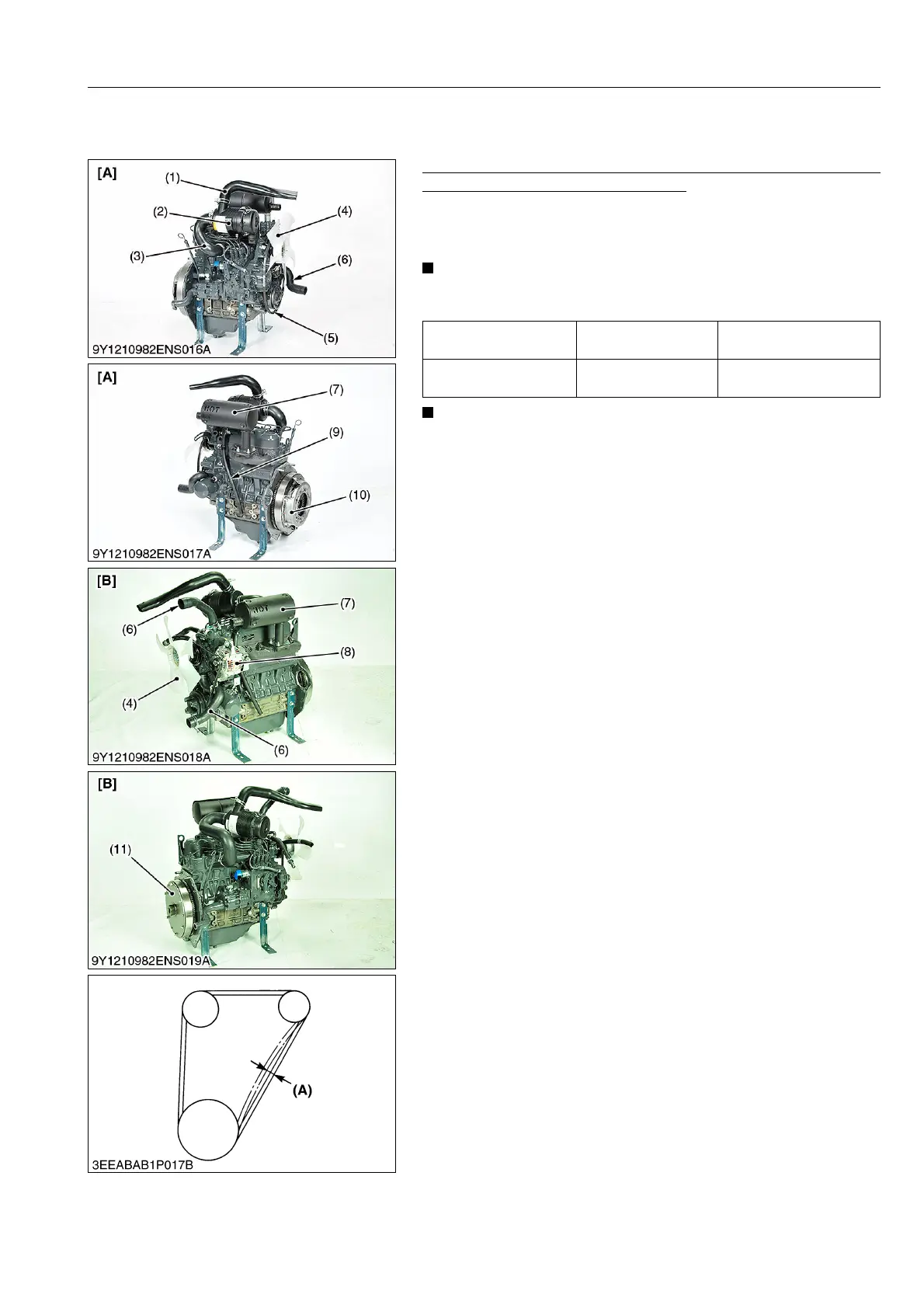

1. Remove the external components as shown in the picture.
(When reassembling)
• Check to see that there are no crack on the fan belt surface.
• When installing the fan belt (5), be sure to adjust the fan
belt tension.
• When remove the compressor, con denser and receiver, be
careful not to damage the hose bind.
9Y1210982ENS0052US0
Fan belt deflection (A) Factory specification
7.0 to 9.0 mm
0.28 to 0.35 in.
Air conditioner fan belt
deflection
Factory specification
10 to 12 mm
0.40 to 0.47 in.
(1) Inlet Hose
(2) Air Cleaner
(3) Inlet Hose
(4) Fan
(5) Fan Belt
(6) Water Hose
(7) Muffler
(8) Alternator
(9) Breath Hose
(10) Clutch Assembly
(11) Steel Plate
[A] ROPS Model
[B] CABIN Model
(A) Deflection
