ELECTRICAL SYSTEM
B2050, B2350, B2650, B3150, WSM
9-M27

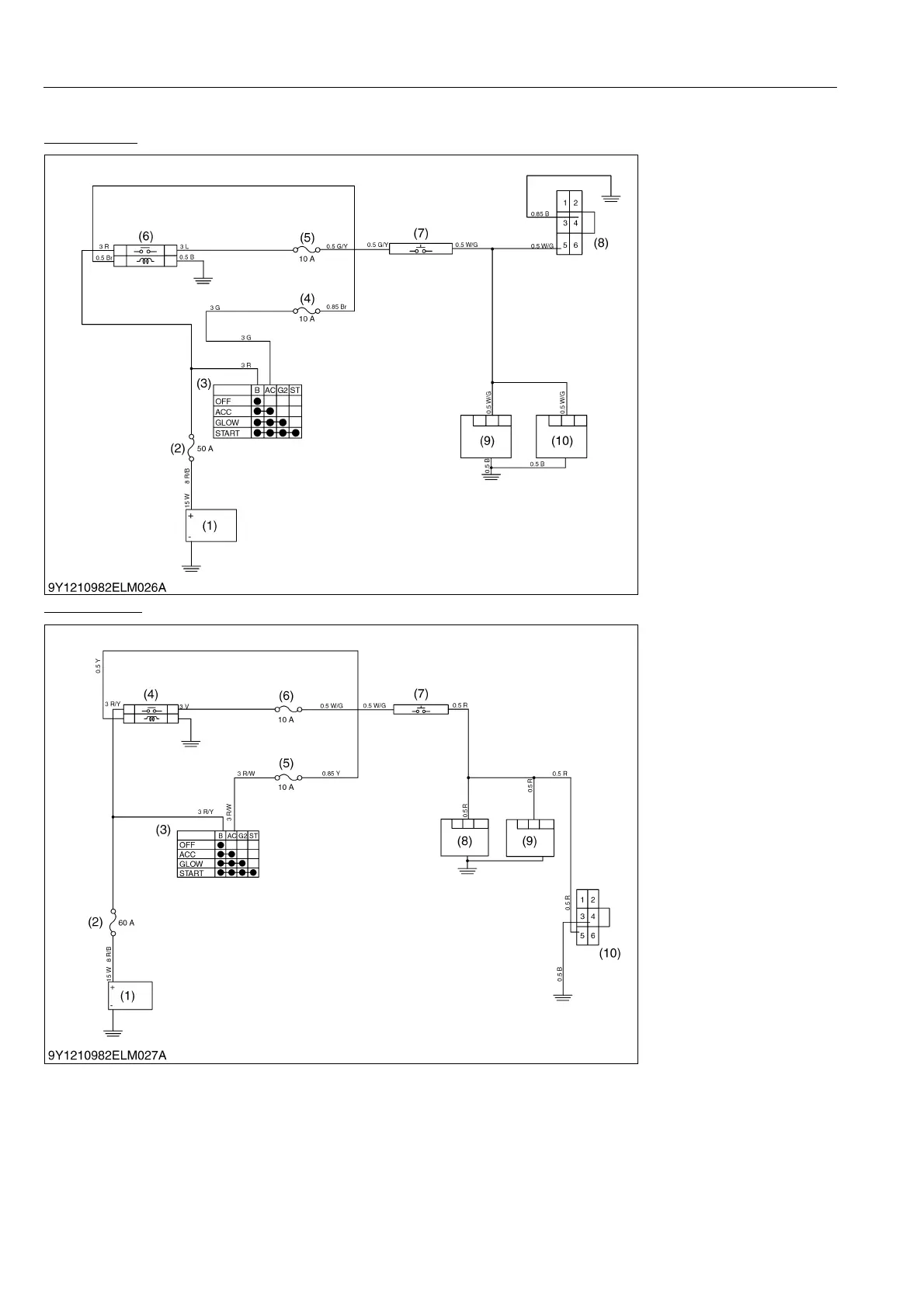

[5] BRAKE LIGHT
ROPS Model
9Y1210982ELM0038US0
CABIN Model
9Y1210982ELM0039US0
(1) Battery
(2) Slow Blow Fuse (Main)
(3) Key Switch
(4) Fuse (Alternator / ACC
Relay)
(5) Fuse (Blake Lamp)
(6) Relay (Head Light 1)
(7) Brake Lamp Switch
(8) Trailer Socket
(9) Rear Combination Lamp (L)
(Brake)
(10) Rear Combination Lamp (R)
(Brake)
(1) Battery
(2) Slow Blow Fuse (Main)
(3) Key Switch
(4) Fuse (Alternator / ACC
Relay)
(5) Fuse (Blake Lamp)
(6) Relay (Head Light 1)
(7) Brake Lamp Switch
(8) Rear Combination Lamp (L)
(Brake)
(9) Rear Combination Lamp (R)
(Brake)
(10) Trailer Socket
