TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-M25

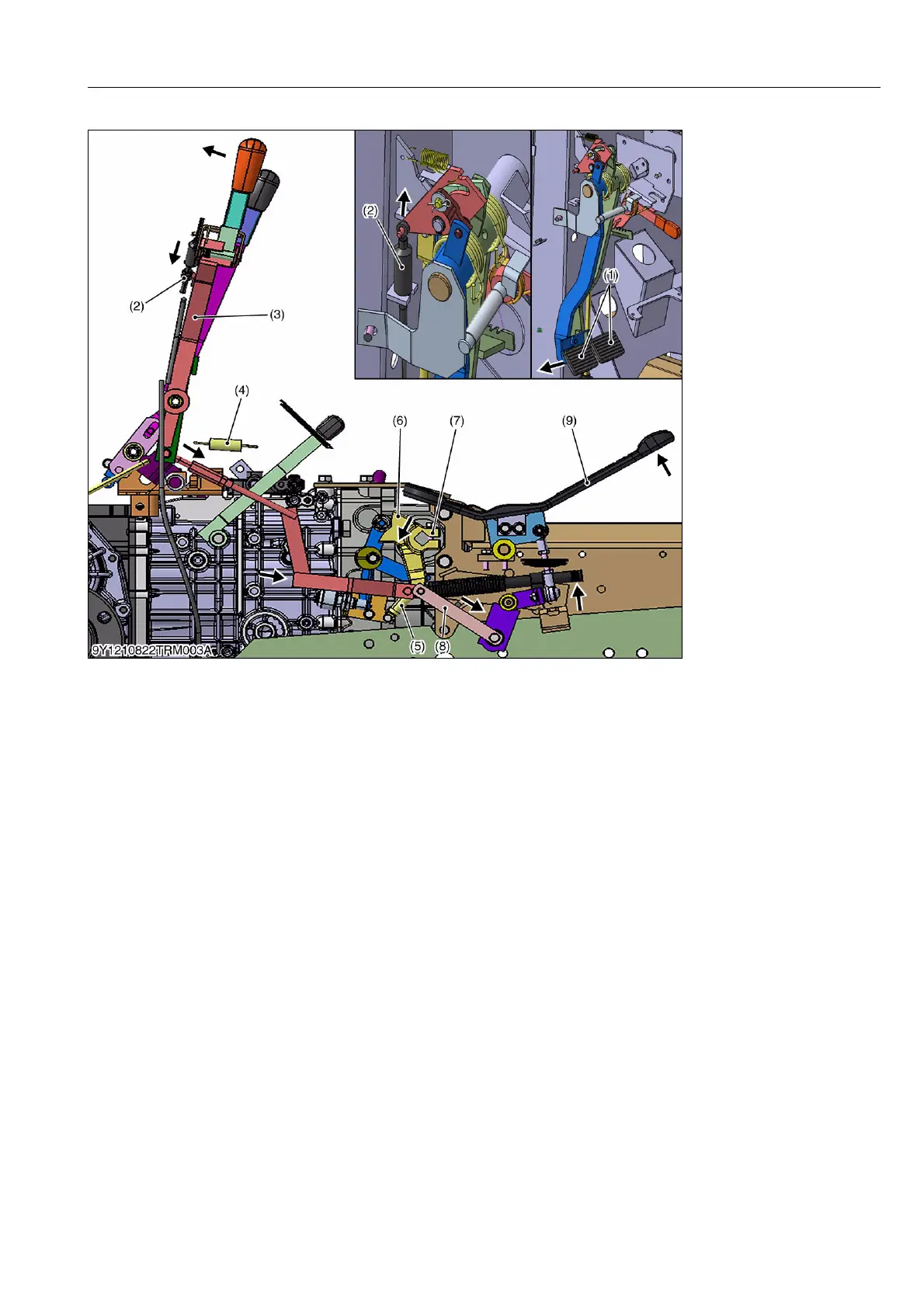

(2) Cruise Control Release
Cruise control release is done by depressing the brake pedals (1).
When an operator depresses the brake pedal (1), the cruise cable (2) is pulled by the brake pedals (1).
At the time, the cruise control lever (3) is free. The cruise control lever (3) is returned to "NEUTRAL" position by
the return spring (4).
On the other hand, the return spring (5) pulls the neutral holder (6). The neutral holder (6) and the trunnion shaft
(7) turns counterclockwise. Since the neutral holder (6) is connected to the HST plate (8), the HST plate (8) is pushed
to the front side. The HST plate (8) pushes the HST pedal (9) to return to "NEUTRAL" position.
9Y1210982TRM0025US0
(1) Brake Pedal
(2) Cruise Cable
(3) Cruise Control Lever
(4) Return Spring
(5) Return Spring
(6) Neutral Holder
(7) Trunnion Shaft
(8) HST Plate
(9) HST Pedal
