TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-S63

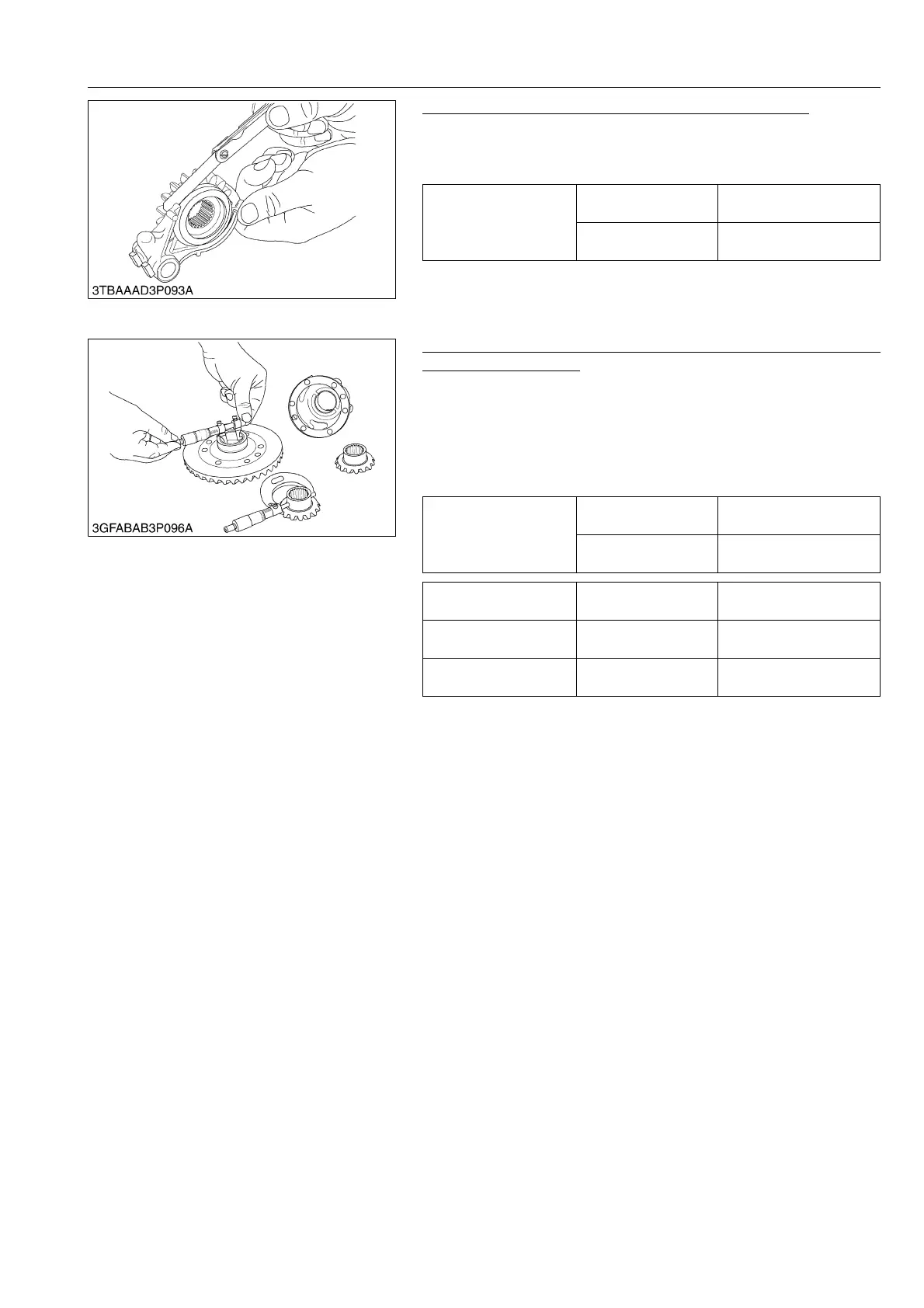

Clearance between Shift Fork and Shift Gear Groove
1. Insert the fork into the shift gear groove and measure the
clearance with a feeler gauge.
2. If the clearance exceeds the allowable limit, replace it.
9Y1210982TRS0111US0
(6) Differential Gear
Clearance between Differential Case (Spiral Bevel Gear) and
Differential Side Gear
1. Measure the differential side gear boss O.D. with an outside
micrometer.
2. Measure the differential case I.D. and the spiral bevel gear I.D.
with an inside micrometer, and calculate the clearance.
3. If the clearance exceeds the allowable limit, replace damage
parts.
9Y1210982TRS0112US0
Clearance between shift
fork and shift gear
groove
Factory specification
0.10 to 0.35 mm
0.004 to 0.014 in.
Allowable limit
0.5 mm
0.020 in.
Clearance between
differential case (spiral
bevel gear) and
differential side gear
Factory specification
0.025 to 0.066 mm
0.0010 to 0.0025 in.
Allowable limit
0.30 mm
0.0118 in.
Differential case I.D. Factory specification
32.000 to 32.025 mm
1.2599 to 1.2608 in.
Spiral bevel gear I.D. Factory specification
32.000 to 32.025 mm
1.2599 to 1.2608 in.
Differential side gear
O.D.
Factory specification
31.959 to 31.975 mm
1.2582 to 1.2589 in.
KiSC issued 03, 2014 A
