TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-M27

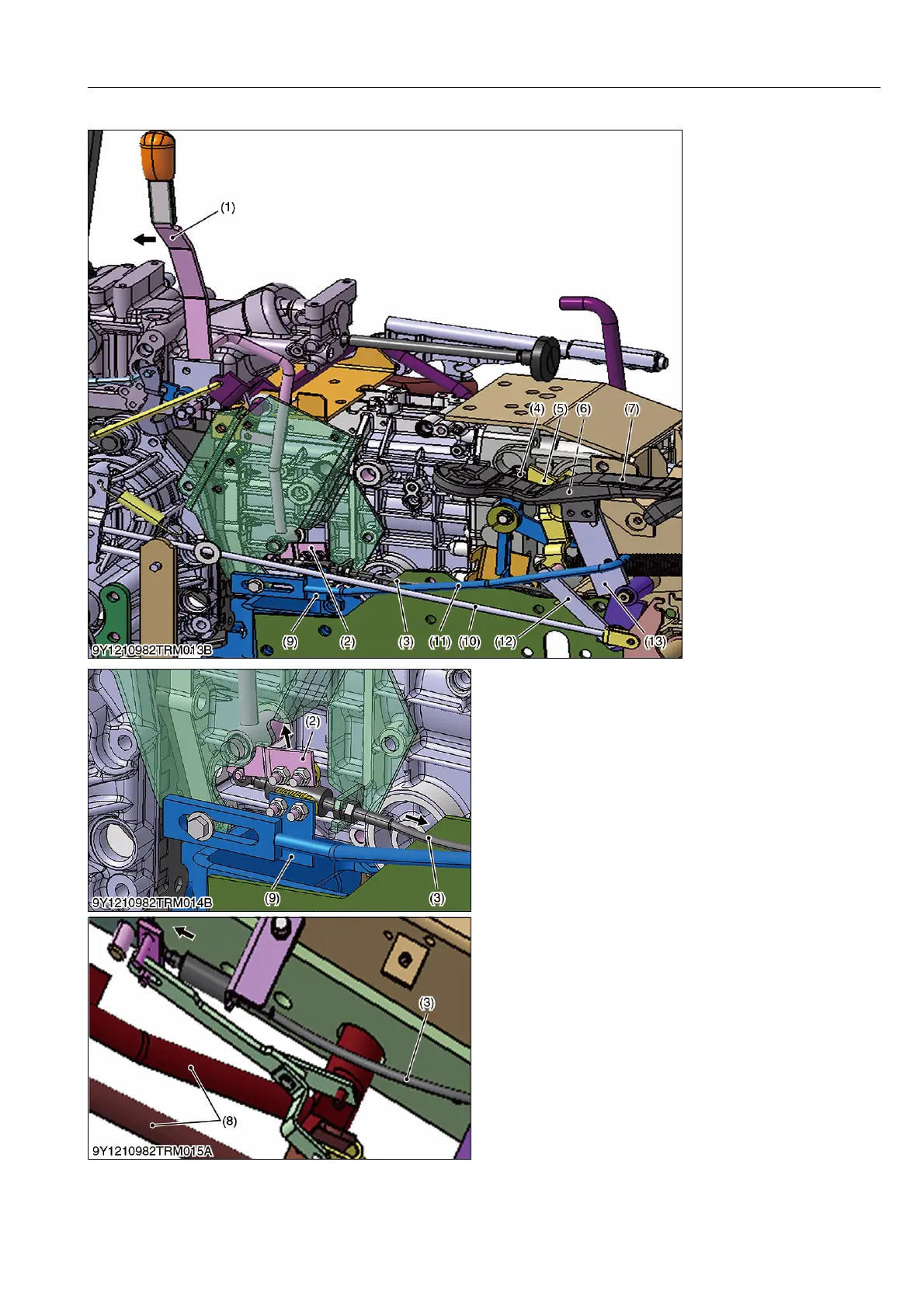

(2) Cruise Control Release
When depressing the brake pedals (8), the release
wire (3), the cruise control lever (1) and the cruise lock 1
(2) moves like the arrow shown in the pictures.
And the cruise lock 1 (2) release from the cruise lock
2 (9).
Cruise lock is changed from "ON" to "OFF" position.
Since the cruise lock is kept "OFF", the neutral
holder turns counterclockwise, and the roller is returned
to "Neutral" position. The HST pedal (7) also returns to
"Neutral" position and the tractor stops.
9Y1210982TRM0027US0
(1) Cruise Control Lever
(2) Cruise Lock 1
(3) Release Wire
(4) Roller
(5) Neutral Holder
(6) Trunnion Shaft
(7) HST Pedal
(8) Brake Pedal
(9) Cruise Lock 2
(10) Brake Rod
(11) Cruise Rod
(12) HST Plate
(13) HST Lever
