TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-M26
[2] CRUISE CONTROL LINKAGE (ROPS MODEL)
(1) Cruise Control

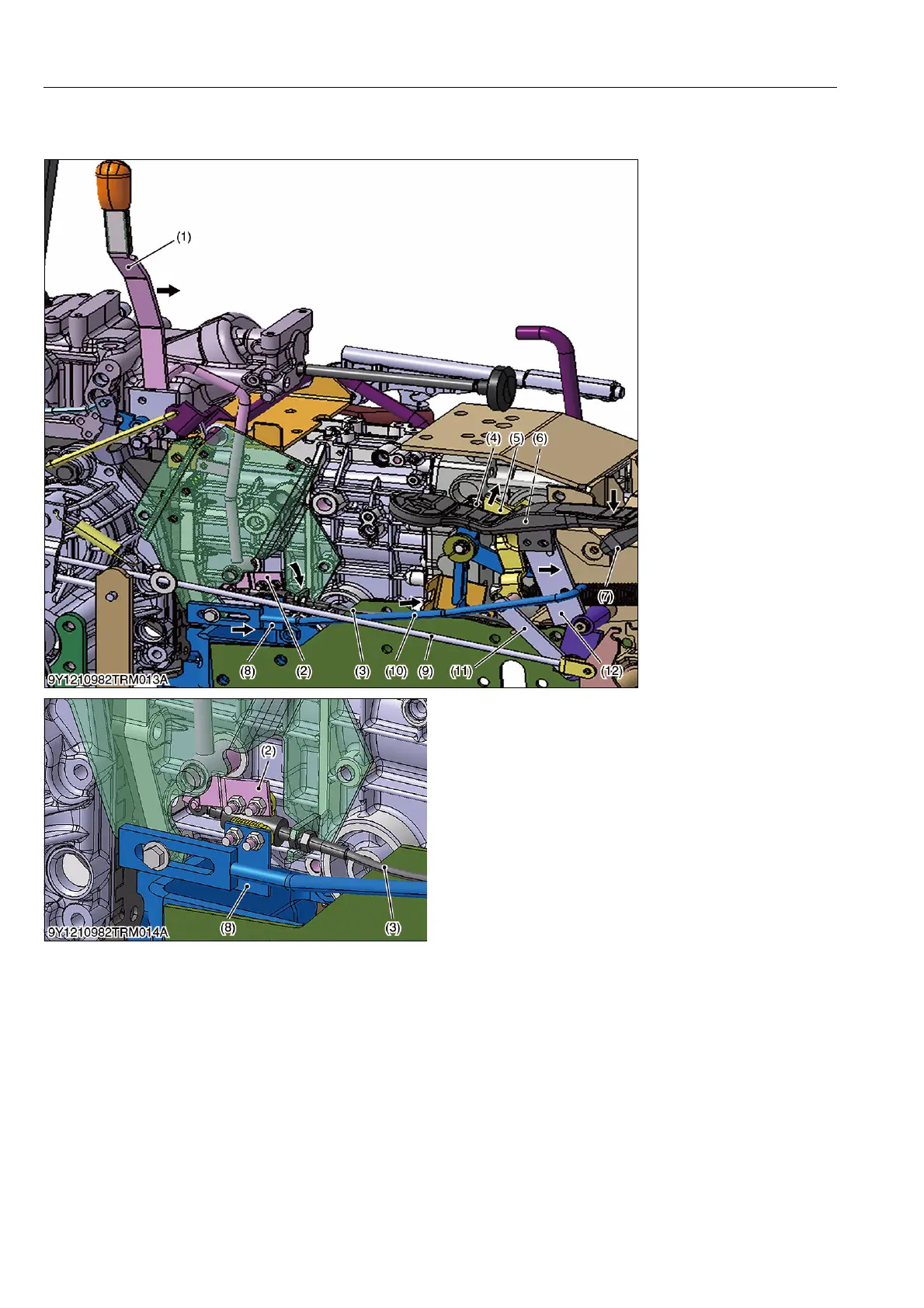

When depressing the HST pedal (7) to "Forward",
the HST lever (12), the cruise rod (10) and the cruise
lock 2 (8) moves like the arrow shown in the pictures.
And when the cruise control lever (1) is set to the
desired position, the cruise lock 1 (2) is locked to the
cruise lock 2 (8) and travelling speed is held to the
desired speed.
9Y1210982TRM0026US0
(1) Cruise Control Lever
(2) Cruise Lock 1
(3) Release Wire
(4) Roller
(5) Neutral Holder
(6) Trunnion Shaft
(7) HST Pedal
(8) Cruise Lock 2
(9) Brake Rod
(10) Cruise Rod
(11) HST Plate
(12) HST Lever
