TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-S29
(2) Main Gear Shift Section
Separating Main Gear Shift Section Assembly
1. Remove the propeller shaft (1).
2. Remove the spring pins (3), (4).
3. Remove the main gear shift section mounting bolts (7) and the
nuts (6).
4. Separate the main gear shift section case assembly (5) from the
transmission case.
(When assembling)
• Apply the liquid gasket (Three Bond 1206D or its equivalent).
• Align the coupling spline between the shuttle shaft and the Hi-Lo
gear shaft. Align the coupling spline between the front wheel
drive shafts.
9Y1210982TRS0049US0
Tightening torque
Main gear shift section
mounting bolt (M10)
39.3 to 44.1 N·m
4.0 to 4.5 kgf·m
29.0 to 32.5 lbf·ft
Main gear shift section
mounting nut (M10)
39.3 to 44.1 N·m
4.0 to 4.5 kgf·m
29.0 to 32.5 lbf·ft

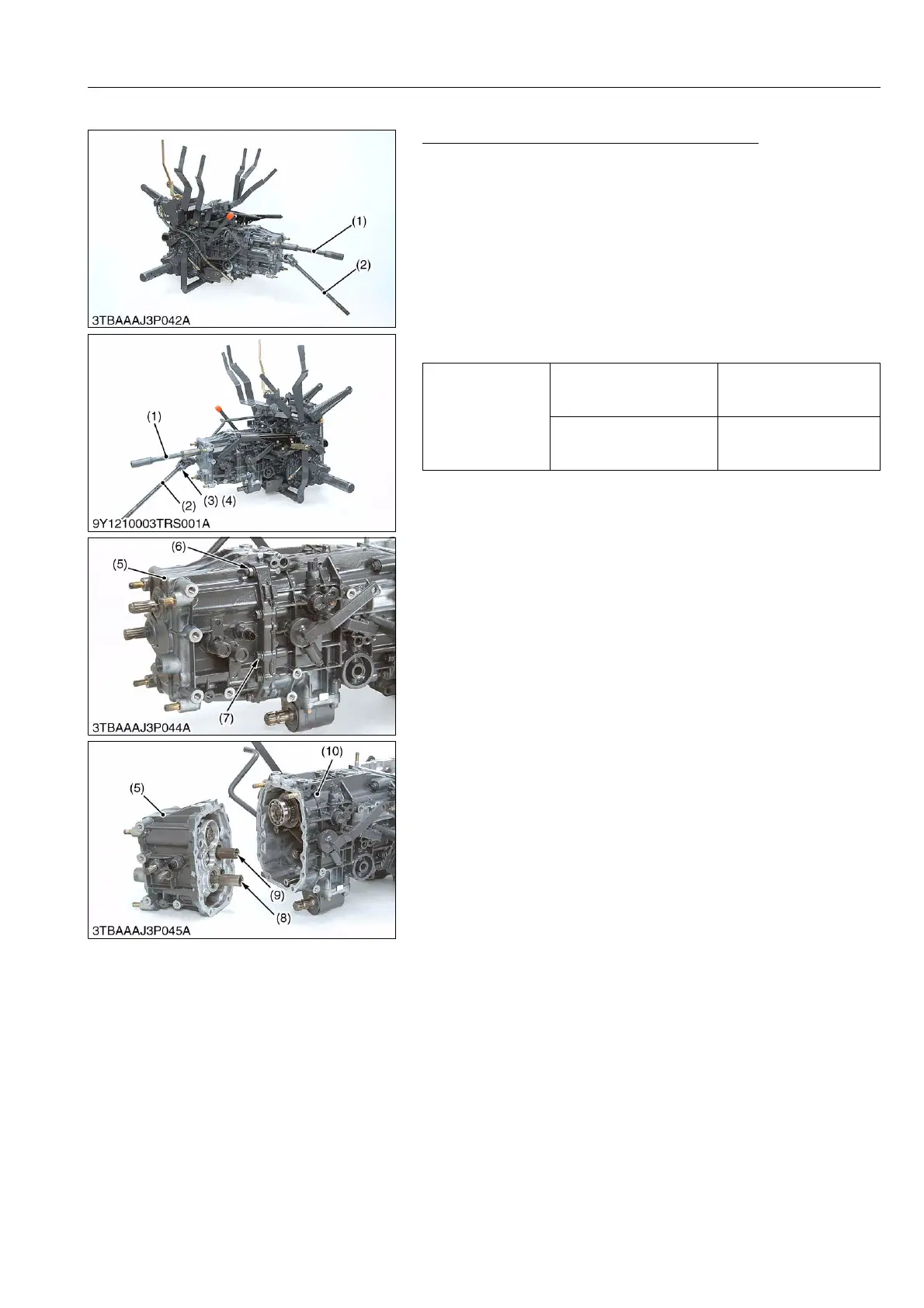

(1) Propeller Shaft
(2) Drive Shaft
(3) Spring Pin
(4) Spring Pin
(5) Main Gear Shift Section Case
Assembly
(6) Nut
(7) Bolt
(8) Couple Ring (Connecting for 4WD
Shaft)
(9) Couple Ring (Connecting for Hi-Lo
Gear Shaft)
(10) Transmission Case
