TRANSMISSION
B2050, B2350, B2650, B3150, WSM
3-S17

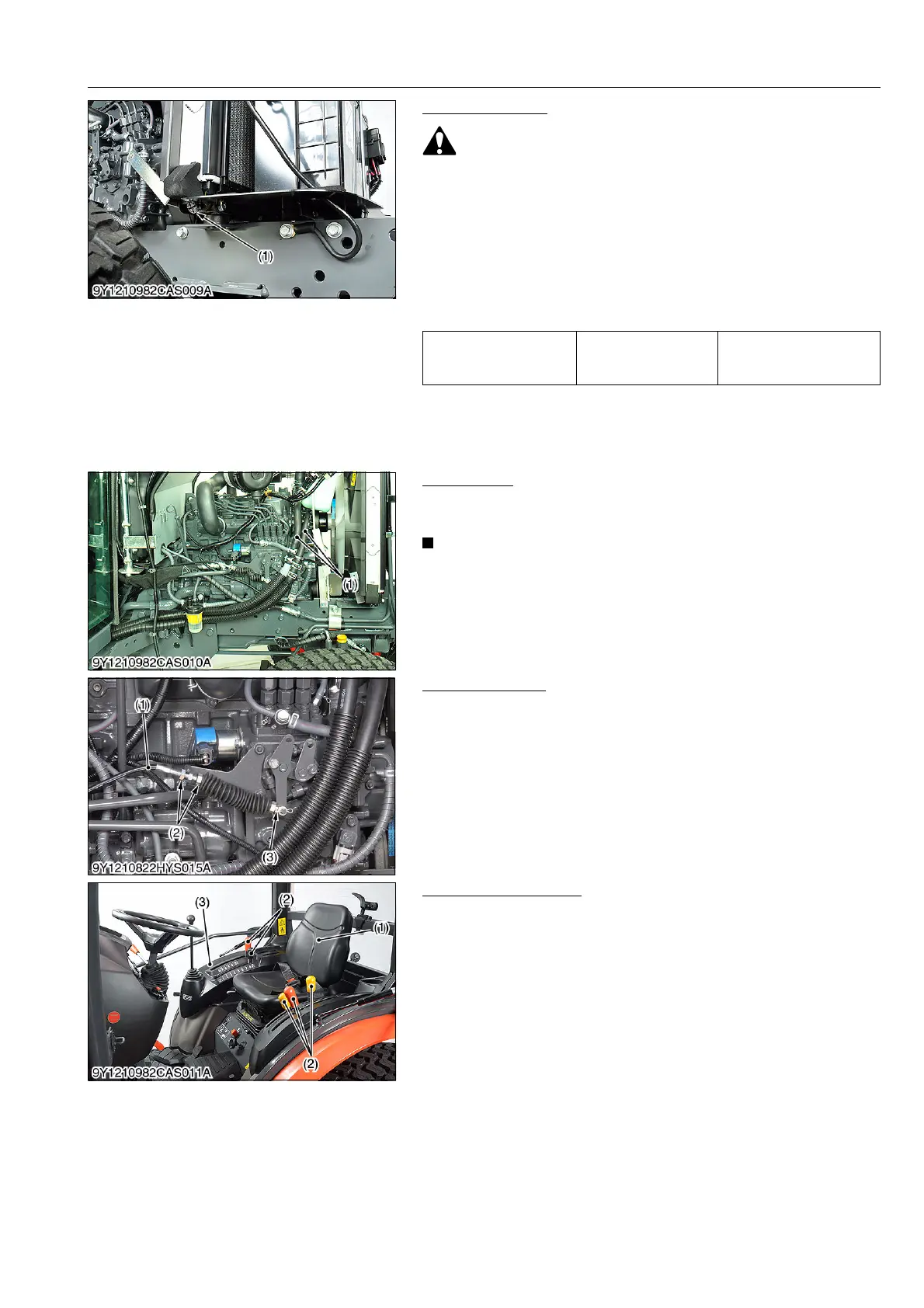

Draining Coolant
• Never remove the radiator cap until coolant temperature is
well below its boiling point. Then loosen cap slightly to the
stop to relieve any excess pressure before removing cap
completely.
1. Stop the engine and let cool down.
2. To drain the coolant, turn the drain plug (1) counterclockwise.
3. Remove the radiator cap to completely drain the coolant.
4. After all coolant is drained, reinstall the radiator drain plug.
(When reassembling)
9Y1210982CAS0076US0
(2) Separating Transmission from Tractor Body (CABIN)
Heater Hose
1. Disconnect the heater hoses (1), and then reconnect their
hoses to make loop.
• Put a mark to the each heater hoses before disconnecting.
9Y1210982TRS0009US0
Accelerator Wire
1. Disconnect the accelerator wire (1).
(When reassembling)
• Set the end of wire inner (3) first. Then adjust the length of the
wire outer section so that the wire inner section has no play, and
tighten the lock nut (2).
9Y1210982TRS0010US0
Seat and Lever Guide
1. Disconnect the OPC switch connector and remove the seat (1).
2. Remove the each lever grips (2).
3. Remove the lever guides (3).
9Y1210982TRS0011US0
Coolant Capacity
4.3 L
4.5 U.S.qts
3.8 Imp.qts
(1) Drain Plug
(1) Heater Hose
(1) Accelerator Wire
(2) Lock Nut
(3) Accelerator Inner
(1) Seat
(2) Lever Grip
(3) Lever Guide
To Next Page
