18 Setting Up with M80/M800S SETUP INSTALLER
414
IB-1501269-J
*4 APLC C language module
- The size of APLC C language module must be 120KB or less.
*5 User cycle
For details of user cycle, refer to "M800/M80 Series Interactive Cycle Insertion (Customization) Specification
manual" ( BNP-C3072-121-0003).
*6 Data storage capacity
Storage capacity of the installation data is as follows:
* For custom screen module, the capacity limit is up to 6MB.
* Storage capacity is calculated on built-in memory; thus, it may be different from the data size on
installation medium.

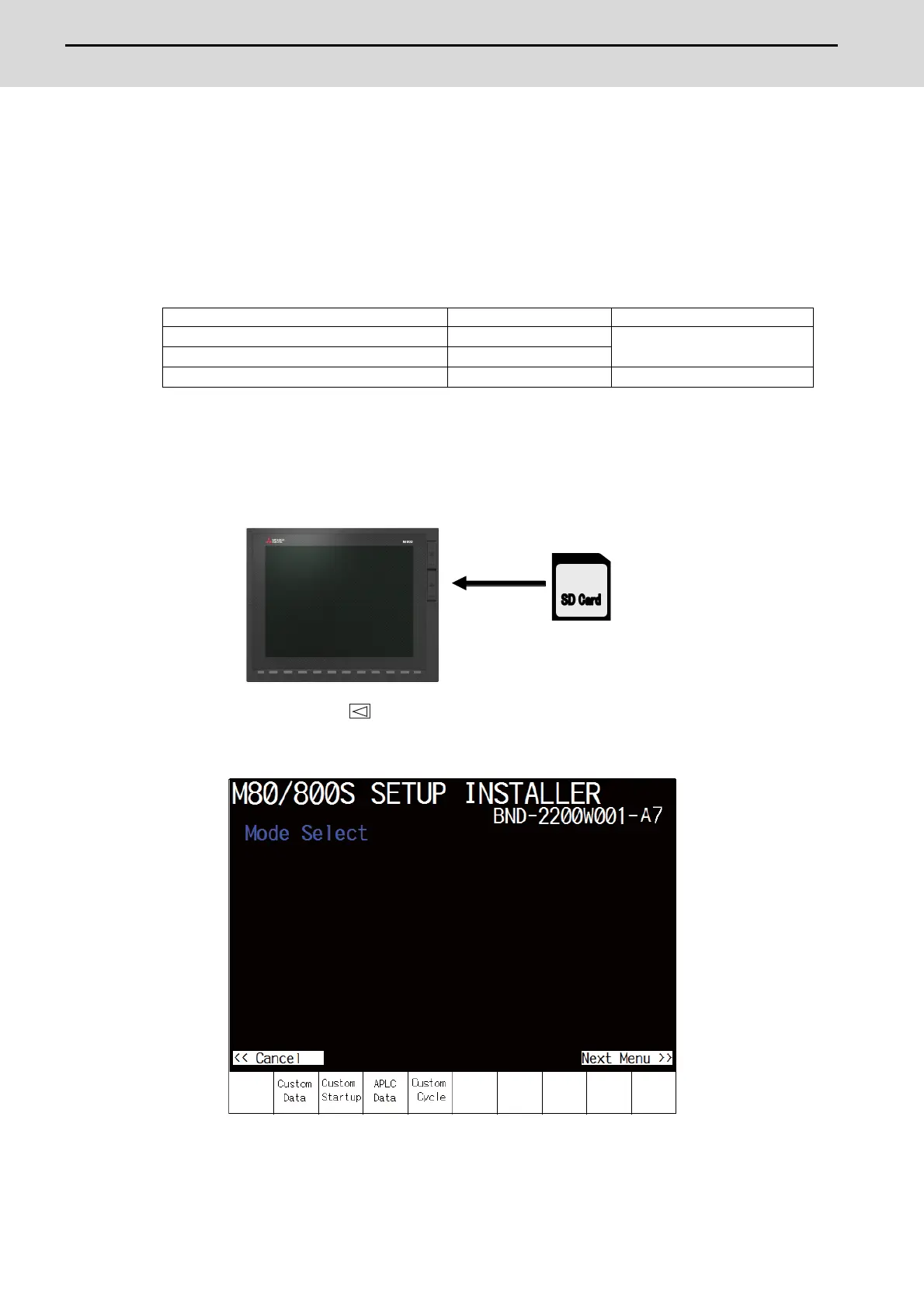

(2) Insert an SD card of the M80/M800S SETUP INSTALLER into the front-side SD interface.
(3) Turn ON the power while pressing Return key.
-> Some time after the start-up screen is opened, "M80/M800S SETUP INSTALLER" is activated with a beep
sound.
Install data Data storage size General description
Custom data (*) 12MB or less
Size on disk
User cycle (*) 30MB or less
APLC C language module (aplc.o) 120KB or less Module size
Displayunit
SD
card

Mitsubishi M80 series Specifications

General

Type	CNC Control Unit
Power Supply	24V DC
Interpolation	Linear, circular, helical
Fieldbus	CC-Link
Operating Temperature	0 to 45°C
Interface	USB, RS-232
Processor	RISC processor
Ethernet	Yes (100BASE-TX/10BASE-T)
