Only the devices listed in Compatible
Notification Appliances, P/N 315-
096363 may be used. The UL identifi-
ers for compatibility are the same as
the model names specified.
NOTIFICATION APPLIANCES
(NFPA 72 Local)
All wiring must be in accordance with
Article 760 of NEC and the local build-
ing codes.
CSM-4 CCSM-4 C
CSM-4 CCSM-4 C
CSM-4 C
onnectonnect
onnectonnect
onnect
ions and Rions and R
ions and Rions and R
ions and R
atat
atat
at
ingsings
ingsings
ings
4 - 15

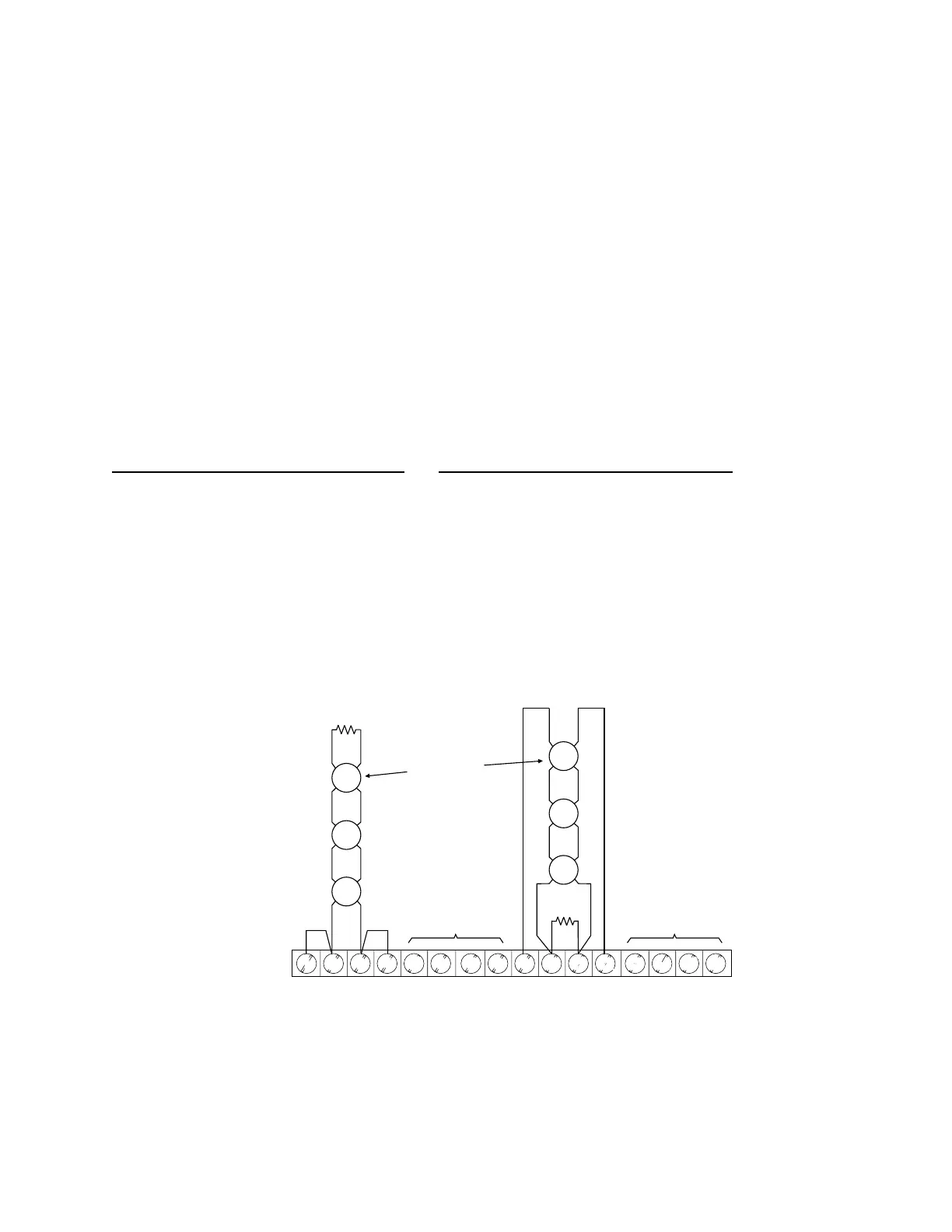

CSM-4 Loop Wiring for Supervised Notification Appliance Circuit
Electrical ratings:
Supervisory 24V unfiltered,
full wave rectified
12mA max
Alarm 24V unfiltered,
full wave rectified
1.5A max
NOTES
1. Power limited to
NFPA 70 per NEC 760.
2. Minimum wire size:
18 AWG.
3. Maximum resistance:
3 ohms total.
4. End of line device:
2.2K, ½W,
P/N 140-820380.
5. Either circuit may be
wired Class A or B.
6. Both circuits are
supervised.
7. Polarity shown in
supervisory state.
1 2 3 4
5
6 7 8 9 10
11 12
13 14 15 16
MOM-4
MOM-2
(TB1, TB2, TB3, or TB4)
or
(TB2 or TB4)
+
-
CIRCUIT 2
STYLE Z
(CLASS A)
+
-
STYLE Y
(CLASS B)
CIRCUIT 1
2.2K, 1/2W
2.2K,
1/2W
NO CONNECTION
NOTIFICATION
APPLIANCES
NO CONNECTION
