Siemens Cerberus PYROTRONICS MXL User Manual

Electrical ratings:
RS-232C Interface V
MAX
: ±12 VDC
I
MAX
: ±5mA
Maximum cable length
25 feet (2 ohms max per circuit)
PIM-1 Connections and Ratings
4 - 65
CAUTION
This table refers to whether or not the wiring connections are supervised. The table does not refer to the type of printer used in the System.
NOTES
1. Terminals TB1-8 and 9
are connected together
on the PIM-1.
2. The busy signal from
the printer prevents the
loss of characters if
the printer falls behind.
Refer to the printer
manual for the proper
pin [usually 11 (TB1-3)
or 20 (TB1-9)].

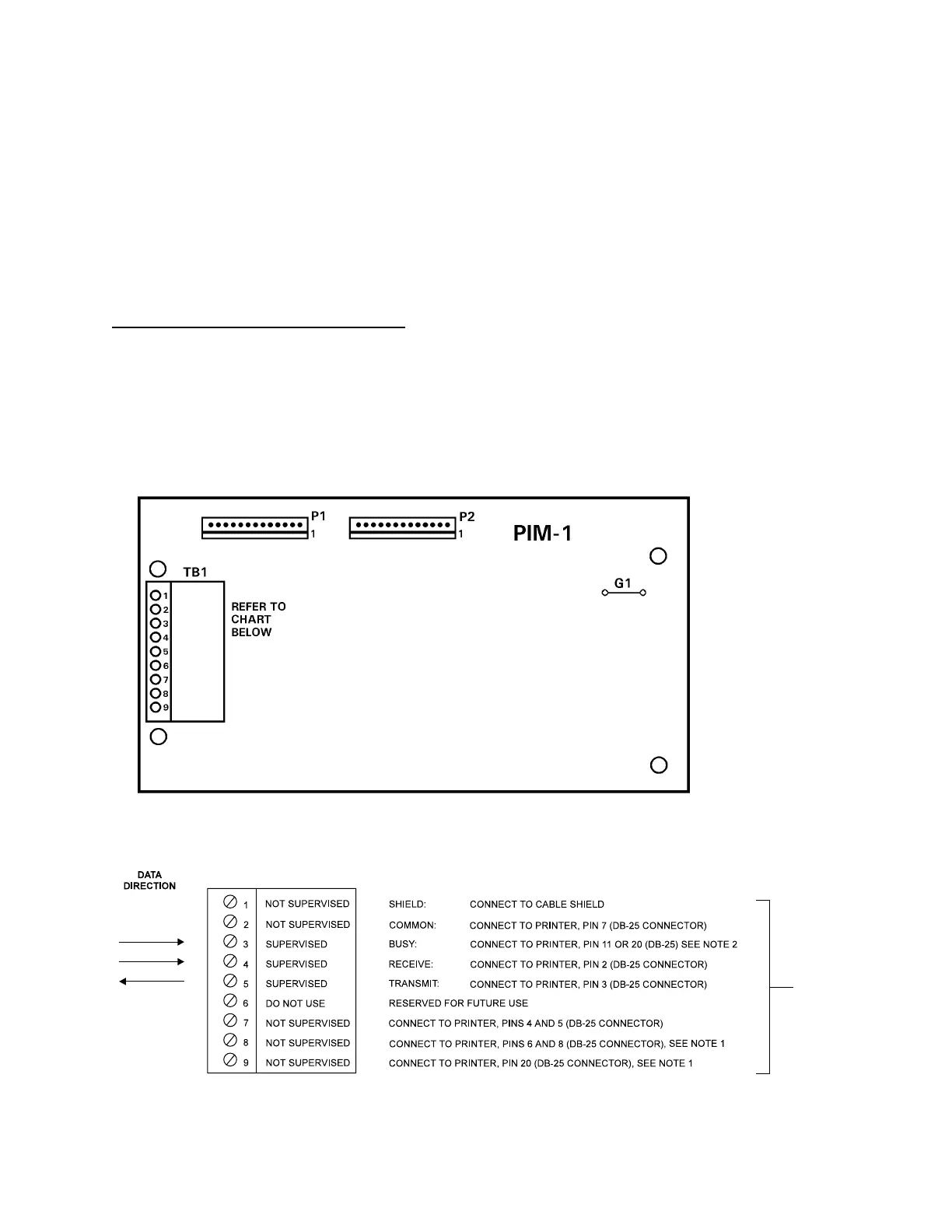

PIM-1 Wiring
POWER LIMITED
Leave jumper G1 in
place if the System
printer is supervised.
Cut jumper G1 if
the System has an
unsupervised
printer.
TB1
