Description
PIM-2 Peripheral Interface Module
and PAL-1 Parallel Printer
The PIM-2 module is an interface that
allows the connection of UL listed EDP
parallel printers to the MXL and CXL
Systems. It converts the RS-232C
(serial) printer outputs of these two
systems to a Centronics parallel
interface.
When used with the PAL-1, the PIM-2
provides a supervised parallel printer
(NFPA 72 Proprietary) for any one of
the systems listed above. However,
this configuration is not supervised for
data integrity. For NFPA 72 Local any
EDP UL listed equipment may be used.
D2300CP Fiber Optic Interface
The D2300CP is a Fiber Optic interface
for the MXLs RS-485 network, MNET
or XNET. It uses a two-fiber (Duplex)
pair between each device. The
D2300CP can function as either a
repeater or an end point unit.
The D2300CP can operate in either a
daisy chain or star configuration. This
allows for network configurations that
are not possible with the RS-485
network alone.
WARNING:
The D2300CP module is not listed for
use by Factory Mutual. Applications
requiring fiber connectivity of voice
modules/systems are therefore not
listed.

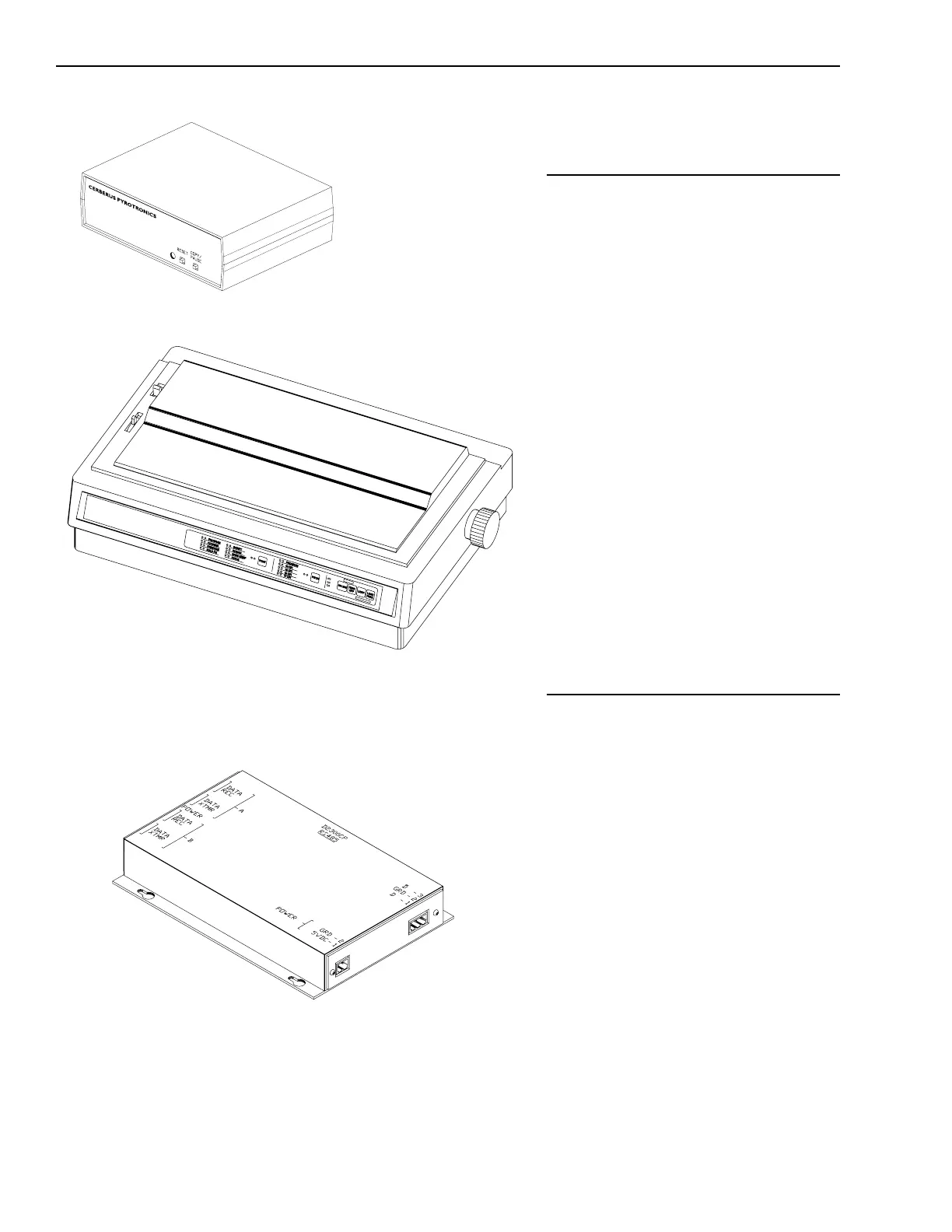

D2300CP Fiber Optic Interface
PIM-2 Peripheral Interface Module
PAL-1 Parallel Printer
