2 - 8
Installation
Installing Card Guides on the OMM
Mounting the OMM Card Cage
The OMM mounts vertically on the
MBR-MP mounting plate below the
MMB-1/-2 or the PSR.
Hold the OMM-1 so that the two posi-
tion terminal block TB1 is at the top.
Place the module on the mounting
studs in the left-hand position of the
MBR-MP mounting plate.
Fasten the OMM in position with
the No. 10 nuts provided.
To mount any other OMM modules
used in the system, repeat the
above steps. Use the center or right-
hand position for the additional
modules as needed.
Installing the TSP-40 Printer
NOTE: Only two MOM or OMM card
cages can be mounted if a TSP-40
printer is installed.
Place the TSP-40 over the four studs
on the MBR-MP mounting plate be-
low and to the right of the MMB-1/-2.
Secure in place using the hardware
provided.
Electrical Installation
The TSP-40 comes with two attached
cablesa 2-conductor power cable
and a 6-conductor data cable.
Connect the 6-conductor data cable
to P4 on the MMB-1/-2 or P4 on the
PSR-1.
If there is no MOM installed,
connect the 2-conductor power
cable to P3 on the MMB-1/-2 or P1
on the PSR-1.
If there is a MOM installed, con-
nect the 2-conductor power cable to
P8/P5 on the MOM.
Installing the MOM or OMM on the Mounting Plate
Fasten the MOM in position with
the No. 10 nuts provided.
To mount any other MOM modules
used in the system, repeat the
above steps. Use the center or right-
hand position for the additional
modules as needed.

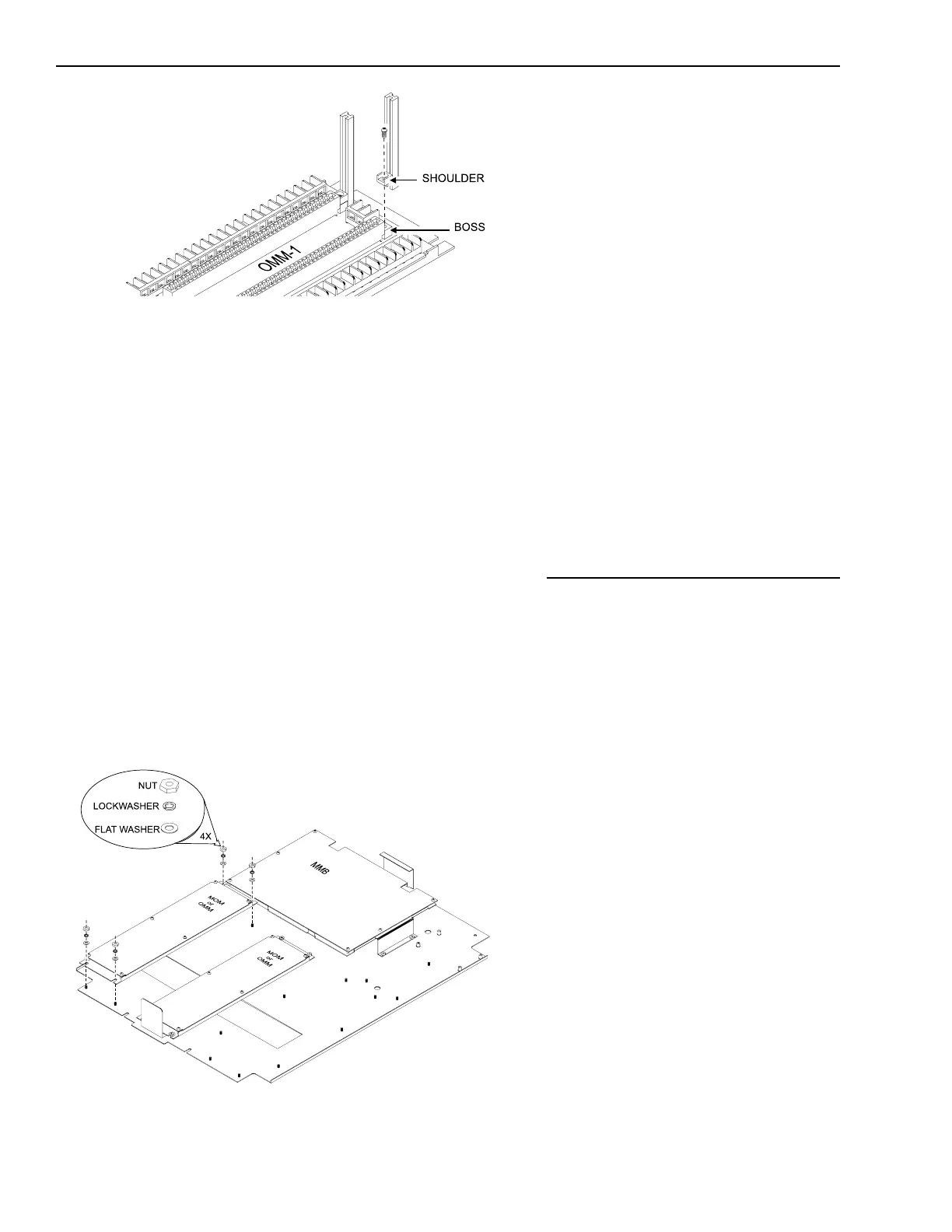

Installing the Card Guides on the OMM
The plug-in modules are supported by
card guides installed using the follow-
ing procedure:
Place the card guide shoulder on the
raised boss at the end of the card
edge connector.
Align the hole in the shoulder with
the hole in the boss.
Place the mounting screw in the
hole in the shoulder and tighten the
screw.
