2 - 26
Installation

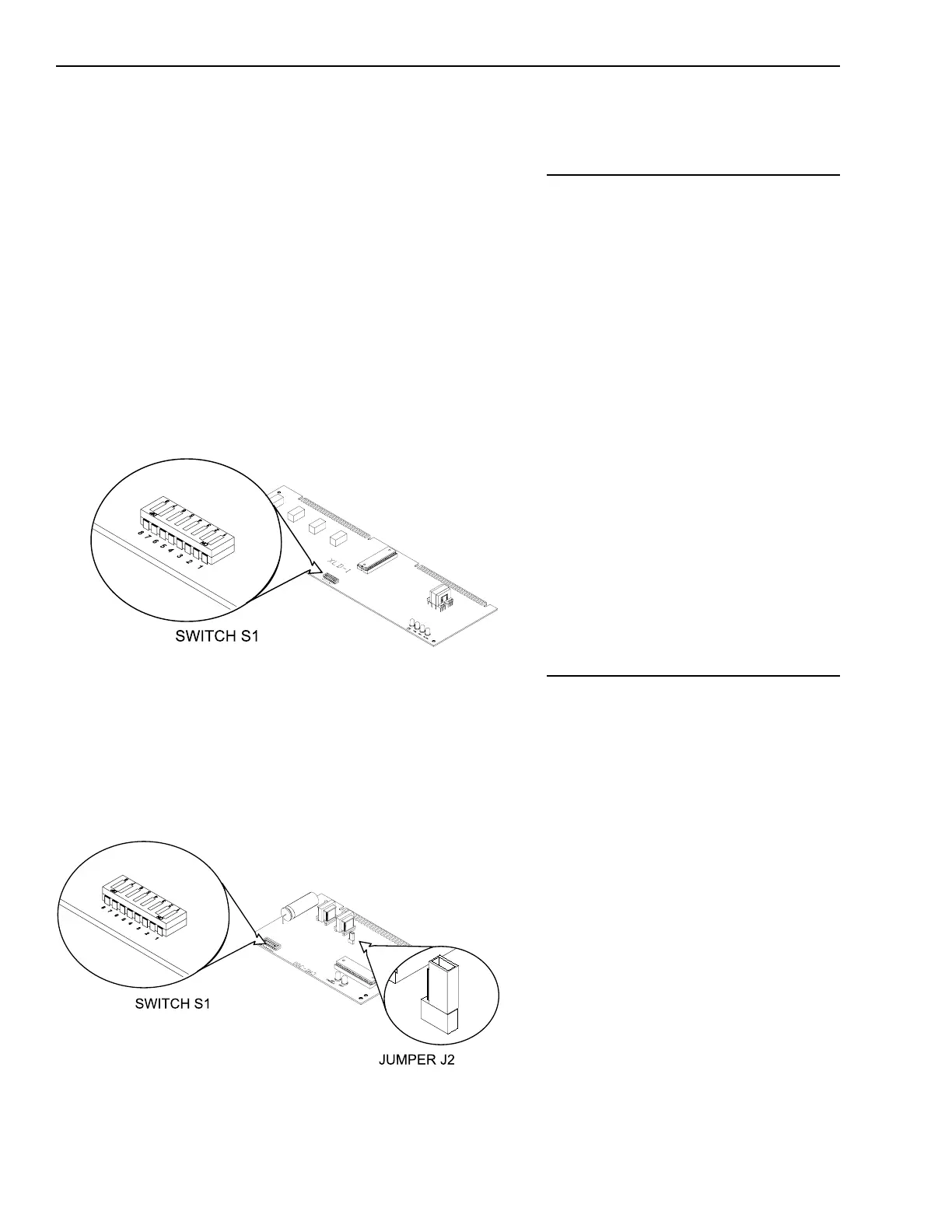

Switch S1 and Jumper J2 on the CMI-300
After the address is set, install the
ALD-2I in the MOM, being sure that the
module is riding in the card guides and
is firmly seated in the card edge con-
nector. Eliminate all troubles from each
ALD-2I before installing the next one.
Installing the XLD-1
The XLD-1 module plugs into a full-
width slot on the MOM.
Setting the Address on the XLD-1
Before installing the XLD-1 in the
MOM, set the network address on
switch S1. Set it to the lowest of the
four corresponding addresses selected
for it in the CSG-M. (The lowest
address must be odd.) Use the Net-
work Address Programming Table at
the end of this chapter to set the
address for this switch.
After the address is set, install the
XLD-1 in the MOM, being sure that the
module is riding in the card guides and
is firmly seated in the card edge
connector.
Installing the CMI-300
The CMI-300 module plugs into one
half-width slot on the MOM.
Check that there is a jumper installed
for Jumper J2, pins 1 and 2.
Setting the Address on the CMI-300
Before installing the CMI-300 in the
MOM, set the network address on
switch SW1. Use the Network Ad-
dress Programming Table at the end of
this chapter to set the address for this
switch.
After the address is set, install the
CMI-300 in the MOM, being sure that
the module is riding in the card guides
and is firmly seated in the card edge
connector.
Switch S1 on the XLD-1
