Siemens Cerberus PYROTRONICS MXL User Manual

Electrical ratings:
Input voltage 24 VDC
Input current 40mA at 24 VDC
Battery Current 40mA at 24 VDC
REP-1 Connections and Ratings
4 - 103
Basic Repeater - Style 4
T-Tap Running In One Direction with
Style 4
Basic Repeater - Style 7
T-Tap Running in Two Directions with
Style 4
Conversion From Style 7 to Style 4
*Place a 120 ohm resistor, P/N 140-820150 where indicated

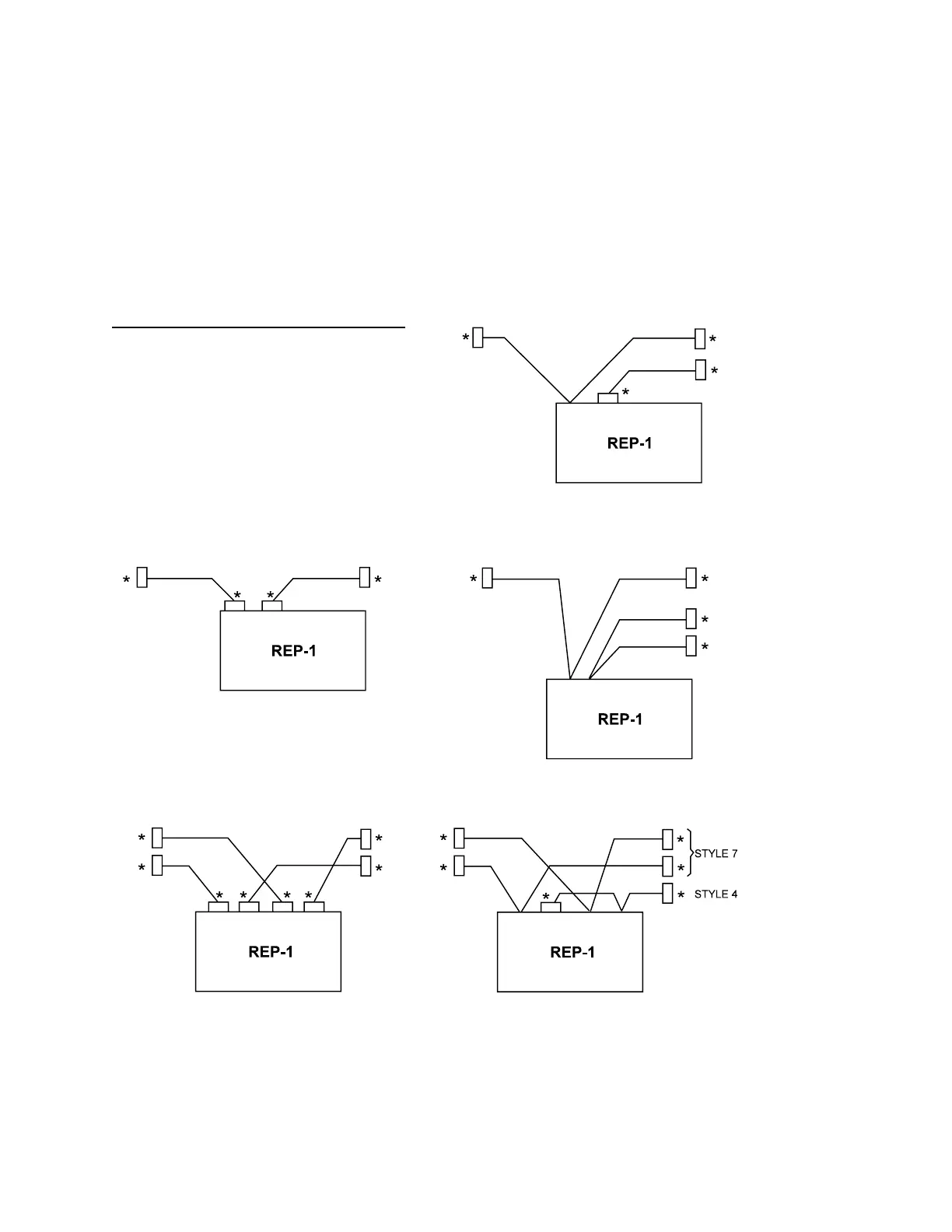

REP-1 Basic Wiring (Including Placement of EOL Resistors)
(TO RCC-1 /-1F
OR MOI-7
ONLY)
