2 - 18
Installation

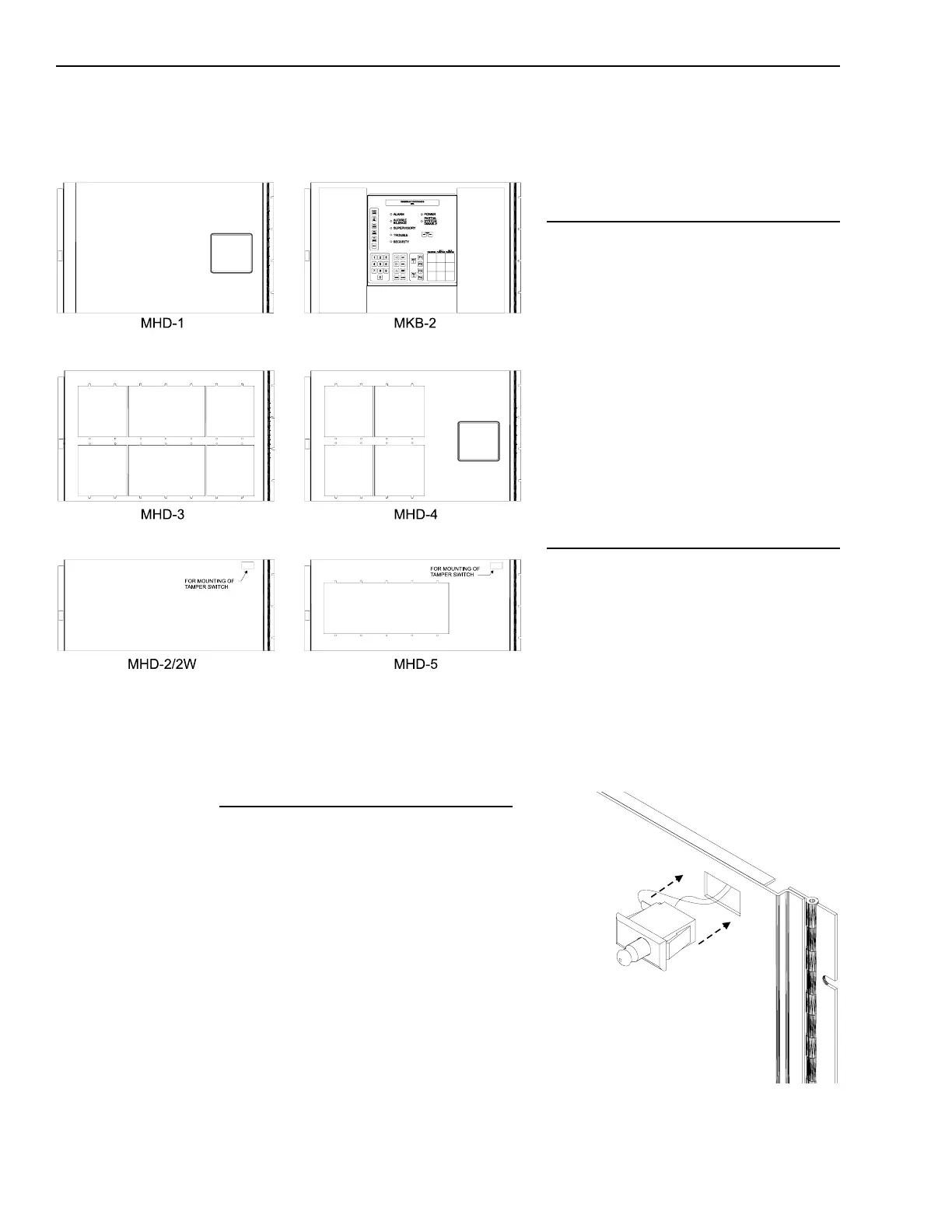

Installing the TSW-2 Tamper Switch
If your configuration (UL 1076) requires
the TSW-2 Tamper Switch, install it
now.
The TSW-2 mounts into the rectangu-
lar slot located in the upper right side
of the MHD-2/-2W or MHD-5 panel.
Place the cable/connector and the
switch terminals through the open-
ing and press firmly into place.
Plug the cable on the TSW-2 into P9
on the MMB-1/-2 or P3 on the PSR-1.
Installing the VSM/VLM/VFM/VSB
Modules
Each VSM-1/VLM-1/VFM-1 module
occupies one of up to 31 subaddresses
of the ACM-1. The VSB-1 Voice Switch
Blank Plate is used to fill in any blank
spaces on an MHD panel.
Installing the Tamper Switch
The MHD Panels
Installing the MHD Panels
The MHD series of panels is used
on the MME-3/MLE-6 backbox to
provide support for additional elec-
tronic modules or to provide dead front
panels where needed. The MHD
panels can be used as shown in the
table on the preceding page.
Select the MHD panels needed
for your system.
Install the appropriate MHD panels
on the right-hand side of the
MME-3/MLE-6 backbox using the
hardware supplied with each.
