PIM-2 / PAL-1
Connections and Ratings
4 - 67

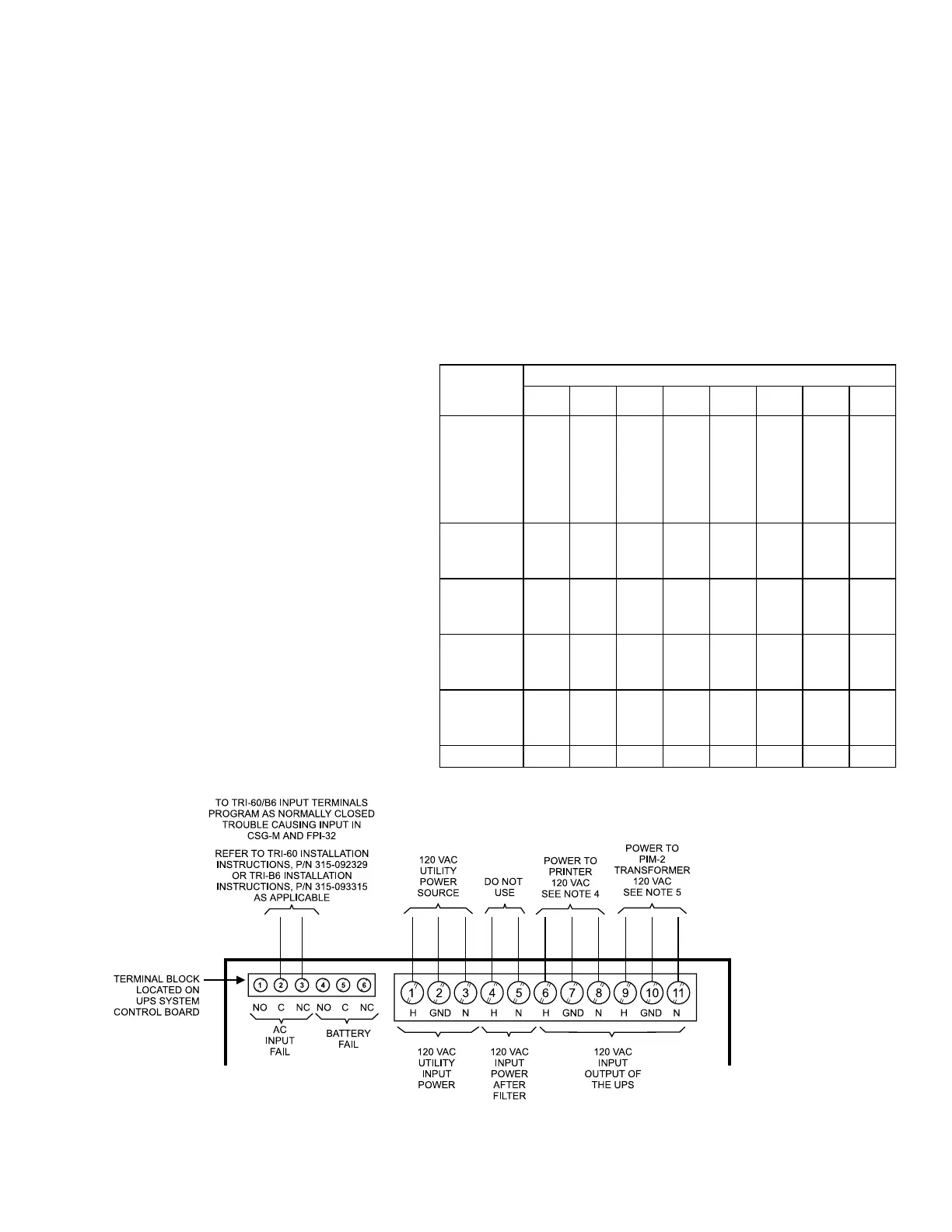

UPS Wiring for PIM-2
NOTES
1. Minimum wire size:
14 AWG, 600V
insulation.
2. Wiring to the printer
and PIM-2 must be 14
AWG min, 600V
insulation in conduit.
3. Use the UPS ICS
Lifeline Model 930057.
4. Standby Power
requirements:
120 VAC, 0.6A for
24 hours.
5. Standby Power
requirements:
120 VAC, 0.15A for
24 hours.
PIM-2 SERIAL INTERFACE COMMUNICATION PARAMETERS
Dipswitch Position (SW1) - Located at rear of PIM-2
1 2 3 4 5 6 7 8
Baud Rate
9600
4800
2400
1200
300
OFF
ON
OFF
ON
ON
ON
ON
OFF
OFF
ON
OFF
OFF
ON
ON
ON
Data Bits
8
7
OFF
ON
Parity
Even
Odd
OFF
ON
Parity
Disable
Enable
OFF
ON
Flow Control
Hardware
Software
OFF
ON
Port Type OFF
NOTE: When setting switch S1,
OFF = UP = OPEN
ON = DOWN = CLOSED
