2 - 42
Installation

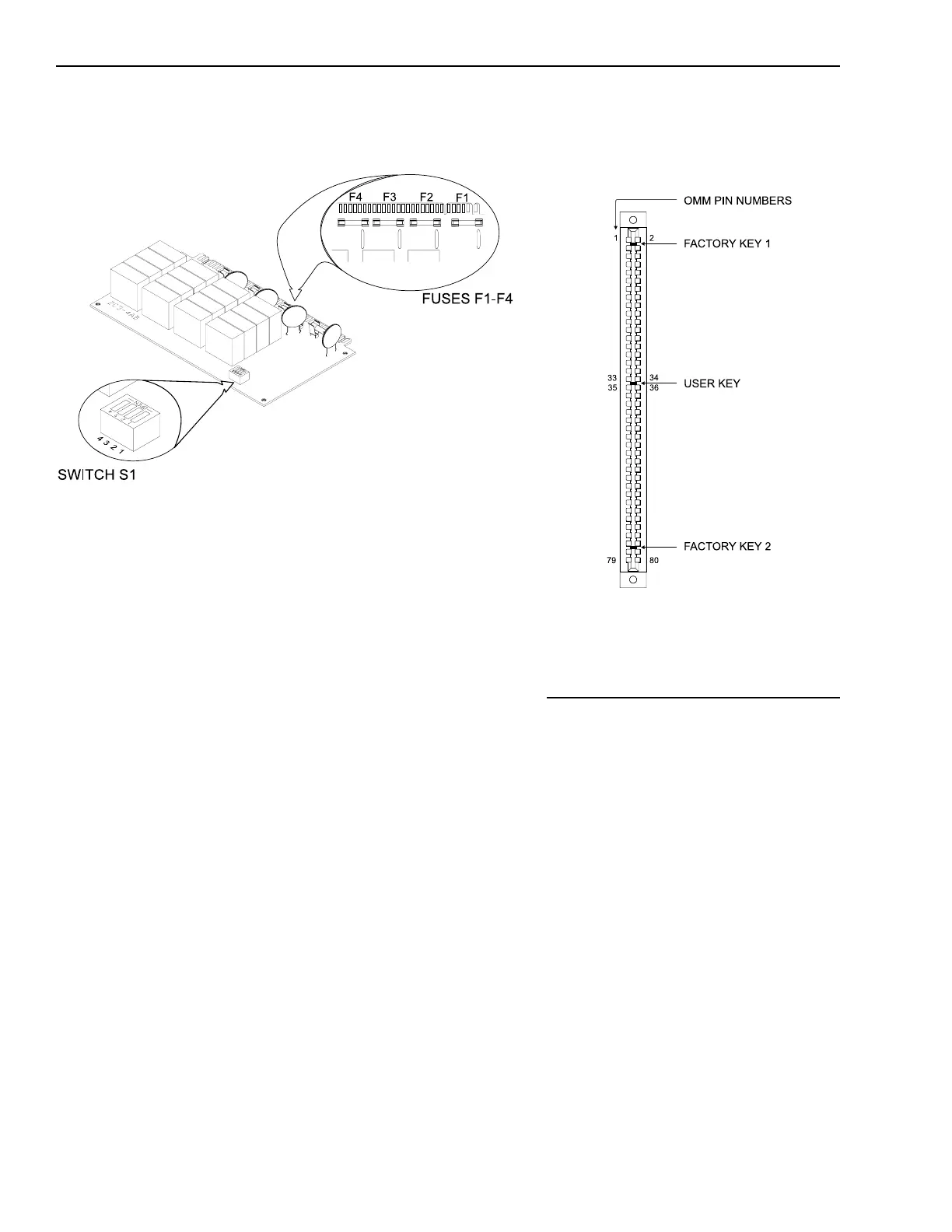

Switch S1 and Fuses F1-F4 on the ZC3-4AB
Location of the User Key for the ZC3-4AB
ZC3-4AB Fuses
The ZC3-4AB comes with 70V fuses,
P/N 105-291202, installed at the
factory.
For 25.2V Installations, remove the
70V fuses, F1-F4 and install the 25V
fuses, P/N 105-291200, found in the
installation kit.
Place the user key from the installation
kit in the OMM-1 card edge connector
for the ZC3-4AB (between positions
33-34 and 35-36).
After the address is set, install the
ZC3-4AB in the OMM, being sure that
the module is riding in the card guides
and is firmly seated in the card edge
connector.
Installing the ZCT-8B
The ZCT-8B plugs into a half-width slot
on the OMM and comes with an
installation kit that consists of the
following:
Eight end of line resistors,
P/N 140-383467
One user key
Setting the Address on the ZCT-8B
Before installing the ZCT-8B in the
OMM, set the addresses on S1, DIP
switches SW1-SW4. Refer to the
CSG-M configuration printout for the
address of the module. Use the
ZCT-8B S1 Settings table to set the
address for this switch.
