ALD-2I Analog Loop Driver
The ALD-2I Analog Loop Driver pro-
vides two signaling line circuits capable
of Style 6 (Class A) or Style 4 (Class B)
operation for monitoring analog de-
vices. Each loop is capable of monitor-
ing up to 60 analog devices. Each
device has its own address. You can
use the CSG-M to write a custom
message for each device (See the
CSG-M Programming Manual, P/N
315-090381).
XLD-1 Analog Loop Driver
The XLD-1 is an optional MXL network
module that connects XL3 analog
addressable devices to the MXL
System. Each loop is capable of
monitoring up to 30 analog devices.
The module uses four consecutive
network addresses on the System.
Devices connected to the XLD-1
circuits are supervised by the MXL
Control Panel.
CMI-300 Interface Module
The CMI-300 provides modem com-
munications between an MXL System
and a CXL System. The CMI-300
module is located on the MOM-4 board
in the MXL enclosure. The CMI-300
plugs into a half slot in the MOM-4. It
translates signals from the MXL com-
munication lines of the MMB-1/-2 to
CXL modem signals. This signal is then
transmitted along suitable cable to the
CXM-1 modules in the CXL enclosure.

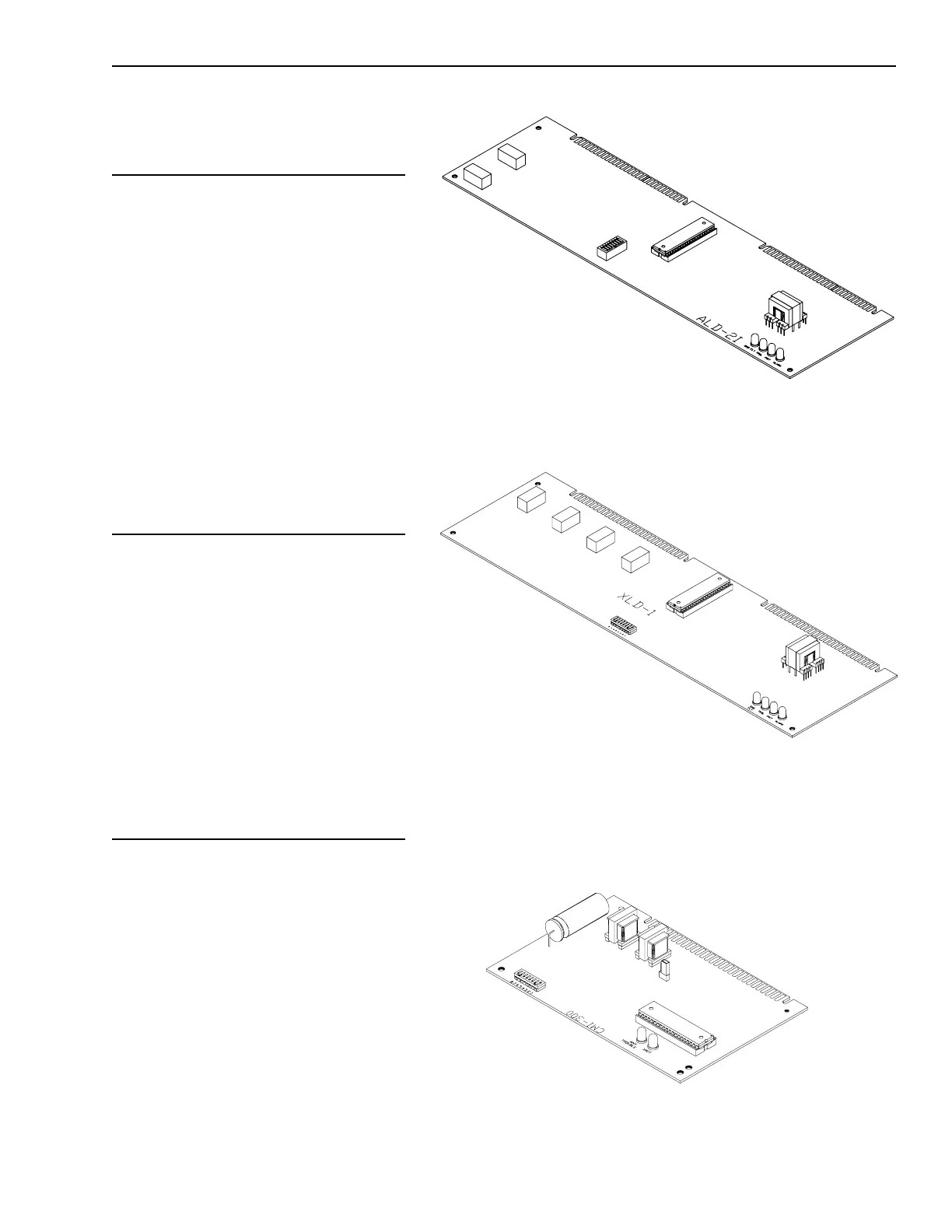

ALD-2I Analog Loop Driver
CMI-300 Interface Module
XLD-1 Analog Loop Driver
