Siemens Cerberus PYROTRONICS MXL User Manual

1-16
Description

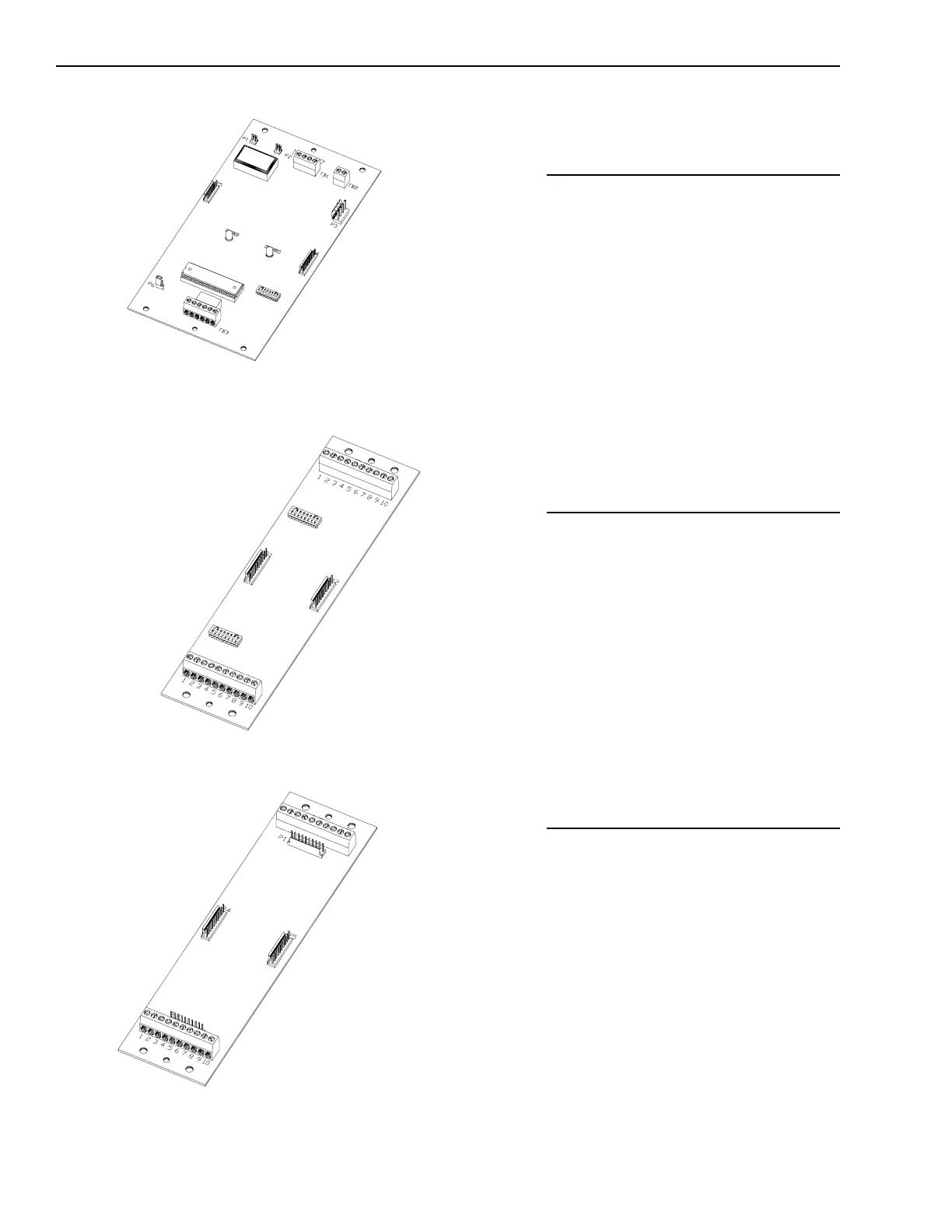

MOI-7 Voice and Annunciator Driver
The MOI-7 is an MXL network module
that connects to a graphic annunciator
using MOD-16s and MID-16s.
The MOI-7 can be connected to either
Style 4 or Style 7 wiring.
MOD-16 Output Driver
The MOD-16 Output Driver module is
a graphic annunciator driver controlled
by the MOI-7 module. Up to eight
MOD-16s can be used with an MOI-7.
Each MOD-16 can activate up to 16
outputs for a total of 128 outputs.
MID-16 Input Driver
The MID-16 module provides 16 general
purpose inputs for user defined opera-
tions for the MXL.
The MID-16 is controlled by the MOI-7
module. Up to eight MID-16s can be
used with an MOI-7. The function of
each individual input is defined by the
usage assigned to it in the CSG-M.
MOI-7 Voice and Annunciator Driver
MOD-16 Output Driver
MID-16 Input Driver
