Installation
Install the MPS-6 or MPS-12
The MXL is designed to operate from a
120 VAC, 60 Hz power source. Use a
separate or dedicated circuitbreaker.
Wire in accordance with local codes
and Article 760 of the NEC, NFPA 70,
latest edition.
Run the earth ground from a suitable
source to the MPS-6/-6W or MPS-12/
-12W. Check local requirements. Con-
duit is not an acceptable conductor.
Make sure that the dedicated circuit-
breaker for the MXL is turned off at
the mains.

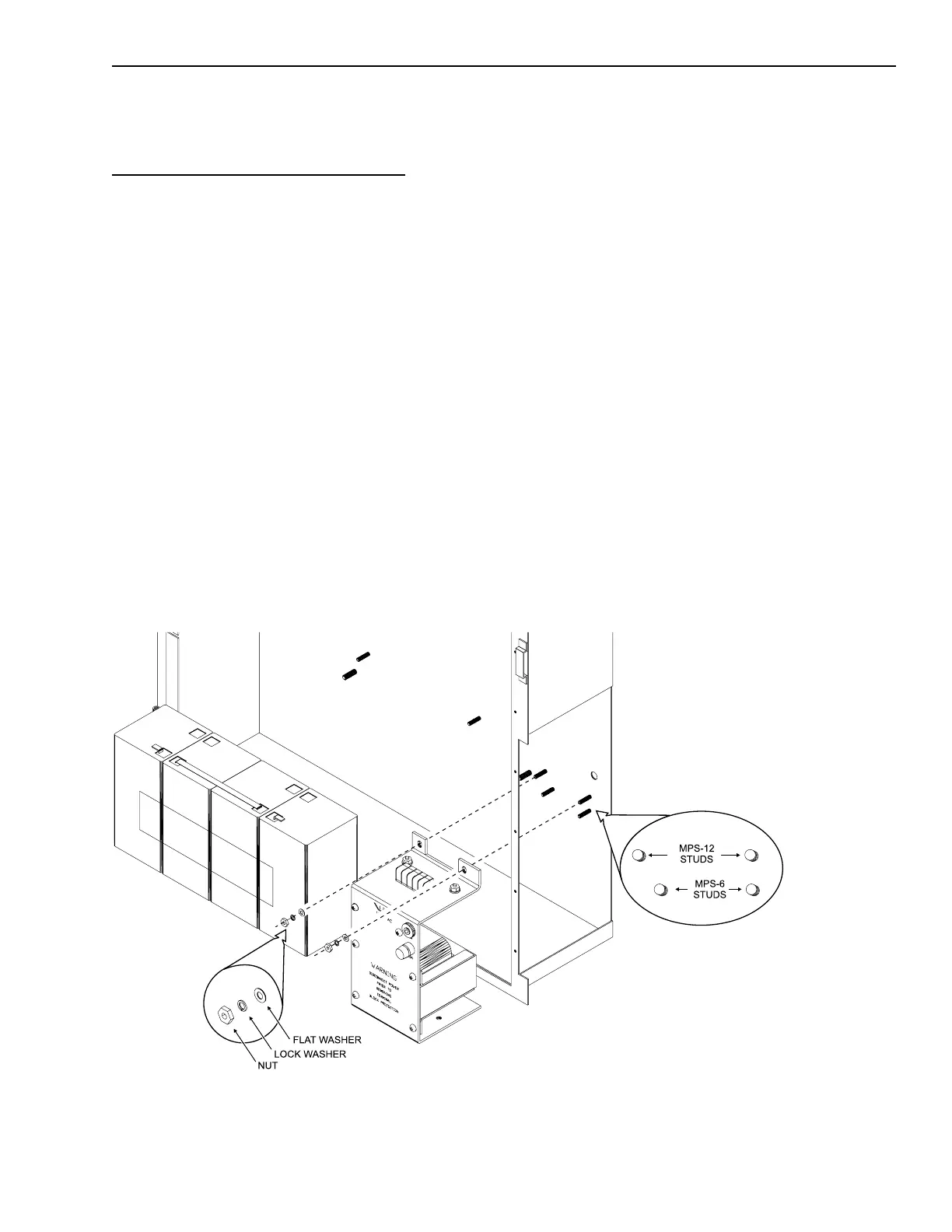

Place the mounting bracket for the
MPS-6/-6W or MPS-12/-12W over the
three studs provided in the MME-3/
MLE-6 enclosure.
Secure the MPS-6/-6W or MPS-12/-12W
to the MME-3/MLE-6 by slipping the
flat washers, then the lockwashers,
and finally the nuts over the two upper
studs. Tighten them securely.
Connect the AC mains to MPS-6/-6W
or MPS-12/-12W:
Terminal
Black (hot) 1
White (neutral) 2
Green (earth ground) 3
Install the 14 gauge green ground strap
spade lug side to Terminal 3 (green,
earth ground) of the MPS-6/6W or
MPS-12/12W. Secure the ring lug side
of the ground strap to the nearest
available stud in the enclosure. The
stud size may vary depending on the
