Description
The following modules are available as
options to the MXL Control Panel:
MOM-4 Card Cage
The MOM-4 Card Cage contains four
slots for optional module cards; it can
handle four half-width cards or two full-
width cards. The MOM-4 provides two
power connector receptacles and two
data connector receptacles. A 24 VDC
cable that provides the main power
used by the optional modules and an
eight-wire ribbon cable for connection
of 5 VDC and data are provided with
the MOM-4 installation kit.
A System with an MME-3 backbox
can
include as many as three MOM-4s
in
the backbox. If you install a printer in
that backbox, only two MOM-4s can
be installed.
MOM-2 Card Cage
The MOM-2 Card Cage provides the
MXL with two card slots for optional
modules. Each MOM-2 has space for
one full-width optional module or two
half-width optional modules. The
MOM-2 comes with two card guides
for mounting one full-width module.
The half-width modules come with the
necessary extra card guides for mount-
ing them.
The MOM-2 provides two power con-
nector receptacles, two power connec-
tion terminal blocks, and two data
connector receptacles. A 24 VDC cable
that provides the main power used by
the optional modules and an eight-wire
ribbon cable for connection of 5 VDC and
data lines are provided with the MOM-2
installation kit.

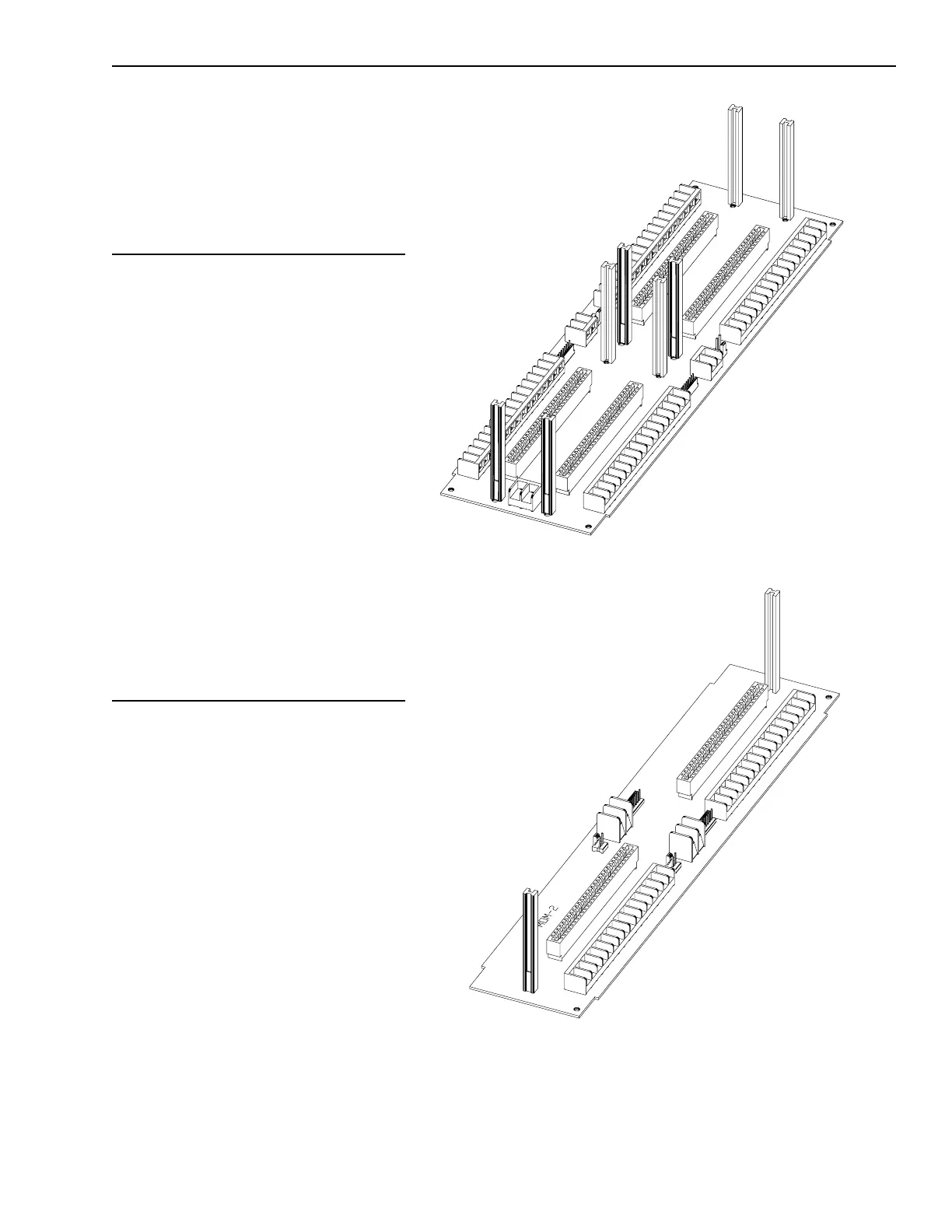

MOM-4 Card Cage
MOM-2 Card Cage
