Description
The PSR-1 module:
Acts as an interface between remote
option modules and the MXL when
used with a NET-4, NET-7 or NET-7M
plug-in communication module.
Can be used to power an MOI/MOD
annunciator driver set.
Can be used as an auxiliary power
supply in a stand-alone mode with-
out an MXL.
There are nine status indicators on the
PSR-1. There are also two relays used
for common alarm and common
trouble or, if programmed, for local
alarm and local trouble.
PS-5A Power Supply
The PS-5A is a power supply that can
be used with the D2300CP or MOI-7.
The power supply has enough power
to run both the D2300CP and MOI-7
modules.
PS-5N7 Network Interface/5V Power
Supply
The PS-5N7 permits remote mounting
of the MXL annunciator modules
MKB-1, MKB-2, and RCC-1. In addition,
when the PS-5N7 is used with a
PIM-1, it provides an interface for a
remote printer that can be supervised
or unsupervised. Each PS-5N7 occu-
pies one network node.

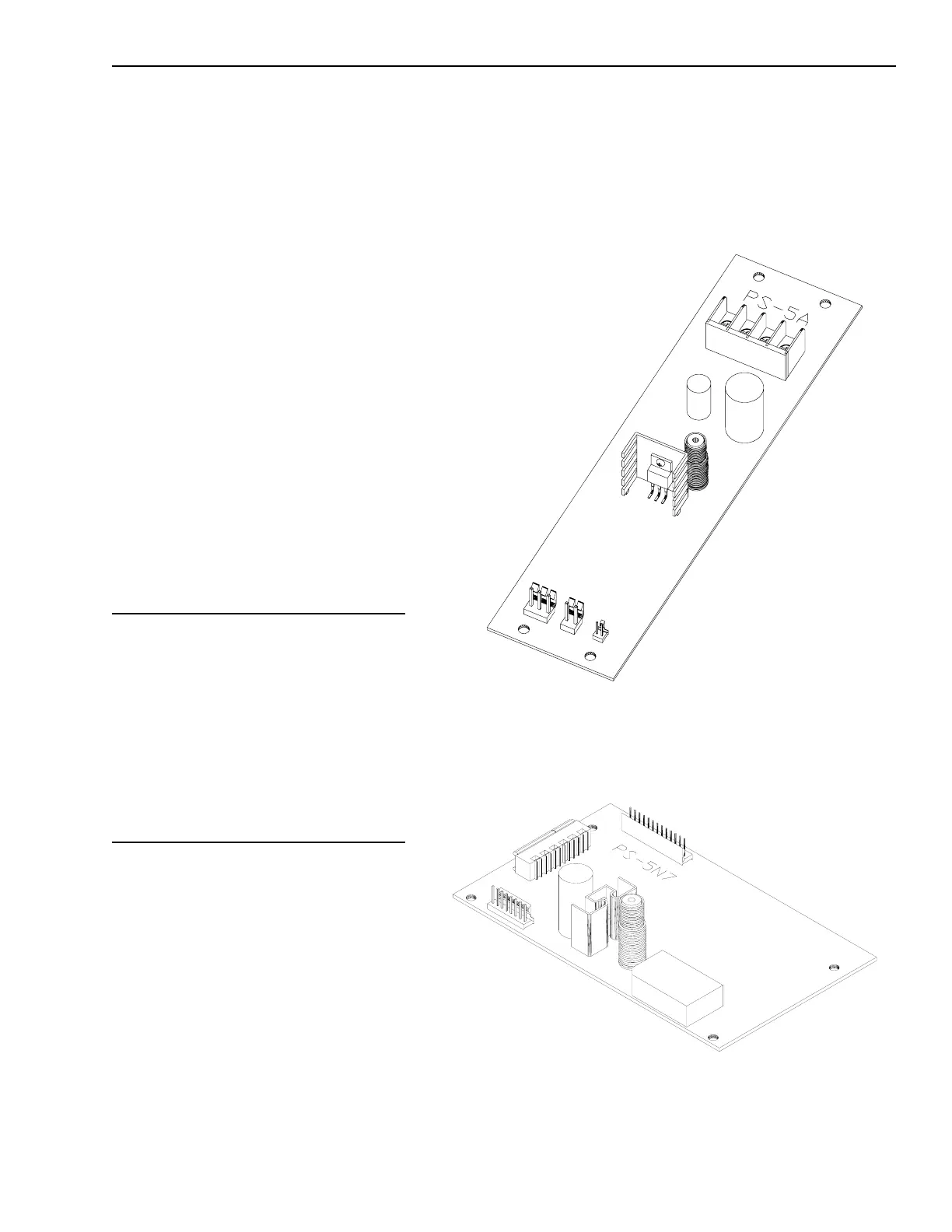

PS-5A Power Supply
PS-5N7 Network Interface/5V Power Supply
