Description

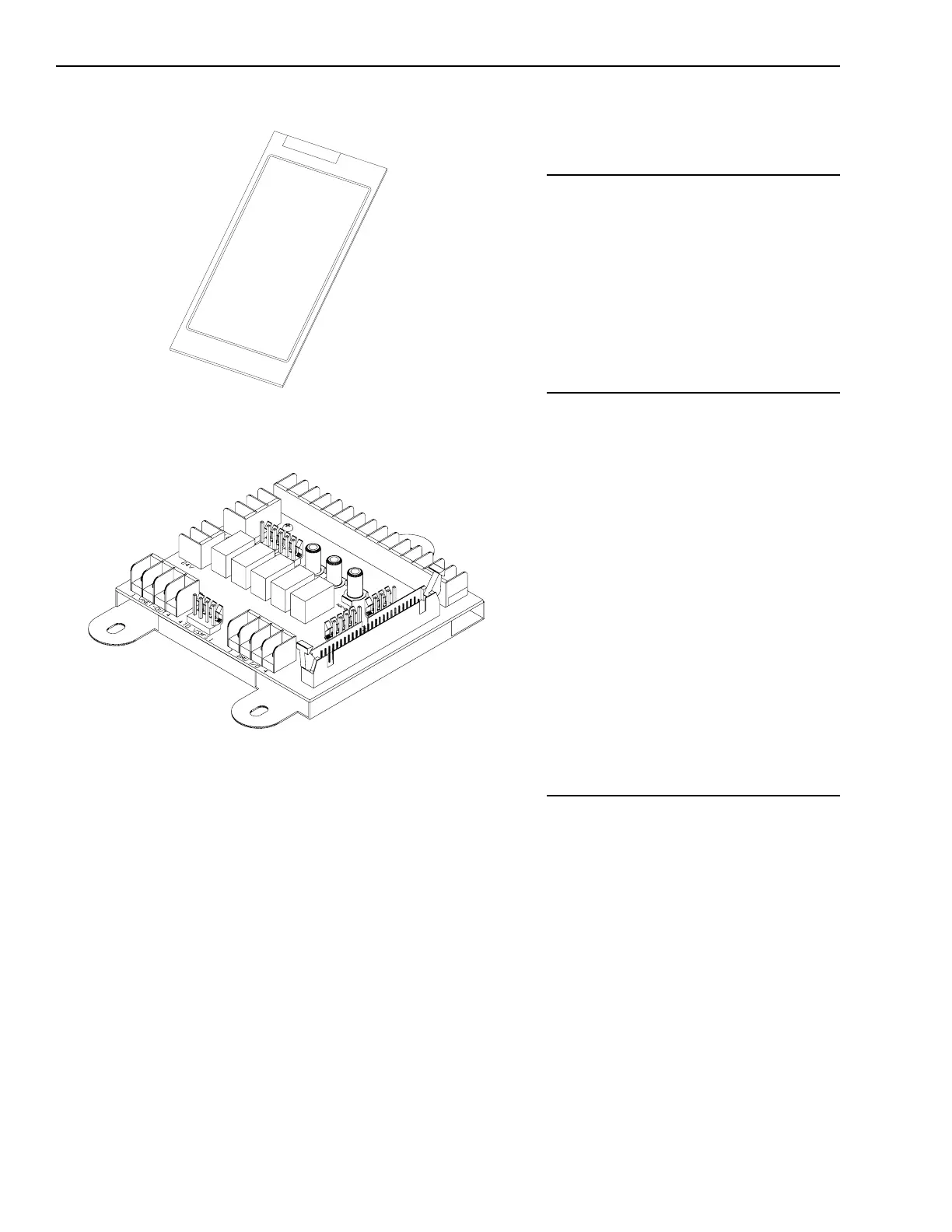

VSB-1 Voice Switch Blank Plate
The VSB-1 Voice Switch Blank Plate is
a blank plate used to fill in any empty
spaces on the MHD panel.
TBM-2 Termination Block Module
The TBM-2 is the central connection
point for audio functions in the MXLV
System. The ACM-1 Audio Control
module communicates with other
modules in the system through the
TBM-2.
In addition, the TBM-2 has connections
for the recording of telephone and
microphone messages, and the control
connections to activate recording
equipment.
OMM-1 Output Master Module
The OMM-1 Output Master module is
the card cage for all of the MXLV plug-
in boards: the OCC-1, ASC-1/-2, ZAC-30,
DMC-1, RCM-1, PLC-4 and ZC zone
cards. The module has the same
dimensions as the MOM-4 MXL card
cage. The OMM-1 mounts vertically in
the MME-3 enclosure and contains
four half-width card slots with card
guides.
All field wiring terminates on the
OMM-1 terminal blocks. Power and
network communications are provided
VSB-1 Voice Switch Blank Plate
TBM-2 Termination Block Module
