4 - 76
PS-5N7 Connections and Ratings

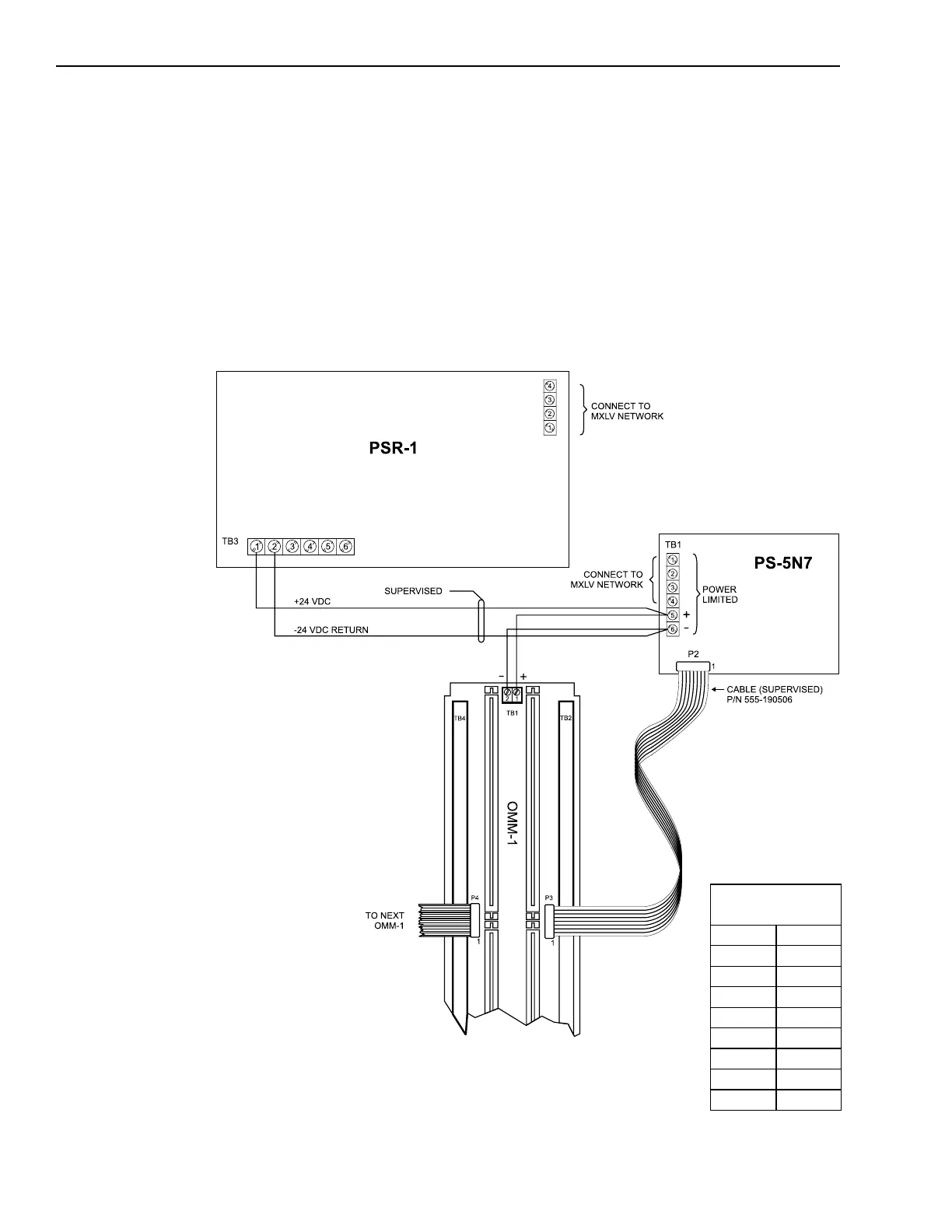

PS-5N7 and OMM-1 Wiring
CAUTION
Locate all equipment for
this configuration in the
same enclosure.
Refer to the following
Installation Instructions
for further information:
PSR-1 P/N 315-090911
OMM-1 P/N 315-090267
Using the PS-5N7 to Drive an OMM-1
In order to add Voice hardware to a
remote enclosure, use a PS-5N7
module to drive an OMM-1 if the
following conditions apply:
1. The remote enclosure is not con-
nected to the MMB-1/-2, and
2. There are multiple MXLs that are
not networked.
Adding a PS-5N7 and an OMM-1 under
there conditions provides power as
well as communication with the MXLV.
POWER
RESTRICTIONS
(5V max current =
500mA)
OMM-1 0mA
OCC-1 22mA
ASC-1 29mA
ASC-2 29mA
ZC1-8B 31mA
ZC2-8B 31mA
ZC2-4AB 30mA
ZC3-4AB 28mA
ZCT -8B 33mA
