Installation
can damage or displace other
components.
 Press firmly until the card seats in
the connector.
NOTE: All cards that are plugged into
the OMM must be positioned so that
the component side of the board faces
toward the outer edges of the OMM
(toward the 22-position terminal block
where the wiring terminates), as
illustrated.

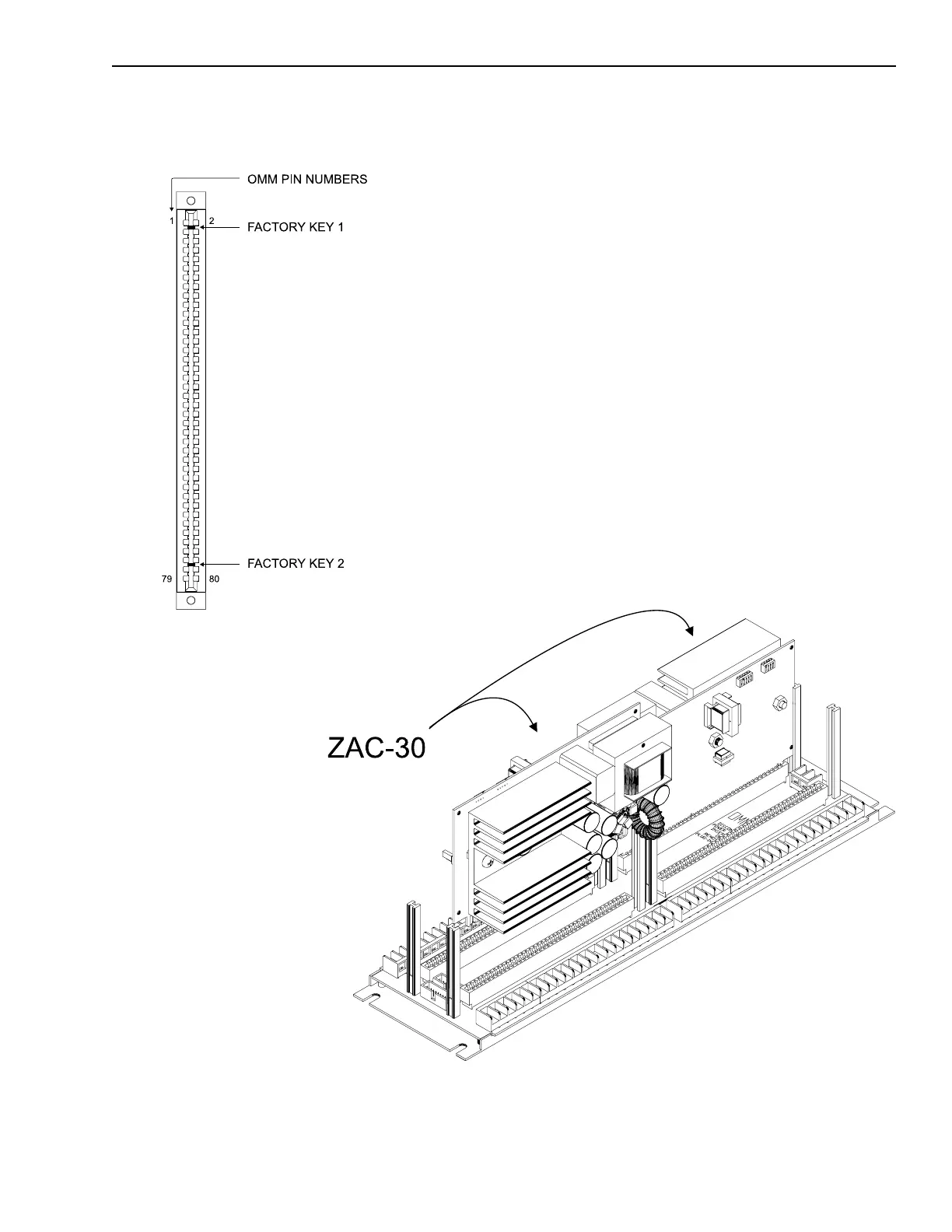

Location of the Factory Installed Keys
in the OMM Card Edge Connector
Installing Plug-in Cards into the OMM
