Xerox 8850 Service Manual

03/2003
4-25
8850/ 510DP
REP 8.1
Repairs and Adjustments
REP 8.1 Lower Sheet Feed Assembly
Parts List on PL 10.7
WARNING
Switch off the Printer Power Switch. Disconnect the Printer Power Cord.
Removal
1. Remove the Xerographic Module. Perform REP 9.1 Xerographic Module.
NOTE: In the following steps, the terms “Left” and “Right” describe machine locations as
observed when facing the Printer from the Roll Media Supply Drawer side.

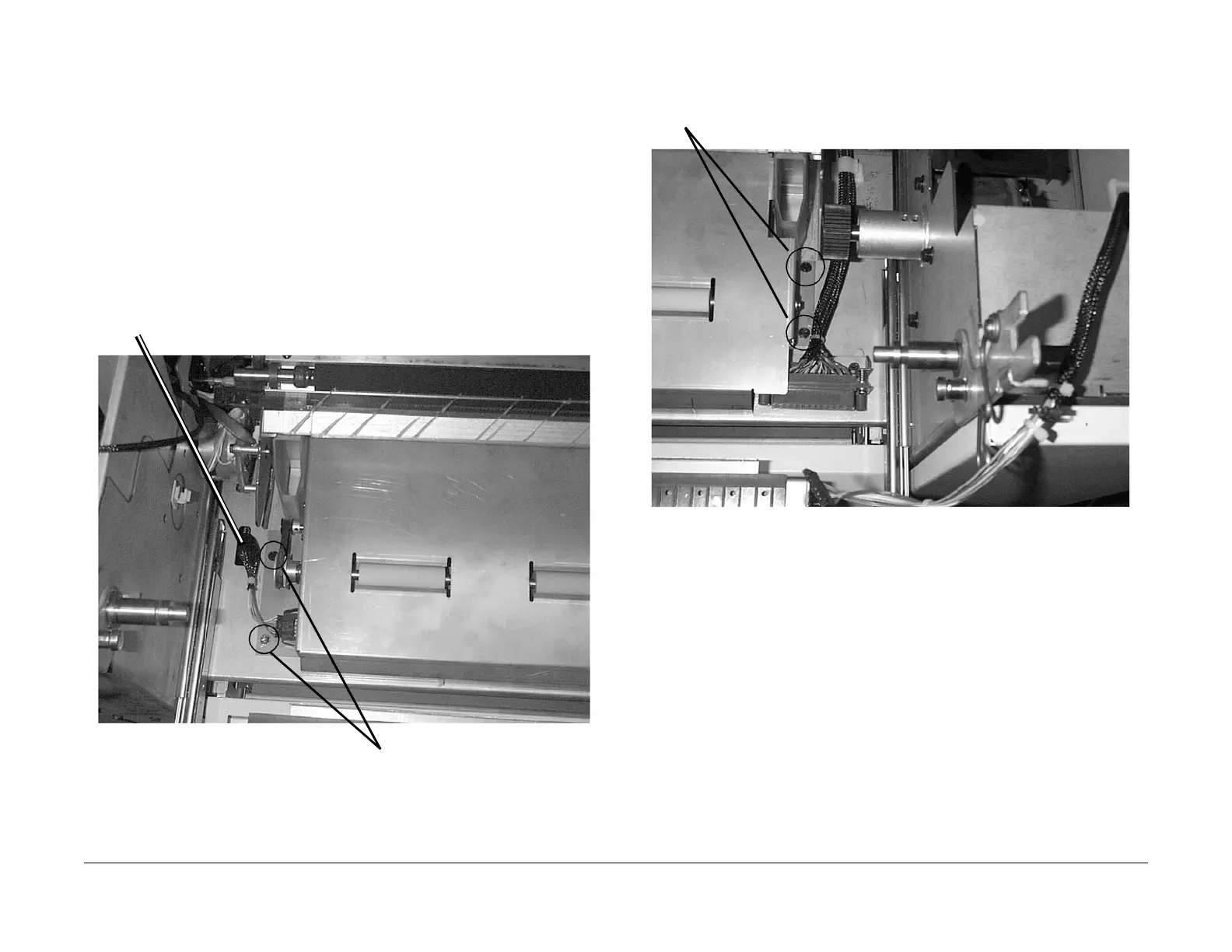

2. (Figure 1): Look down into the area previously occupied by the Xerographic Module. Pre-
pare the left side of the Lower Sheet Feed Assembly for removal.
Figure 1 Preparing the Lower Sheet Feed Assembly for Removal (Left Side)
3. (Figure 2): Prepare the right side of the Lower Sheet Feed Assembly for removal.
Figure 2 Preparing the Lower Sheet Feed Assembly for Removal (Right Side)
1
Disconnect P/J A28J1
2
Remove the two mount screws
Lower Sheet Feed Assembly
1
Remove the two mount screws
A27P1
