03/2003
5-23
8850/ 510DP
PL 9.1
Parts Lists

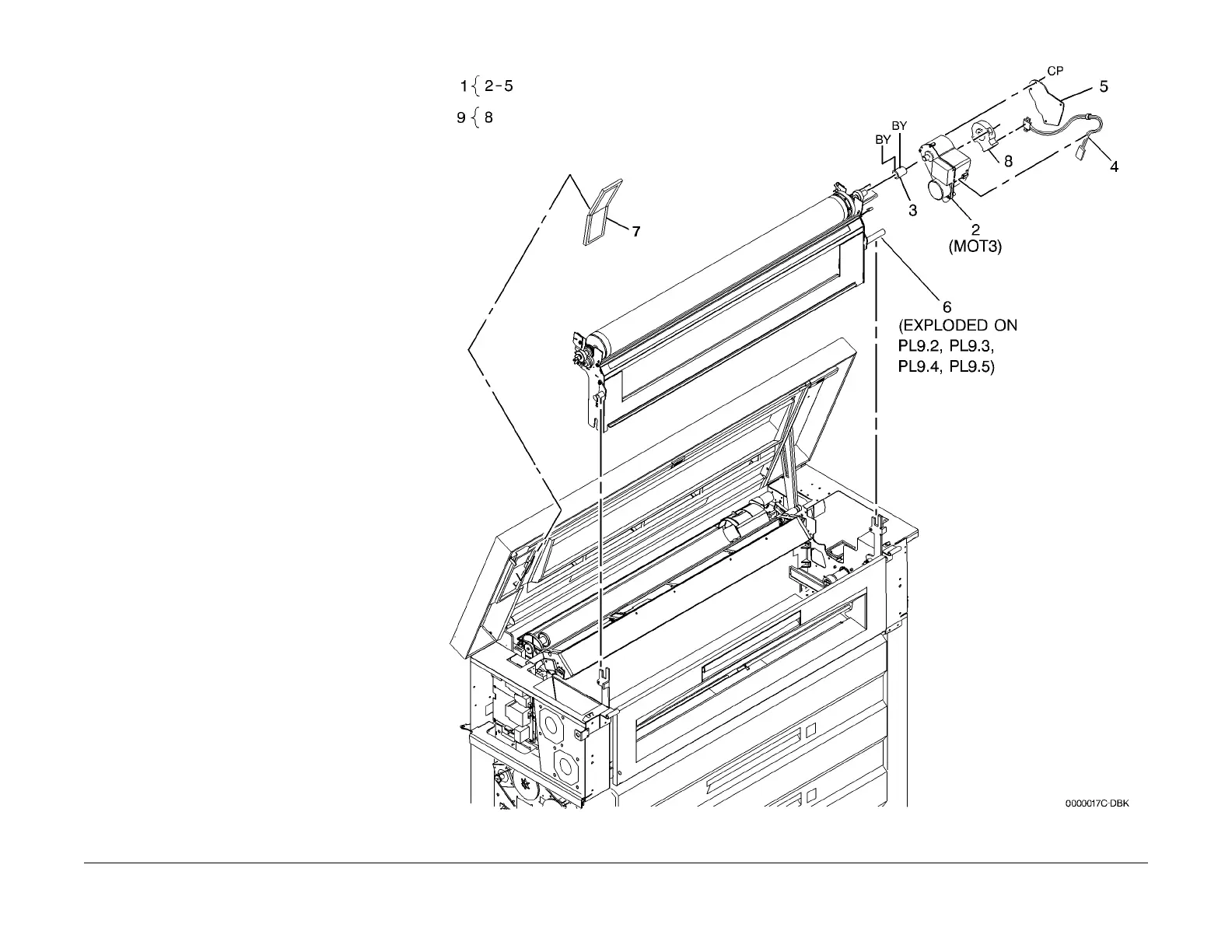

PL 9.1 Xerographic Module Assembly
Item Part Description
1 127K44210 Drum Drive Assembly
2 – Drum Drive Motor (MOT3) (P/O PL
9.1 Item 1)
3 005K04151 Coupling
4 – Encoder Harness (P/O PL 9.1 Item
1)
5– Cover (P/O PL 9.1 Item 1)
6 – Xerographic Module Assembly (Not
Spared) (REP 9.1)
7 053E04750 Ozone Filter (510dp REP 9.25)
8 – Encoder (P/O PL 9.1 Item 9) (REP
9.23, ADJ 8.1)
9 604K13460 Encoder Kit
To Next Page
