Xerox 8850 Service Manual

03/2003
4-63
8850/ 510DP
REP 9.4
Repairs and Adjustments
REP 9.4 Cleaner Blade Kit
NOTE: These are the instructions to install the Cleaner Blade Kit. The kit contains the following
items:
• Right-hand Seal (57 mm wide)
• Left-hand Seal (41 mm wide)
• Cleaner Blade
• Photoreceptor Seal
• Blade Retainer (3)
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
NOTE: In the following steps, the terms “Left” and “Right” describe machine locations as
observed when facing the Printer from the Roll Media Supply Drawer side of the Printer.
1. Remove the Drum Assembly (REP 9.2).
2. (Figure 1): Remove the Photoreceptor Seal, Right-hand Seal, Left-hand Seal, Cleaner
Blade, and the three Blade Retainers from the Xerographic Module.
3. Use a vacuum cleaner to clean the channels and the areas where the new parts will be
installed.

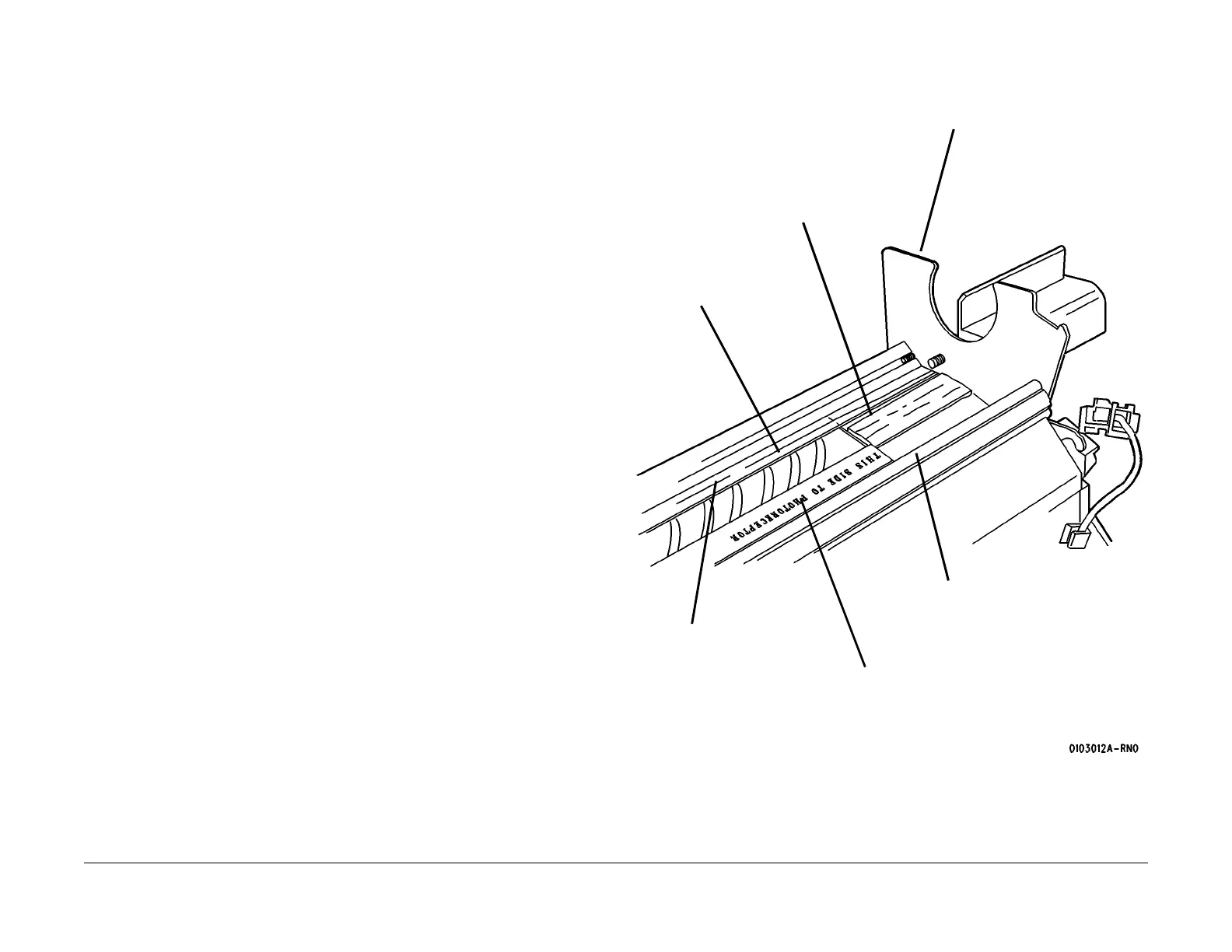

Figure 1 Removing the Cleaner Blade
Cleaner Blade
Photoreceptor
Seal Channel
Photoreceptor Seal
Right-hand Seal
Xerographic Module
Frame
Blade Retainer (3)
