03/2003
4-15
8850/ 510DP
REP 7.6, REP 7.7
Repairs and Adjustments
REP 7.6 Rewind Clutch
Parts List on PL 7.2
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Loosen the screws and open the Rear Door.
2. (Figure 1): Remove the Rewind Clutch.

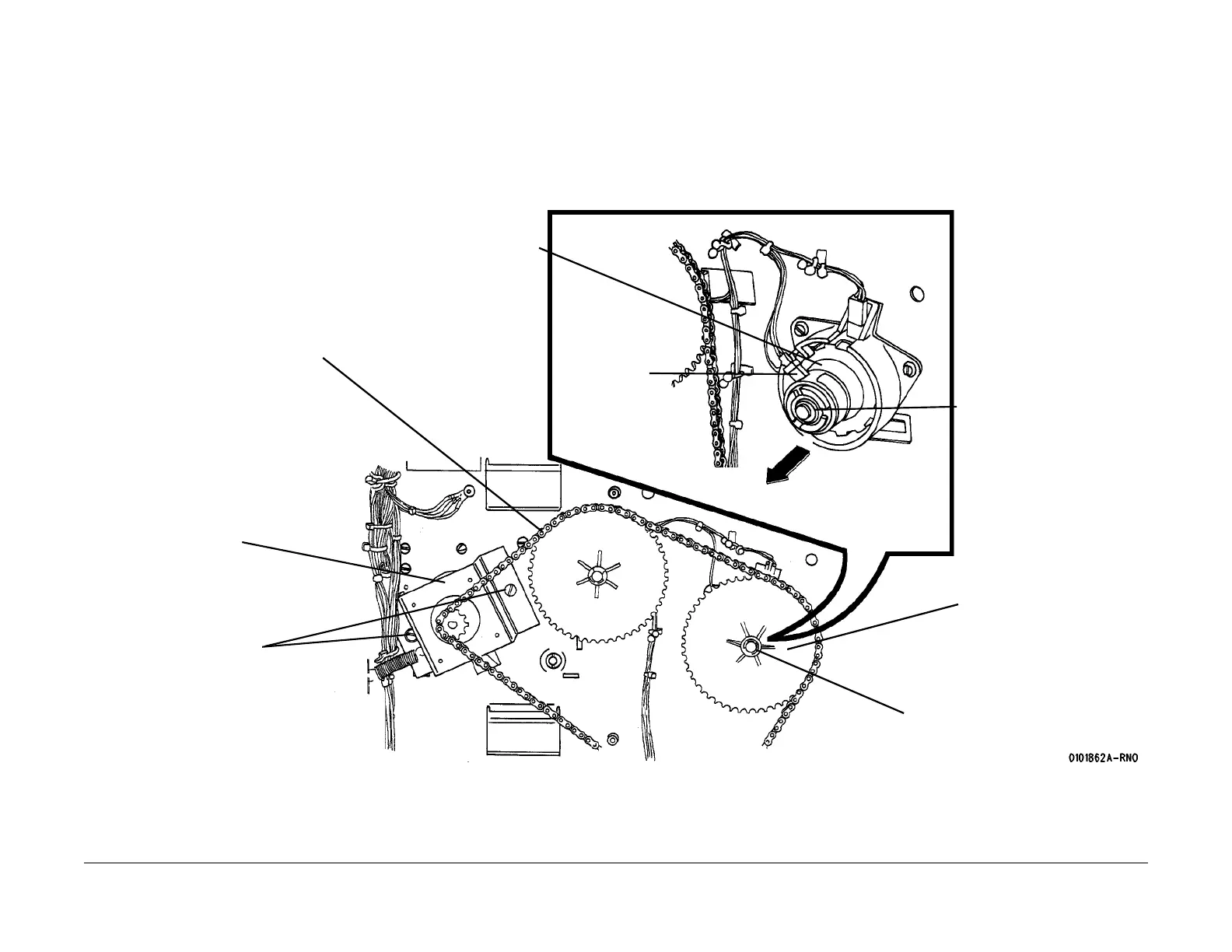

Figure 1 Removing the Rewind Clutch
REP 7.7 Motion Sensor
2
Move the Motor Bracket to
relieve the tension on the
chain
1
Loosen the screws (2)
3
Remove the chain
4
Remove the E-ring
5
Remove the sprocket
7
Remove the E-ring
8
Remove the Rewind Clutch
6
Disconnect the
connector
To Next Page
