03/2003
5-26
8850/ 510DP
PL 9.4
Parts Lists

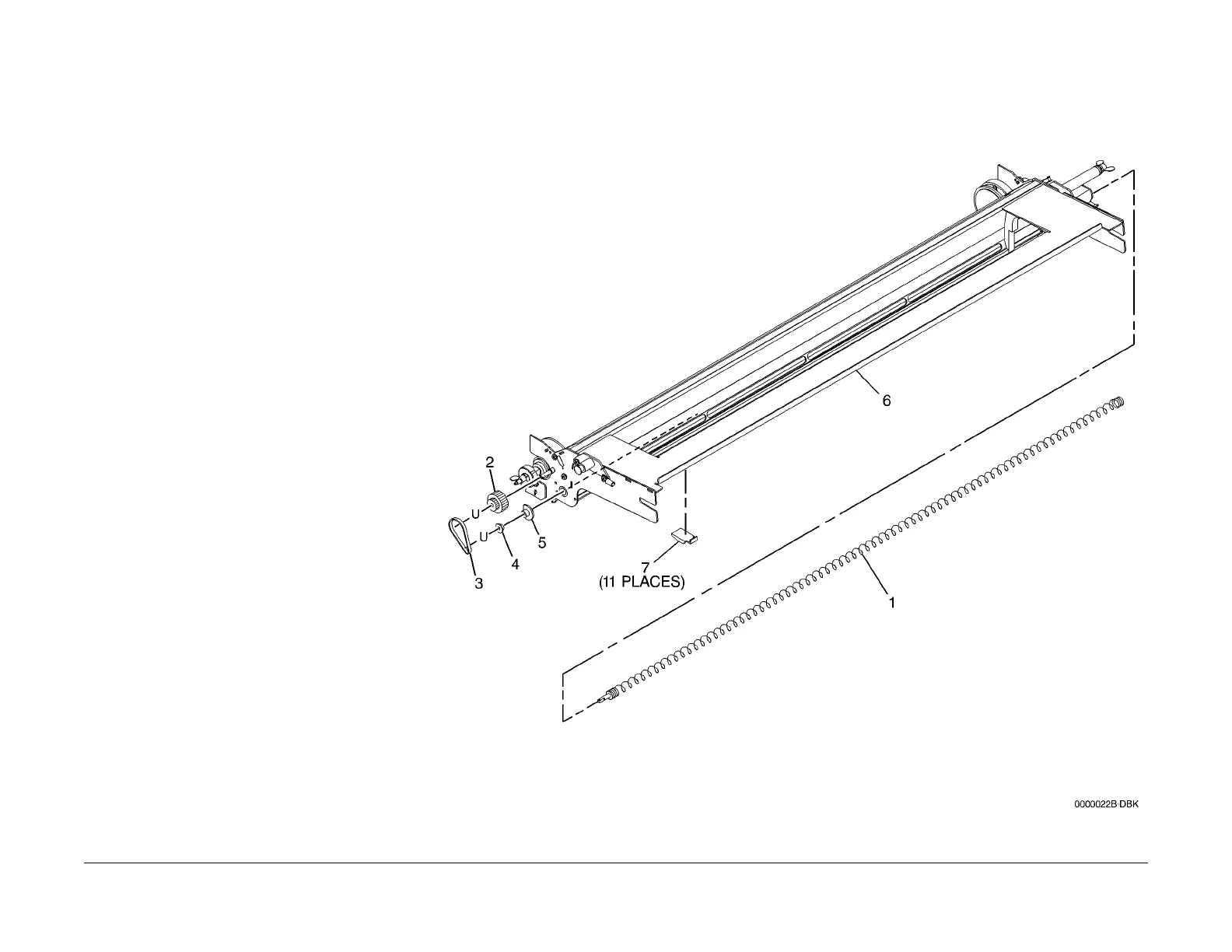

PL 9.4 Drum Cleaning (Part 2 of 3)
Item Part Description
1 094K00085 Waste Toner Auger
2 007E05221 Drum Drive Gear
3 023E01620 Auger Drive Belt
4 020E04350 Auger Pulley
5 013E00803 Auger Bearing
6 – Xerographic Frame (P/O PL 9.1
Item 6)
7 038K04860 Media Guide
