Xerox 8850 Service Manual

03/2003
4-88
8850/ 510DP
REP 9.13
Repairs and Adjustments
REP 9.13 Sump Shield
Parts List on PL 9.7
WARNING
Switch off the Main Power Switch. Disconnect the Power Cord.
Removal
1. Remove the Developer Module and Toner Cartridge (REP 9.5).
2. (Figure 1): Remove the Sump Shield.

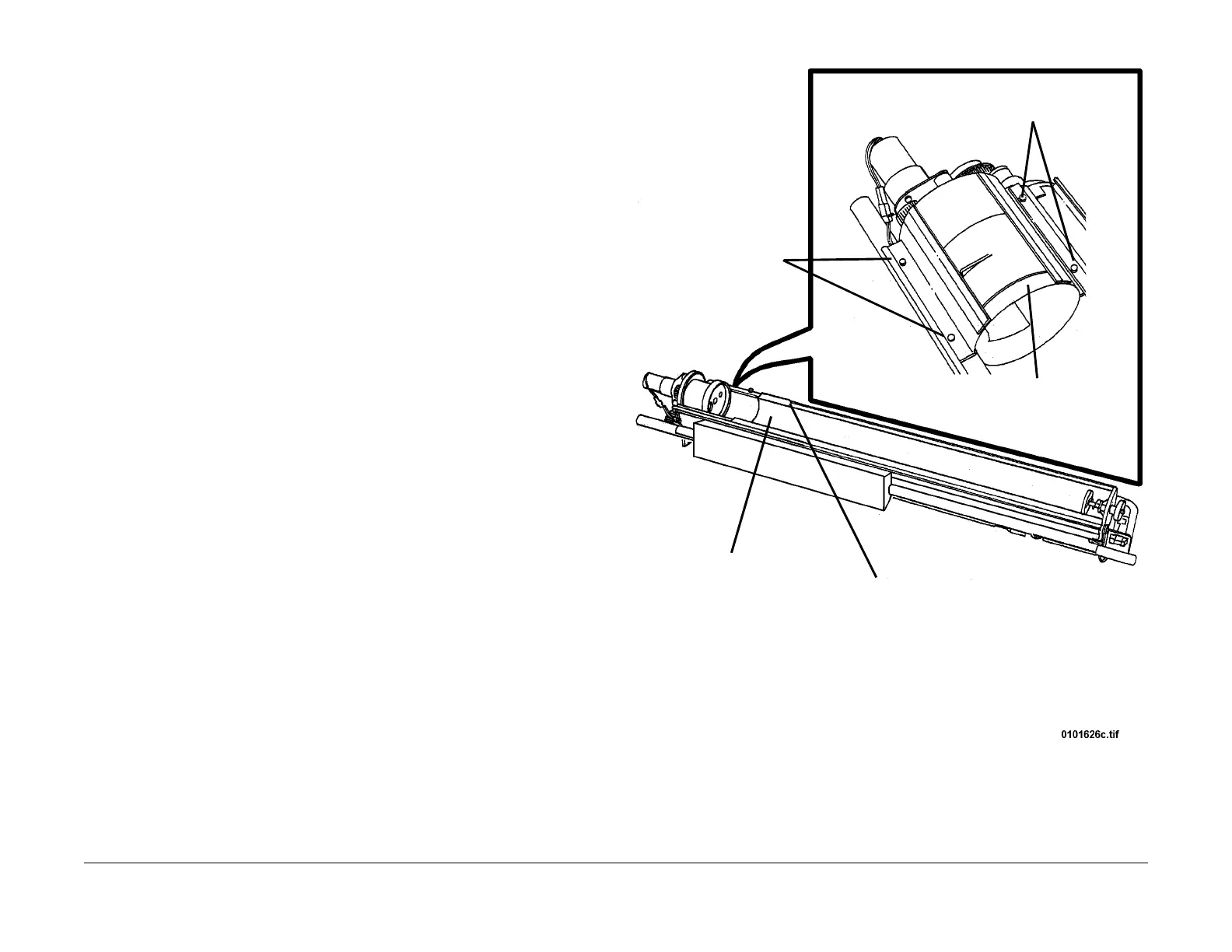

Figure 1 Removing the Sump Shield from the Developer Module
3
Remove the Top
Shield
2
Loosen the two screws
1
Remove the two
screws
5
Remove the Sump
Shield from the Printer
4
Remove the Sump
Shield from under the
edge (full length)
